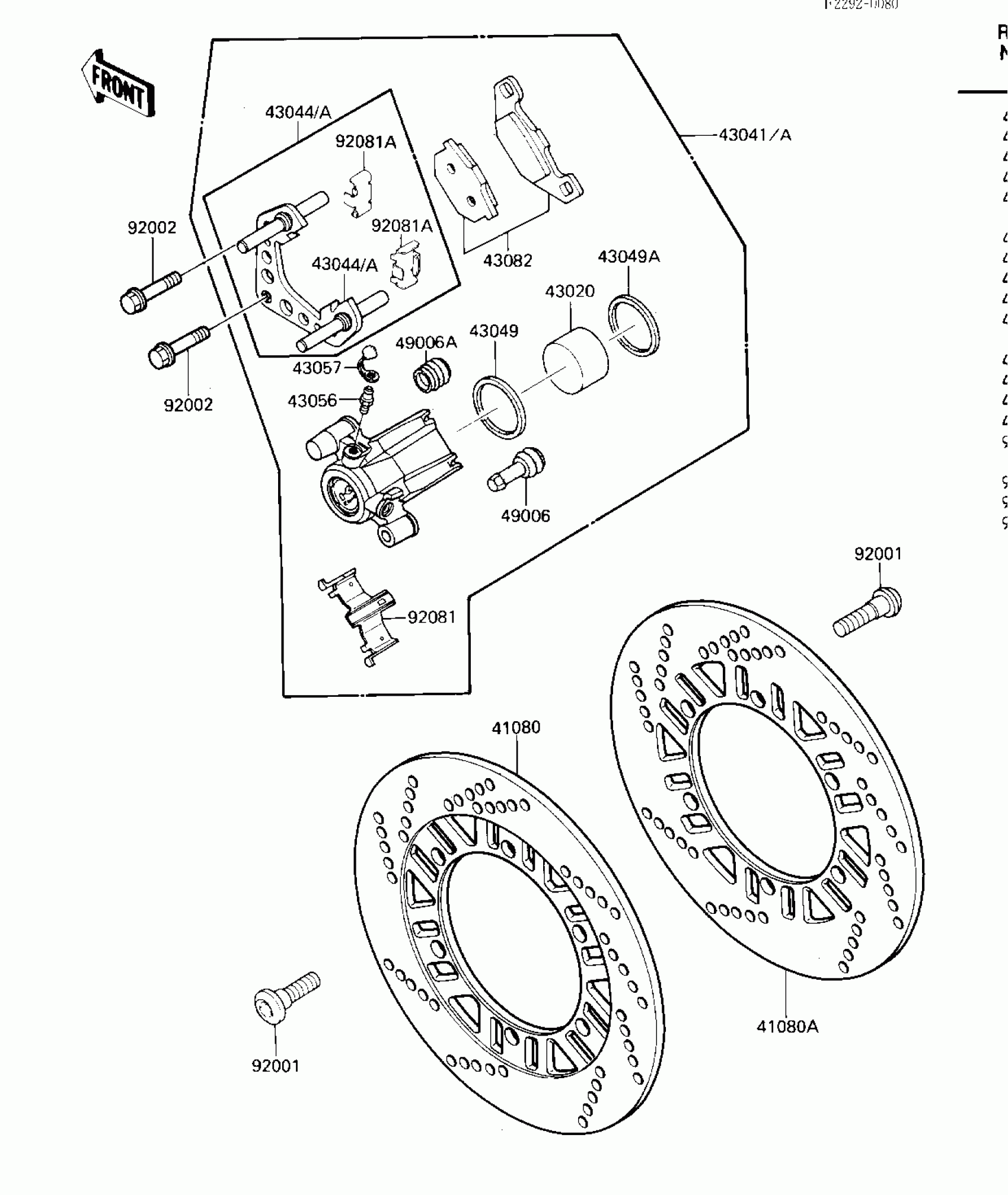

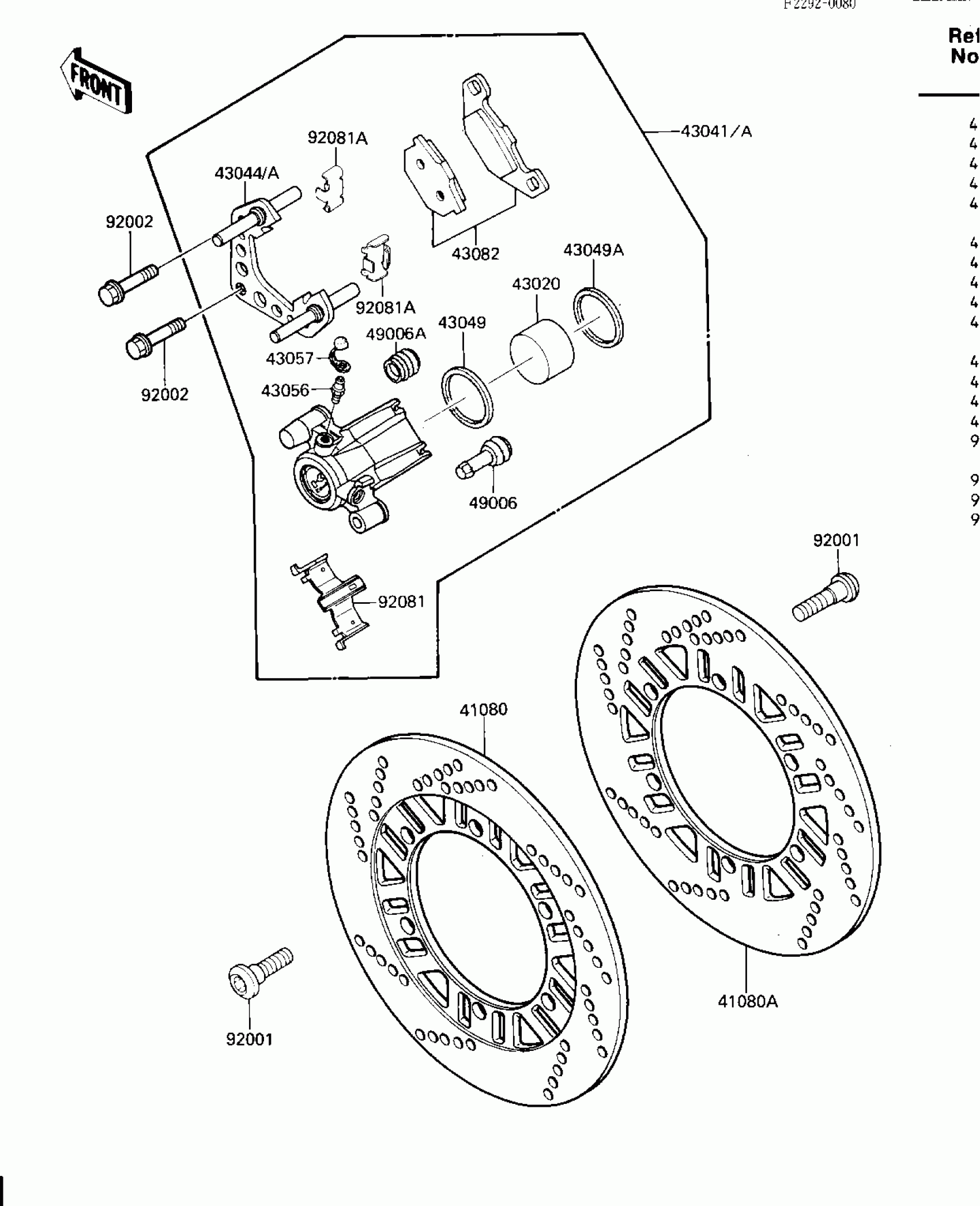

Kawasaki Ninja® 600 FRONT BRAKE Diagram

Description

Price

41080

DISC,FR,LH

41080-1149

$566.10

41080A

DISC,FR,RH

41080-1150

$566.10

43020

PISTON-COMP-BRAKE

43020-1066

$93.03

43041

CALIPER-ASSY,FR,LH

43041-1194

$472.44

43041A

CALIPER-ASSY,FR,RH

43041-1471

$405.14

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1035

$172.92

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1036

$169.84

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,PISTON

43049-1028

$9.61

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1061

$53.01

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92002

BOLT,FLANGED,10X41

92002-1468

$6.75

92081

SPRING,PAD

92081-1525

$14.69

92081A

SPRING,PAD STOPPER

92081-1661

$9.22
