1986 Kawasaki Ninja® 600 Oil Pump/oil Filter Diagram

← All diagrams

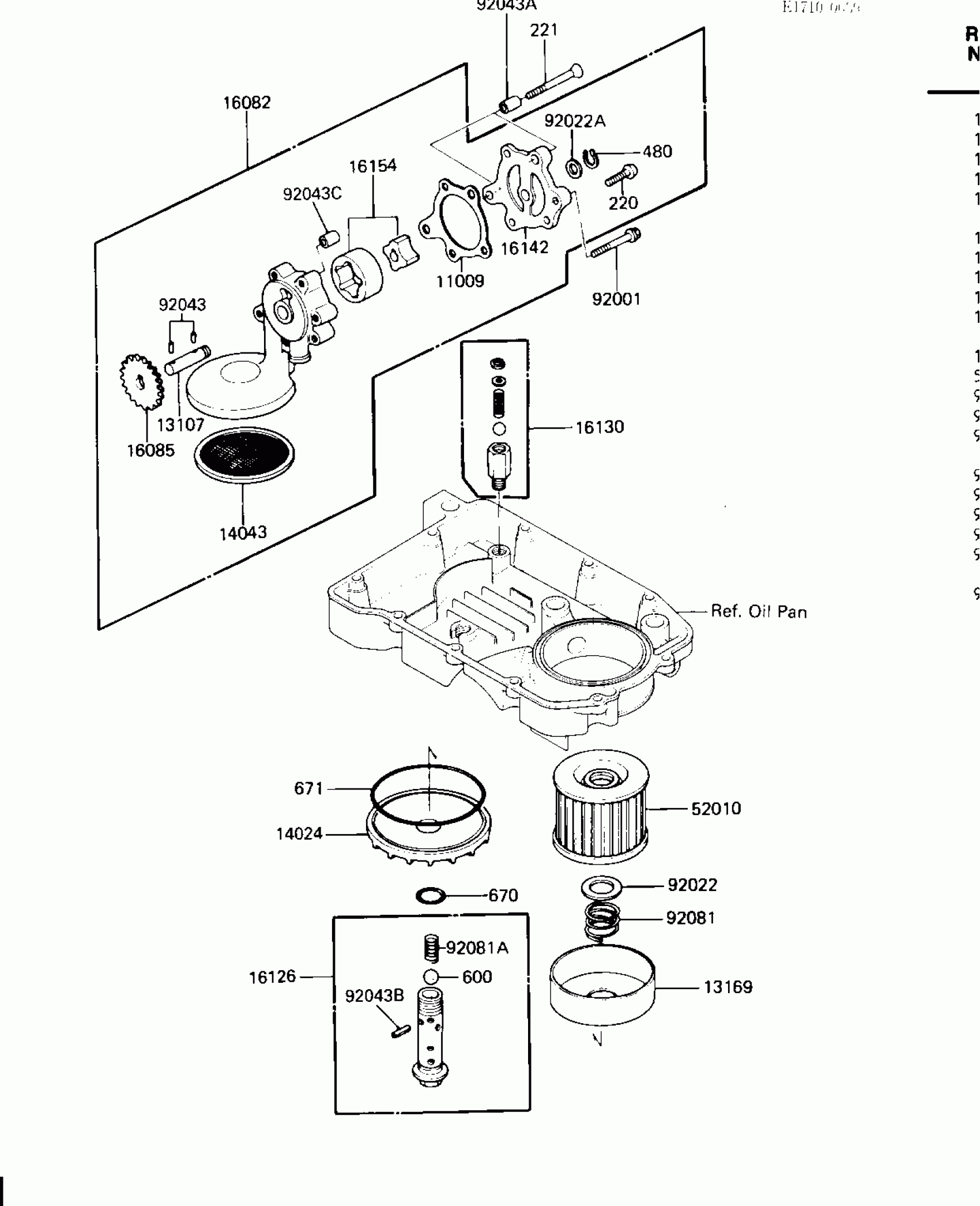

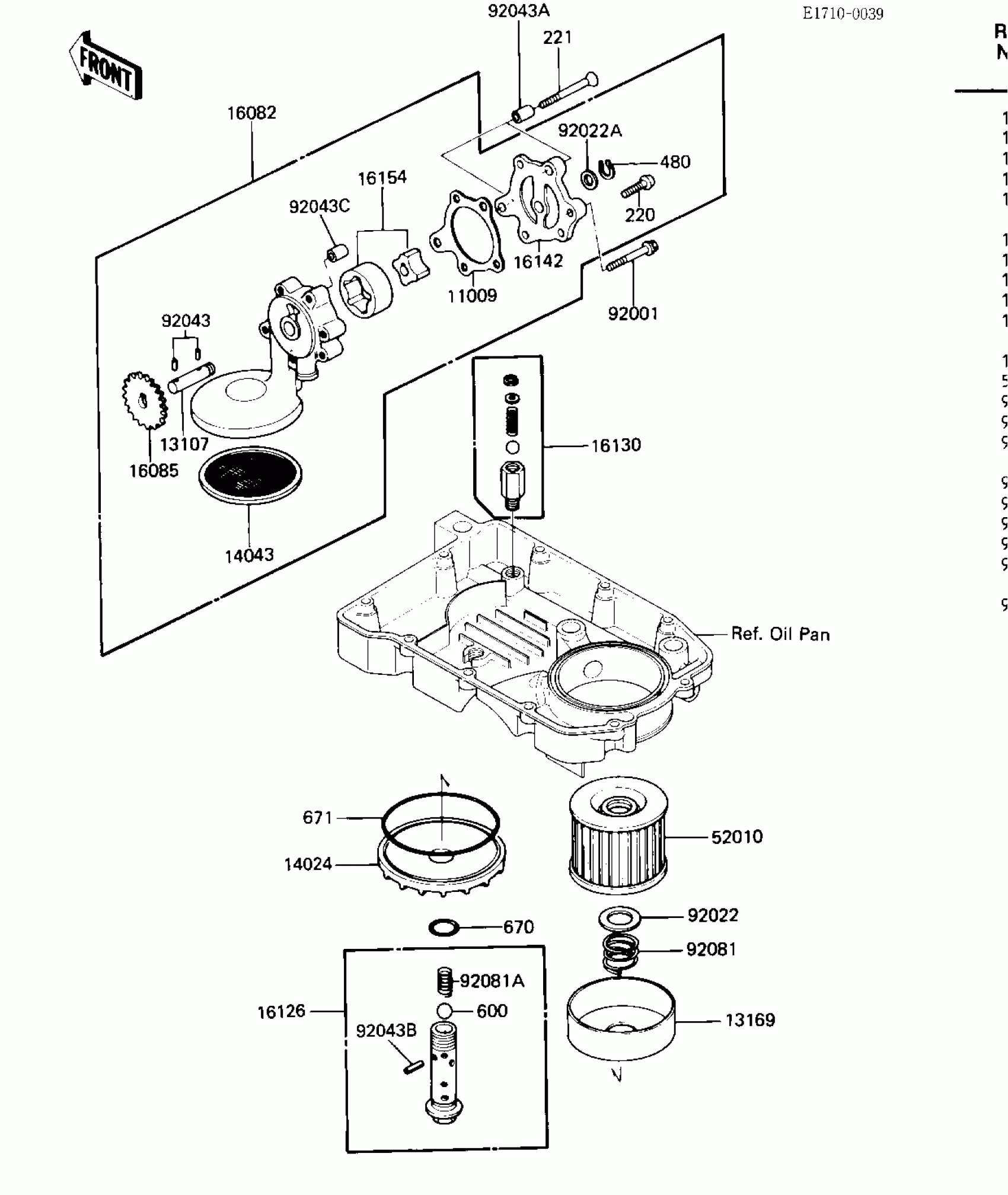

Find the part on the Oil Pump/oil Filter diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PUMP COVER

16145-004

1
Out of stock

13107

SHAFT,OIL PUMP

16086-004

1
Out of stock

13169

PLATE,OIL FILTER

13169-1110

1
Out of stock

14024

COVER,OIL FILTER

16101-004

1
Out of stock

14043

FILTER,OIL PUMP

16111-004

1
Out of stock

16082

PUMP-ASSY-OIL

16082-064

1
Out of stock

16085

GEAR,OIL PUMP,57T

16085-025

1
Out of stock

16126

VALVE,OIL FILTER

16126-1108

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

16142

COVER-PUMP

16142-005

1
Out of stock

16154

ROTOR-PUMP

16154-003

1
Out of stock

52010

ELEMENT-OIL FILTER

16099-003

1
Out of stock

92001

BOLT,FLANGED,6X45

92001-165

1
Out of stock

92022

WASHER,20.5X30X1

92022-1012

1
Out of stock

92022A

WASHER,11.2X15X1

92022-311

1
Out of stock

92043

PIN,DOWEL,4X12.8

92042-041

1
Out of stock

92043A

PIN,DOWEL,8X28

92042-050

1
Out of stock

92043B

PIN,SPRING,2X20

92043-111

1
Out of stock

92043C

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92081

SPRING,OIL FILTER

92081-1018

1
Out of stock

92081A

SPRING

92081-109

1
Out of stock

220

SCREW PAN HEAD 6X22

220B0622

1
Out of stock

221

SCREW-CSK-CROS,6X55

221B0655

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

600

BALL-STEEL,3/8"

600A1200

1
Out of stock

670

O RING,16MM

670B2016

1
Out of stock

671

O RING,90MM

671B2590

1
Out of stock
