1986 Kawasaki Ninja® 600 Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

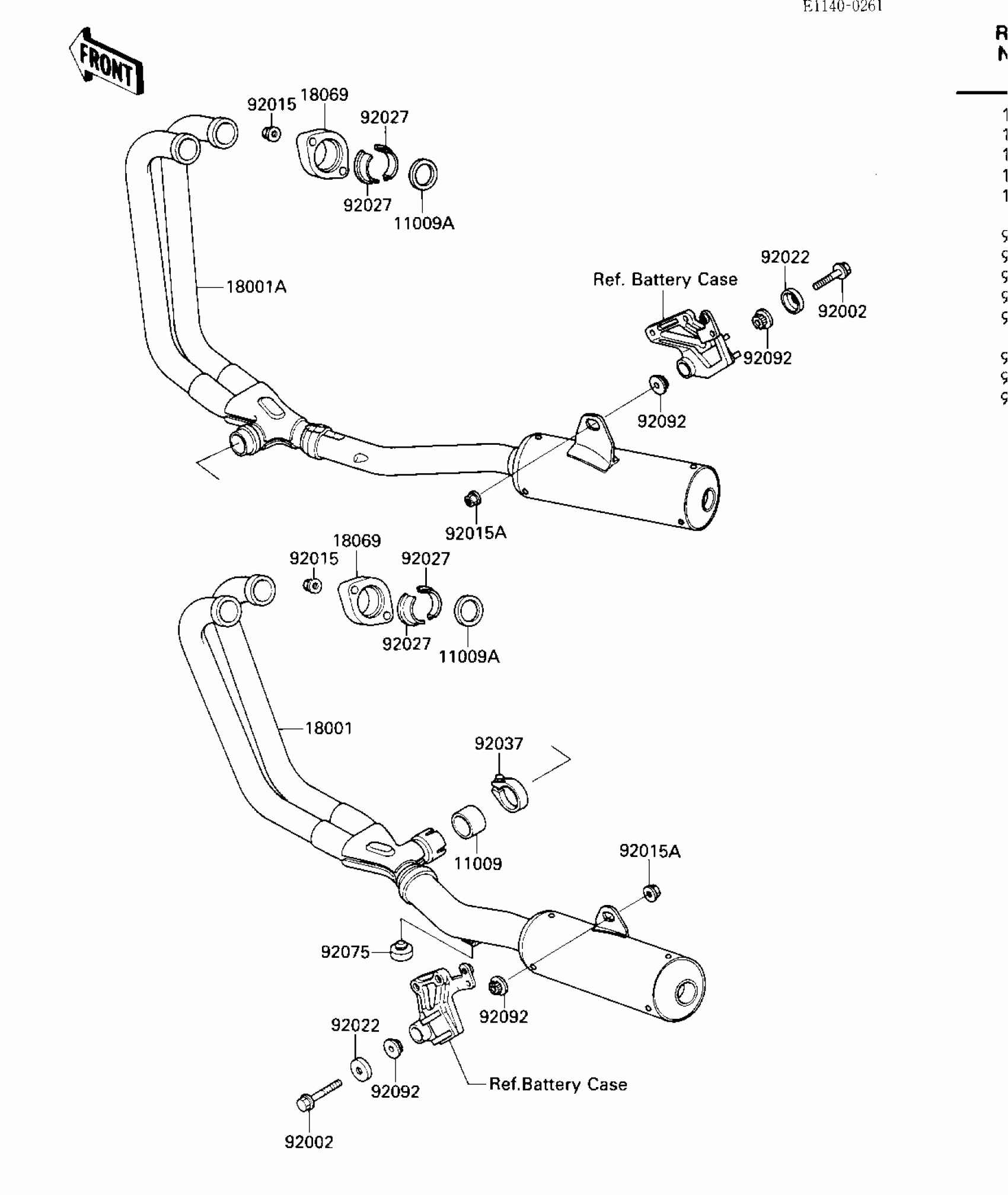

1986 Kawasaki Ninja® 600 Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$24.28

In stock

11009A

1

$6.55

In stock

18001

MUFFLER,LH

18001-1572

1

$506.88

In stock

18001B

MUFFLER,RH

18001-1573

1

$506.88

In stock

18069

HOLDER-EXHAUST PIPE

18069-1025

1

$22.27

In stock

92002

BOLT,10X55

92002-1127

1

$9.27

In stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92015A

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92022

WASHER

92022-289

1
Out of stock

92027

COLLAR

92027-1365

1

$7.14

In stock

92037

1

$9.70

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$13.70

In stock
