1986 Kawasaki Ninja® 600 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

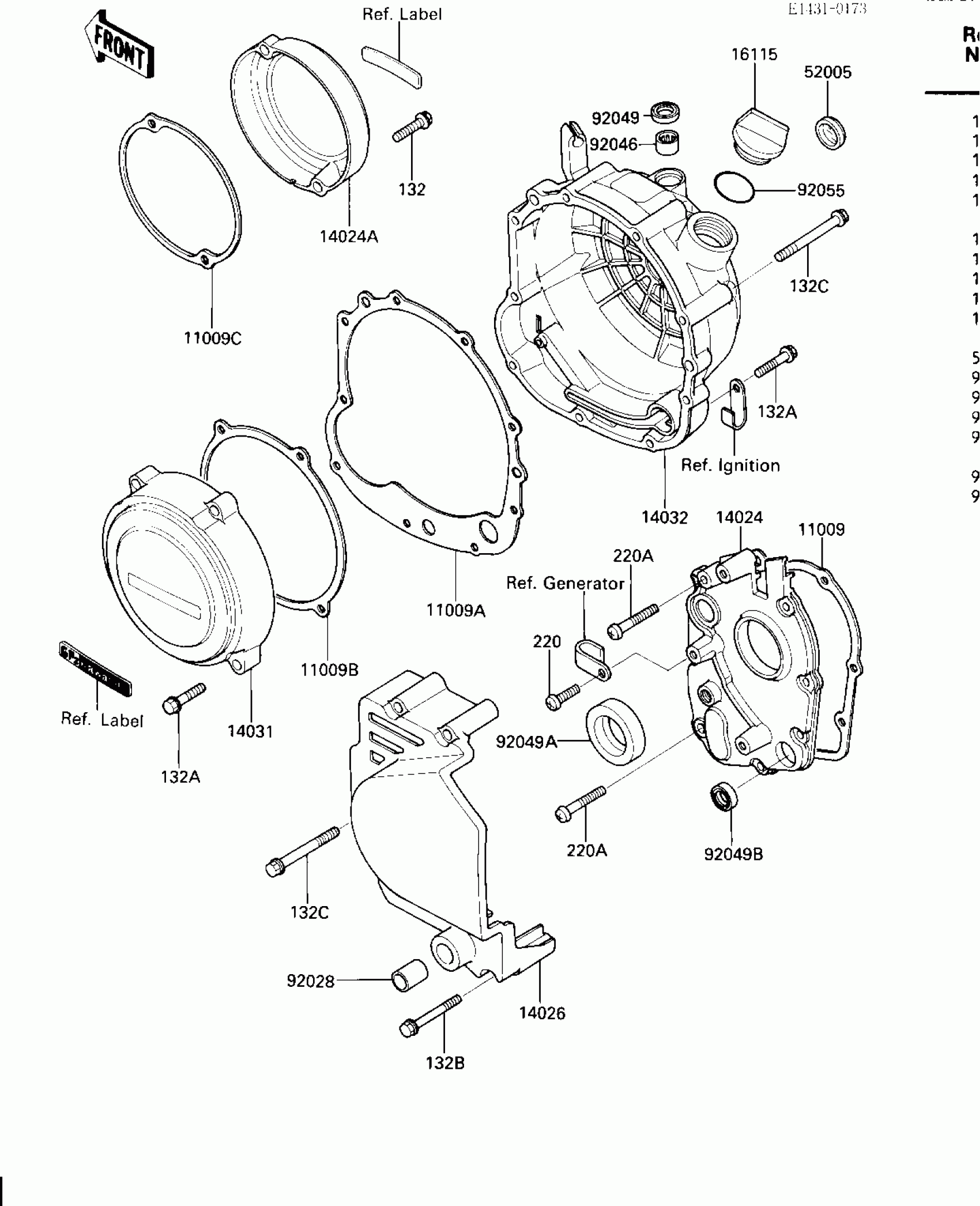

1986 Kawasaki Ninja® 600 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TRANSMISSION COVER

11060-1056

1
Out of stock

11009A

GASKET,CLUTCH COVER

11060-1148

1

$32.84

In stock

11009B

1

$14.31

In stock

11009C

GASKET,PULISING COIL

11060-1151

1
Out of stock

14024

COVER,TRANSMISSION

14025-1700

1
Out of stock

14024A

COVER,PULSING COIL

14025-1709

1
Out of stock

14026

COVER-CHAIN

14026-1134

1
Out of stock

14031

COVER-GENERATOR

14031-1178

1
Out of stock

14032

COVER-CLUTCH

14032-1257

1

$275.38

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92028

BUSHING,13X15X20

92028-1251

1

$12.03

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92049A

SEAL-OIL,SC325210

92050-024

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X60

132J0660

1
Out of stock

220

1

$4.61

In stock

220A

SCREW PAN HEAD 6X40

220B0640

1
Out of stock
