1997 Kawasaki Ninja® 500R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1997 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

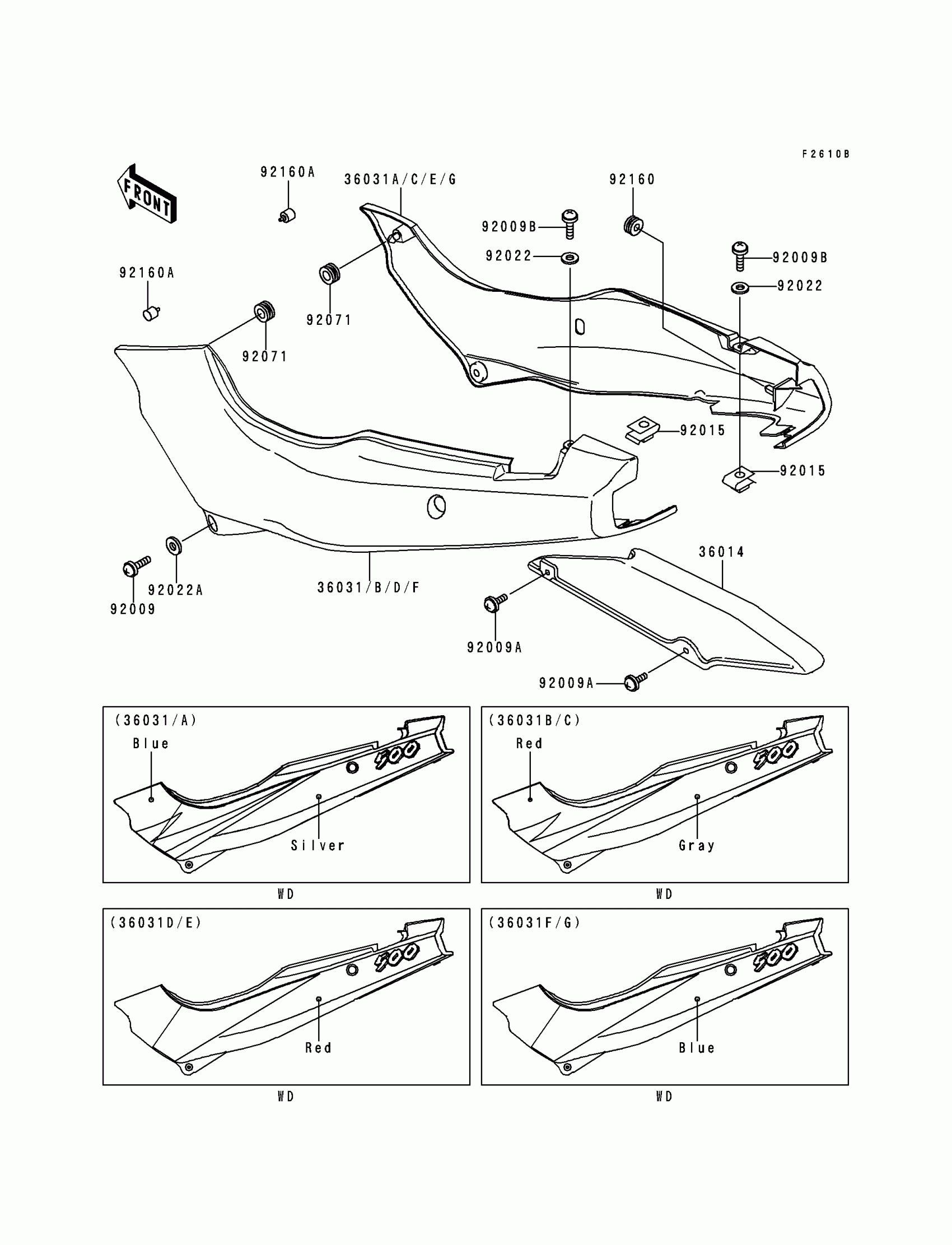

1997 Kawasaki Ninja® 500R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-1164

1

$111.51

In stock

36031D

COVER-SIDE,LH,F.RED

36031-5117-B1

1

$450.27

In stock

36031E

COVER-SIDE,RH,F.RED

36031-5118-B1

1
Out of stock

36031F

COVER-SIDE,LH,L.P.BLUE

36031-5119-35

1
Out of stock

36031G

COVER-SIDE,RH,L.P.BLUE

36031-5120-35

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,6X10

92009-1402

1
Out of stock

92009B

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,5MM

92015-1710

1

$4.93

In stock

92022

1

$3.12

In stock

92022A

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92160A

DAMPER

92160-1555

1

$8.03

In stock
