1998 Kawasaki Ninja® 500R Rear Wheel/chain Diagram

← All diagrams

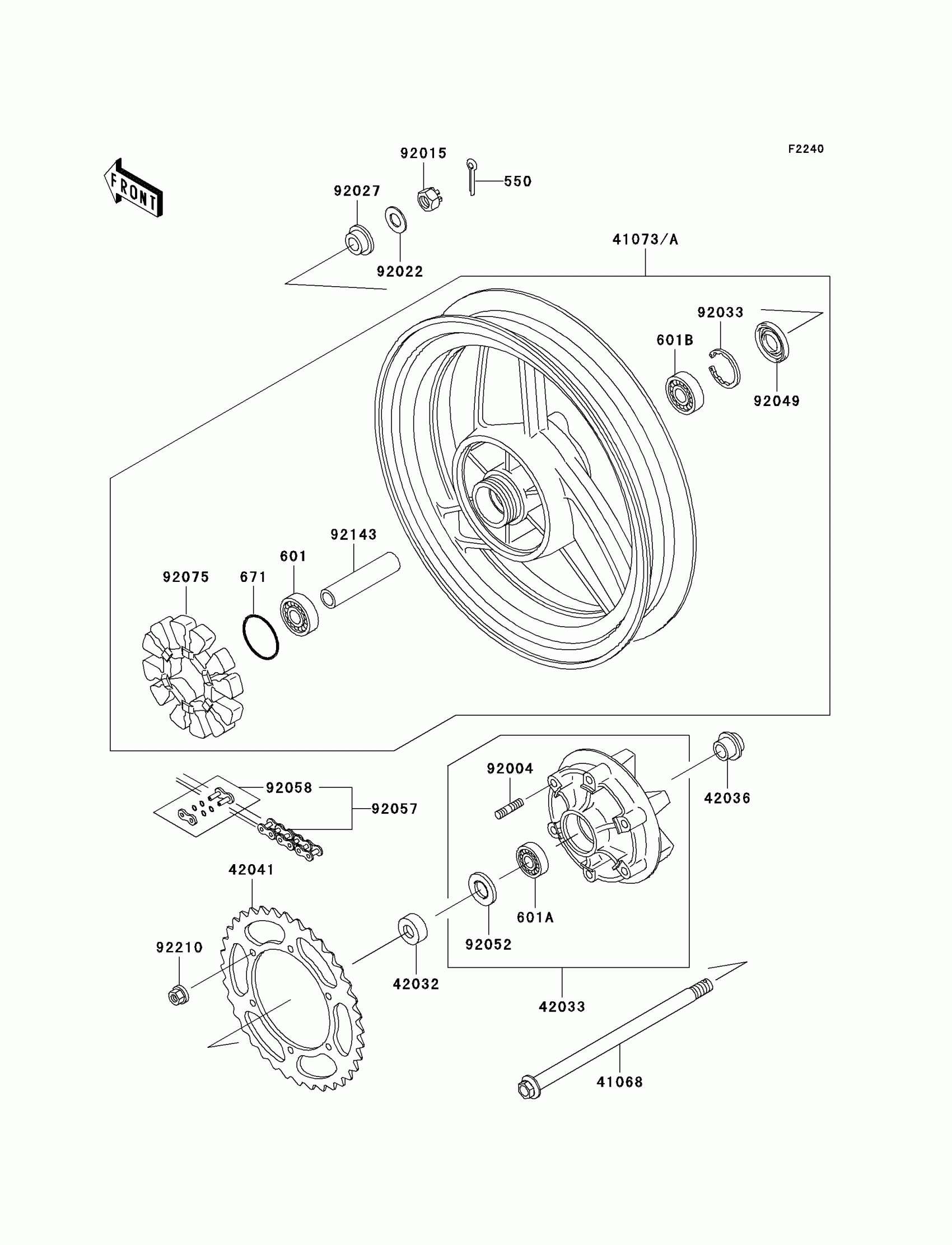

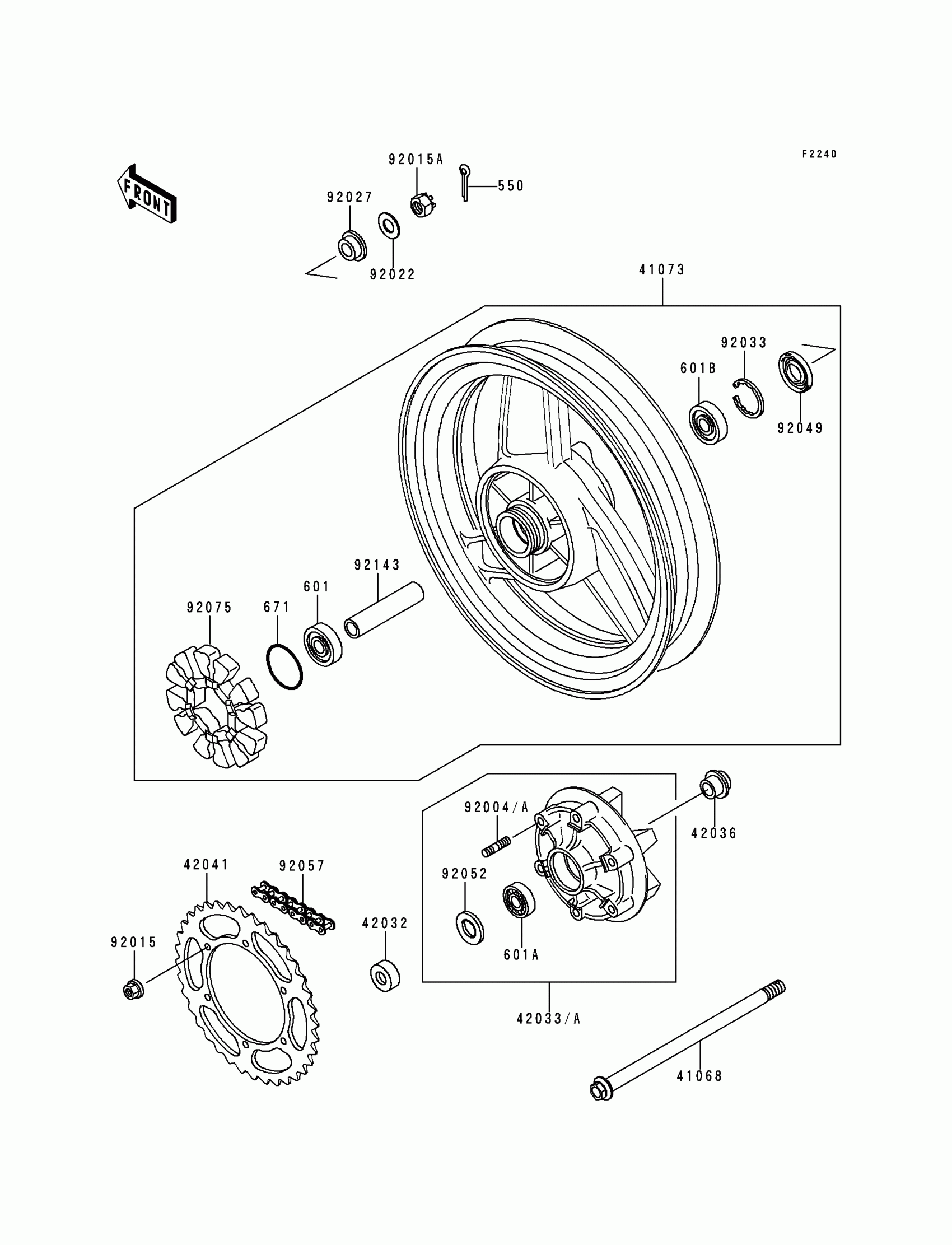

Find the part on the Rear Wheel/chain diagram for your 1998 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki Ninja® 500R Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

671

O RING

671B2550

1
Out of stock

41068

AXLE,RR

41068-1223

1
Out of stock

41073

WHEEL-ASSY,RR,G.GRAY

41073-1474-GE

1
Out of stock

42032

COLLAR,RR AXLE,L=13

42032-063

1
Out of stock

42033A

COUPLING-ASSY,RR HUB,M.SILVER

42033-1191-7J

1
Out of stock

42036

SLEEVE,RR HUB,L=30

42036-1055

1
Out of stock

42041

SPROCKET-HUB,41T

42041-1354

1
Out of stock

92004A

STUD,10X19

92004-1151

1
Out of stock

92015

NUT,10MM

92015-1720

1
Out of stock

92015A

NUT,CASTLE,16MM

92015-1947

1
Out of stock

92022

WASHER,17.5X34X2.0

92022-1916

1
Out of stock

92027

COLLAR,RR HUB

92027-1785

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK520SX-OX104L

92057-1296

1
Out of stock

92075

DAMPER,RR HUB SHOCK

92075-1436

1
Out of stock

92143

COLLAR,RR HUB,L=111

92143-1416

1
Out of stock
