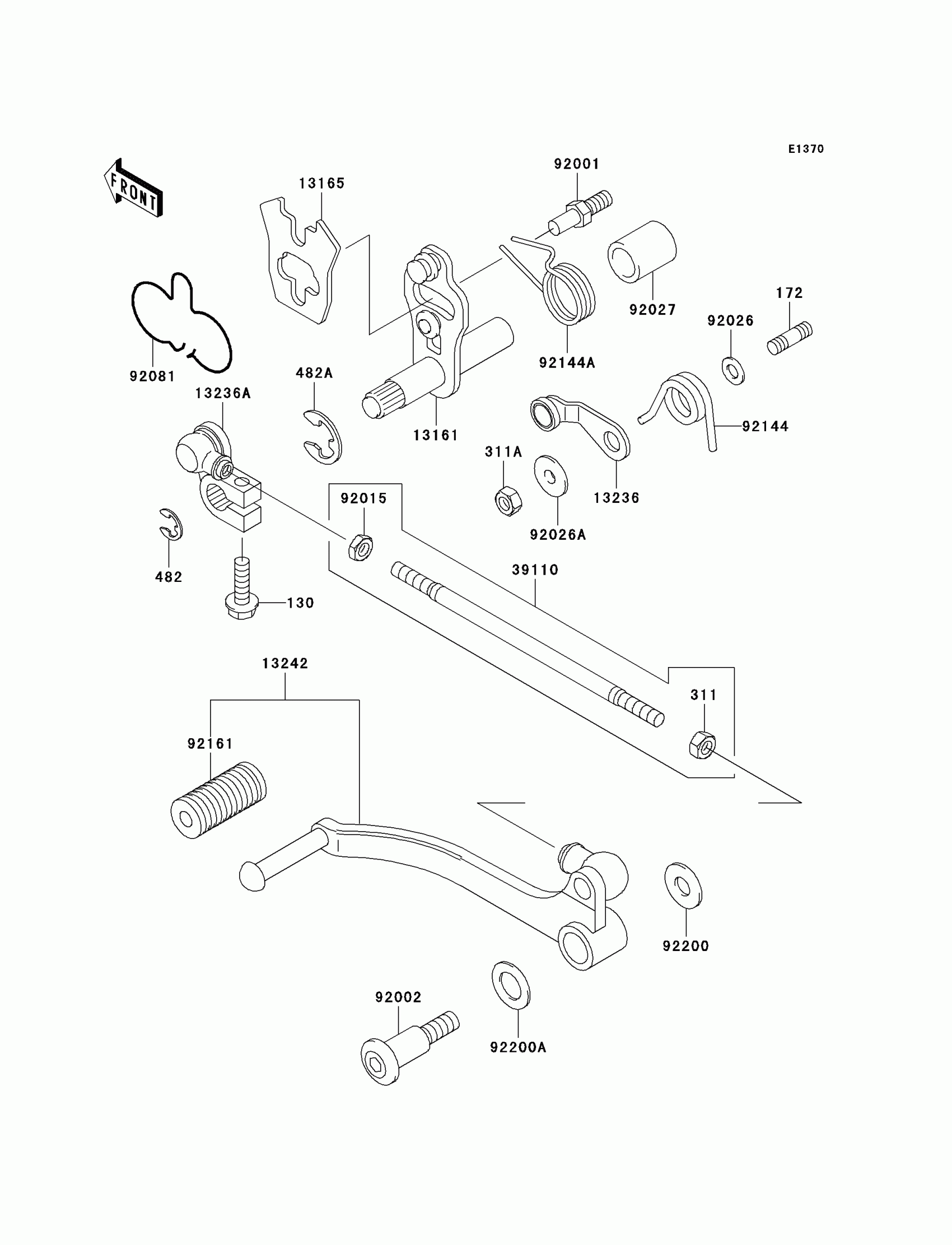

Kawasaki Ninja® 500R Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

172

BOLT-STUD,6X14

172G0614

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

311A

NUT-HEX

311J0600

Unavailable

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

482A

CIRCLIP-TYPE-E

482L7000

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1117

$68.34

13165

PAWL,CHANGE LEVER

13165-1034

$9.56

13236

LEVER-COMP,GEAR POSITION

13236-1103

$18.53

13236A

LEVER-COMP,CHANGE PEDAL

13236-1153

Unavailable

13236B

LEVER-COMP,CHANGE LINK

13236-1154

$87.71

39110

ROD-ASSY-TIE

39110-1077

$14.37

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92002

BOLT,CHANGE PEDAL

92002-1926

$12.07

92015

NUT,LEFT HANDED,6MM

92015-1178

$3.85

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92022A

WASHER,8.5X20X1.6

92022-1561

$3.29

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92027

COLLAR,13X18.3X21.5

92027-1440

$4.18

92081

SPRING,CHANGE LEVER

92081-1785

Unavailable

92144

SPRING,POSITION LEVER

92144-1180

$9.47

92144A

SPRING,CHANGE PEDAL RETURN

92144-1644

$9.47

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
