1998 Kawasaki Ninja® 500R Fuel Evaporative System Diagram

← All diagrams

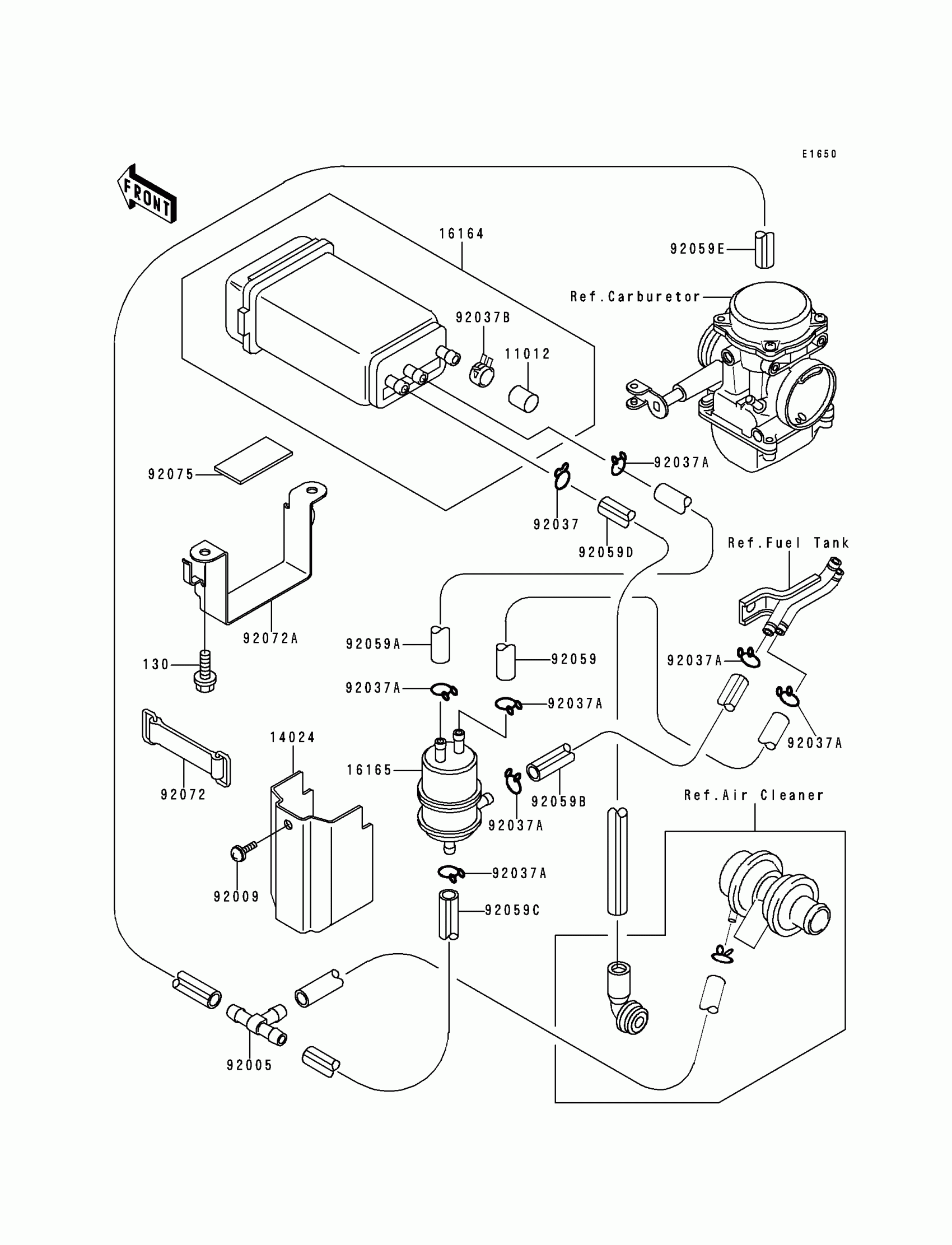

Find the part on the Fuel Evaporative System diagram for your 1998 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki Ninja® 500R Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT

130B0612

1
Out of stock

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

14024

COVER,SEPARATOR

14024-1399

1
Out of stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92059

TUBE,5X10X170,BLUE

92059-1496

1
Out of stock

92059A

TUBE,5X10X320,BLUE

92059-1499

1
Out of stock

92059B

TUBE,5X10X250,RED

92059-1809

1
Out of stock

92059C

TUBE,5X10X380,WHITE

92059-1824

1

$20.29

In stock

92059D

TUBE,7X12X410,GREEN

92059-1825

1

$17.07

In stock

92059E

TUBE,5X10X160,WHITE

92059-1826

1

$32.75

In stock

92072

BAND,L=50

92072-066

1

$12.72

In stock

92072A

BAND,CANISTER

92072-1216

1

$19.68

In stock

92075

DAMPER

92075-1830

1

$4.92

In stock
