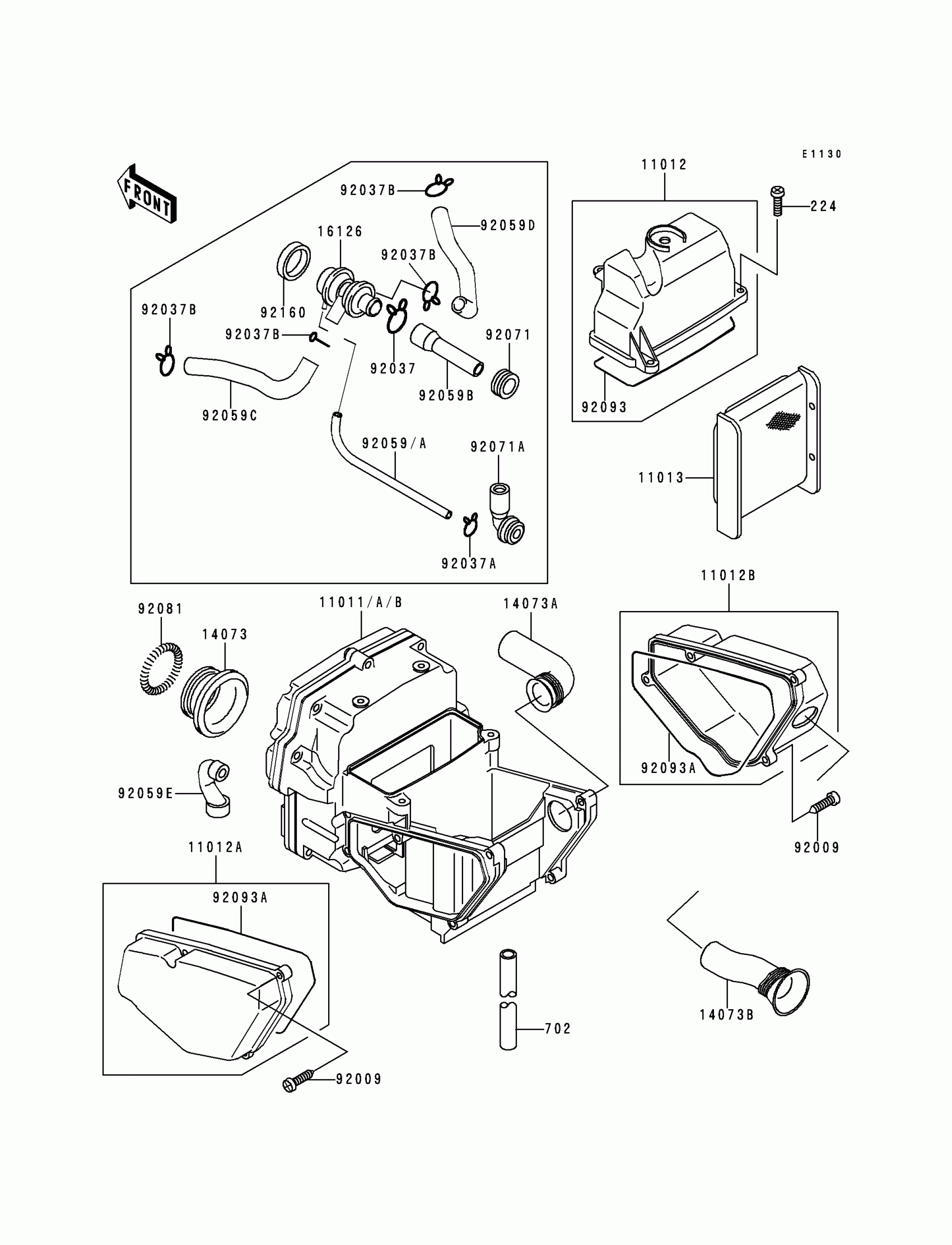

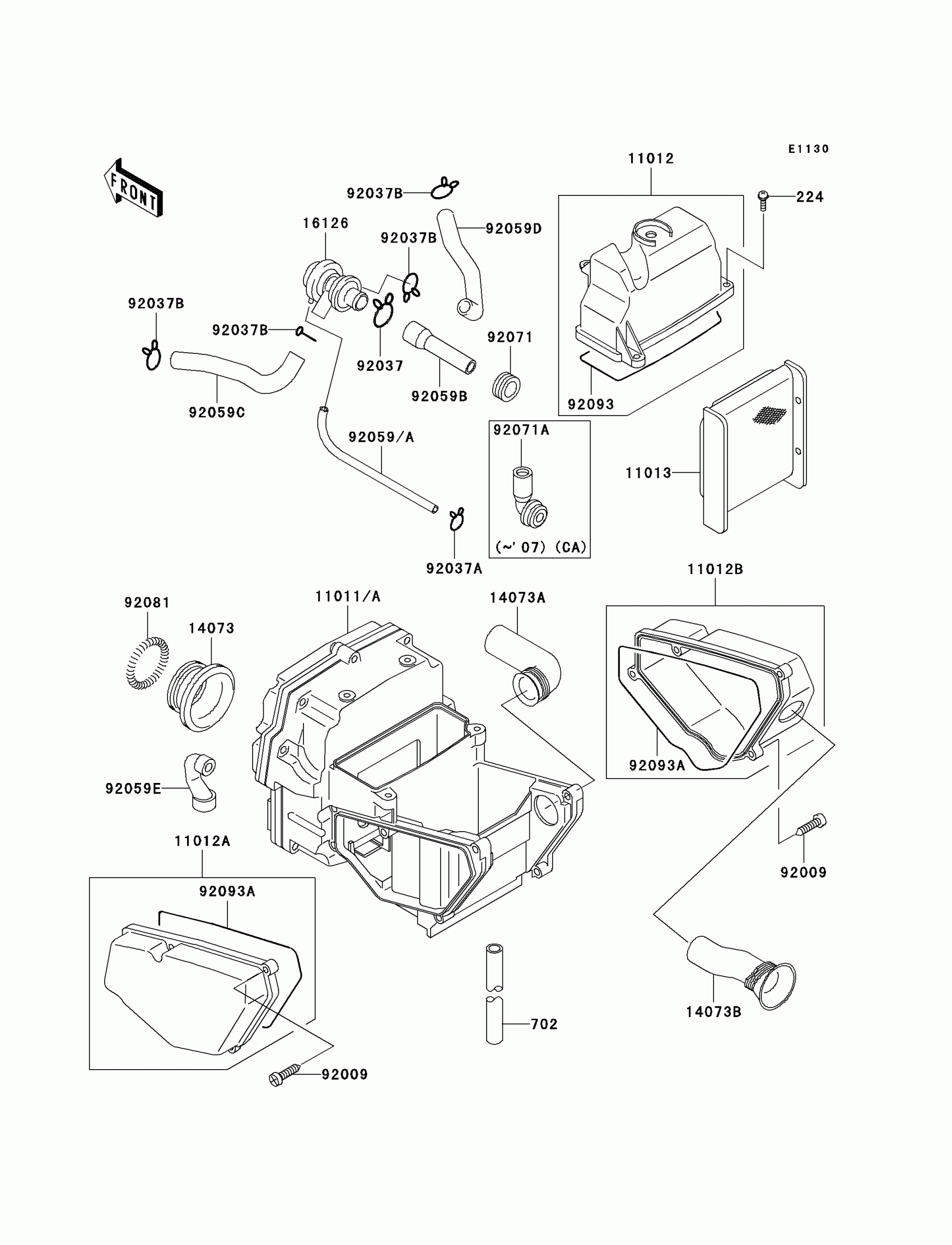

Kawasaki Ninja® 500R Air Cleaner Diagram

#

Description
Price

11012

CAP,AIR FILTER CASE,UPP

11012-1571

$49.77

11012A

CAP,AIR FILTER,LH

11012-1608

$42.95

11012B

CAP,AIR FILTER,RH

11012-1609

$37.46

11013

ELEMENT-AIR FILTER

11013-1252

$37.80

14073

DUCT,CARBURATOR

14073-1292

$25.44

14073A

DUCT,INTAKE

14073-1293

$22.88

14073B

DUCT

14073-1295

$23.47

16126

VALVE,AIR SWITCH

16126-1005

$195.68

92009

SCREW,TAPPING,5X30

92009-1488

$3.66

92037

CLAMP,TUBE

92037-1076

$7.14

92037A

CLAMP

92037-1712

$3.81

92037B

CLAMP,TUBE

92037-213

$3.29

92059B

TUBE,AIR FILTER-ACV

92059-1770

Unavailable

92059C

TUBE,AIR SWITCH,LH

92059-1771

$21.76

92059D

TUBE,AIR SWITCH,RH

92059-1772

Unavailable

92059E

TUBE,BREATHER

92059-1773

$11.29

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92081

SPRING,COIL,BLACK

92081-1457

$8.67

92093

SEAL,AIR FILTER CAP

92093-1233

$9.20

92093A

SEAL,AIR FILTER

92093-1234

$11.44

224

SCREW-PAN-WP-CROS

224B0620

Unavailable

702

TUBE-RUBBER,5X350

702A05350

$29.70

92160

DAMPER,VALVE

92160-1454

$15.95

11011

CASE-AIR FILTER

11011-1268

Unavailable

11011A

CASE-AIR FILTER

11011-1269

$208.68

92059

TUBE,4X9X290

92059-1043

$9.85

92059A

TUBE,4X9X110

92059-1131

Unavailable

92071A

GROMMET,AIR FILTER

92071-1114

$23.73
