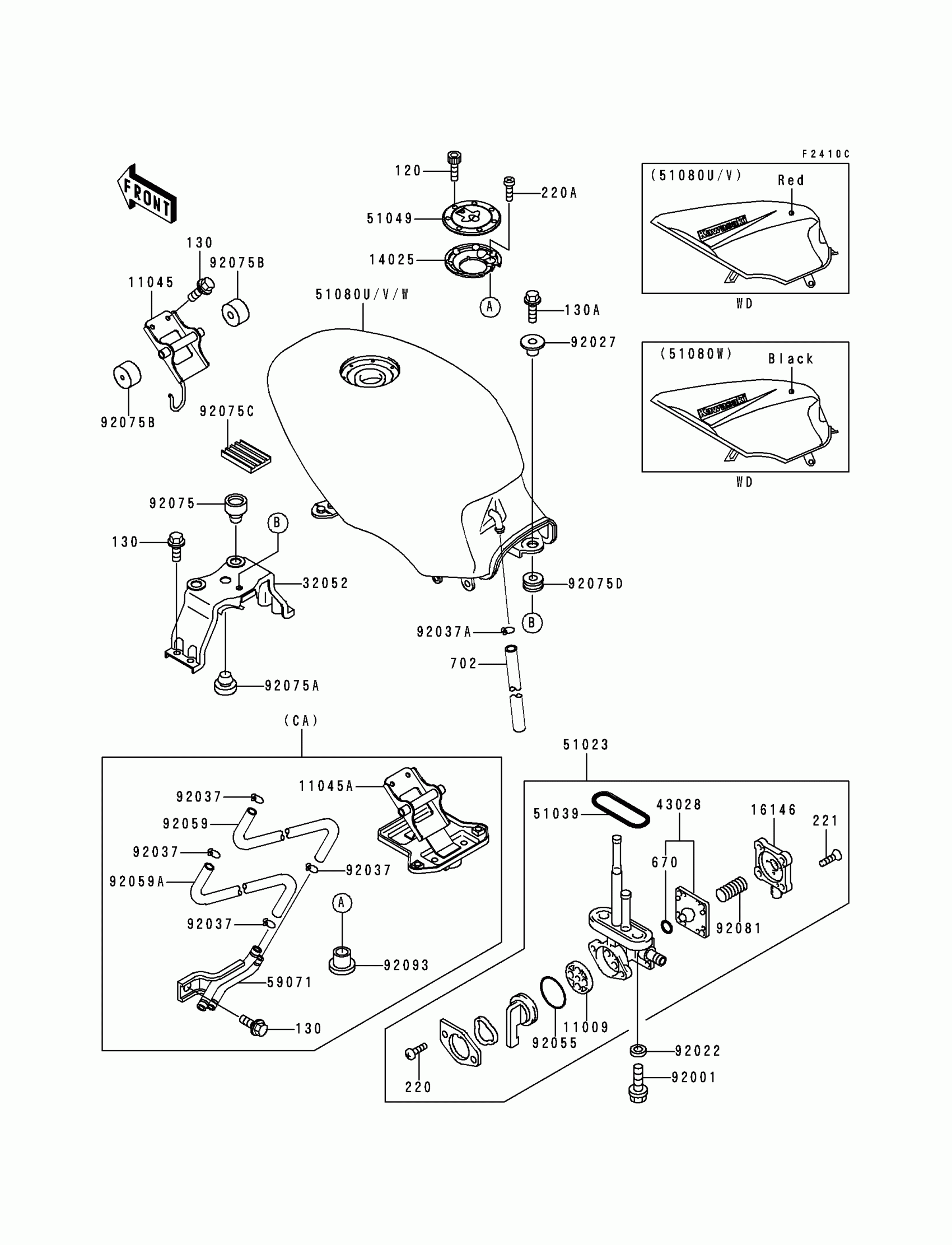

Kawasaki Ninja® 500R Fuel Tank(EX500-D5) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.28

14025

COVER,TANK CAP

14025-1913

$21.55

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

32052

BRACKET-TANK,FUEL,RR

32052-1394

$56.67

43028

DIAPHRAGM

43028-1033

$22.90

51023

TAP-ASSY,FUEL

51023-1142

$112.16

51039

RING,TAP FLANGED

51039-003

$6.27

51049

CAP-TANK,FUEL

51049-1091

$96.17

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.48

220A

SCREW-PAN-CROSS

220C0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$4.11

702

TUBE-RUBBER,7X10X380

702A07380

$10.34

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,L=19.3

92027-1780

$6.57

92037A

CLAMP

92037-1712

$5.00

92055

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER

92075-015

$5.00

92075A

DAMPER

92075-1045

$8.86

92075B

DAMPER,FUEL TANK,FR

92075-1115

$6.57

92075C

DAMPER

92075-1489

$8.94

92075D

DAMPER

92075-1736

$6.57

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

11045

BRACKET,FUEL TANK,FR

11045-1362

$42.53

11045A

BRACKET,FUEL TANK,FR

11045-1389

$73.47

51080U

TANK-COMP-FUEL,C.P.RED

51080-5409-A5

Unavailable

51080V

TANK-COMP-FUEL,C.P.RED

51080-5422-A5

Unavailable

51080W

TANK-COMP-FUEL,BLACK PEARL

51080-5444-B5

Unavailable

130

BOLT

130B0612

Unavailable

130

BOLT

130B0612

Unavailable

59071

JOINT,EVAPO

59071-1122

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92059

TUBE,EVAPO

92059-1767

$10.97

92059A

TUBE,EVAPO

92059-1768

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
