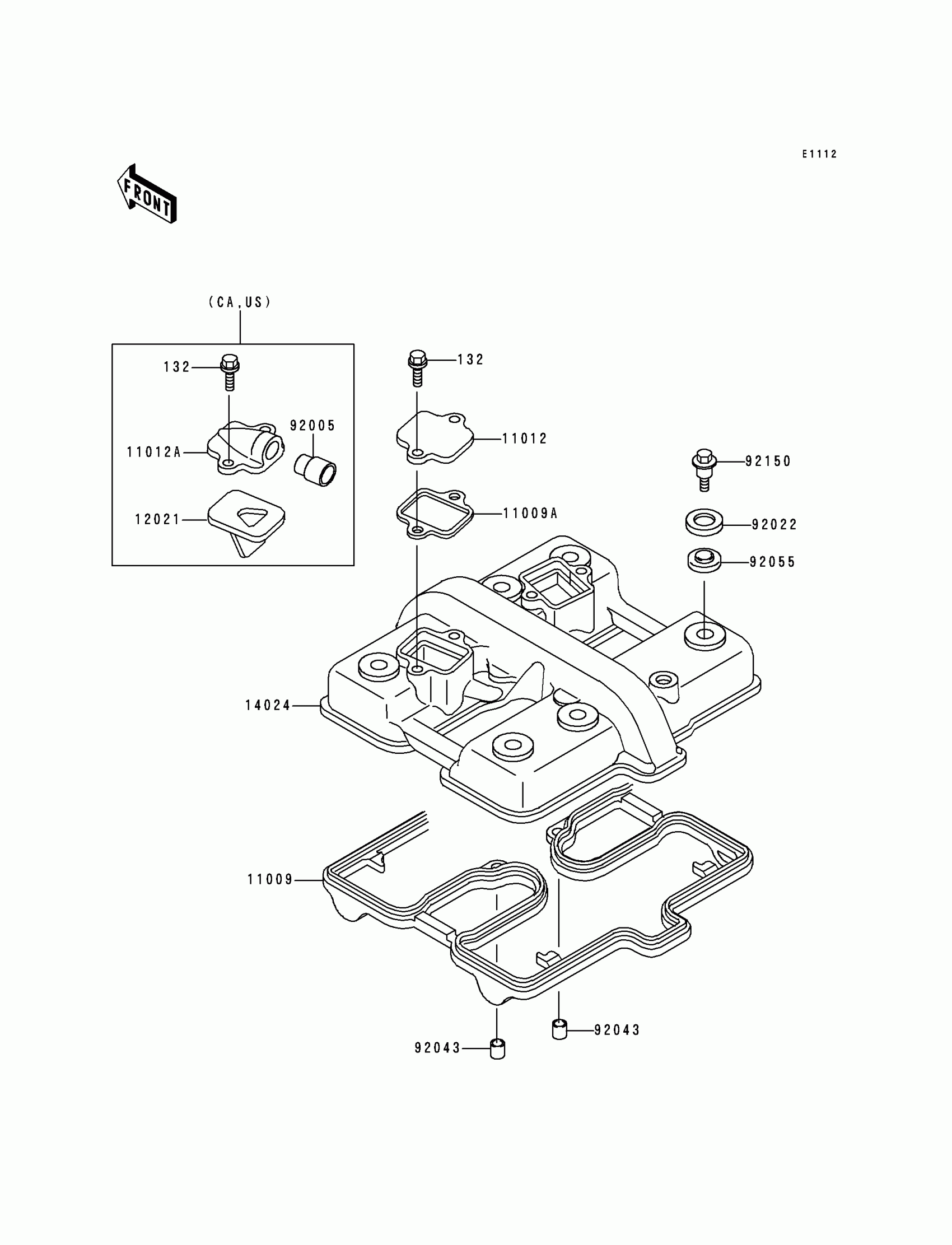

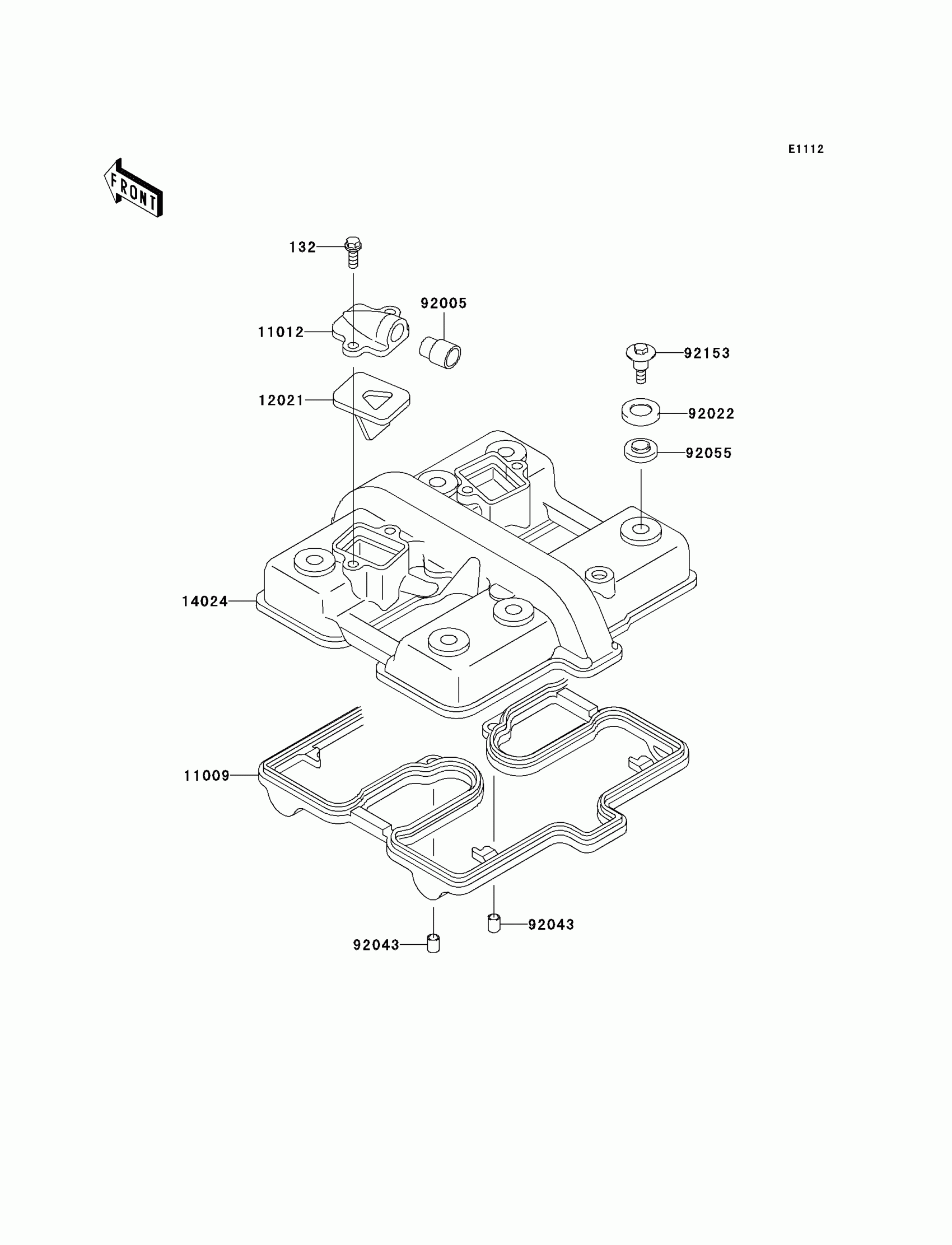

Kawasaki Ninja® 500R Cylinder Head Cover Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

11009

GASKET,CYLINDER HEAD COVER

11009-1483

$73.91

11012A

CAP,REED VALVE

11012-1310

$34.92

12021

VALVE-ASSY-REED

12021-1026

$88.64

14024

COVER,CYLINDER HEAD

14024-1397

$252.54

92005

FITTING,REED VALVE

92005-1006

$7.46

92022

WASHER,HEAD COVER BOLT

92022-1487

$4.24

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92055

RING-O,HEAD COVER BOLT

92055-1225

$5.81

92150

BOLT,FLANGED,6X23.5

92150-1447

$3.51
