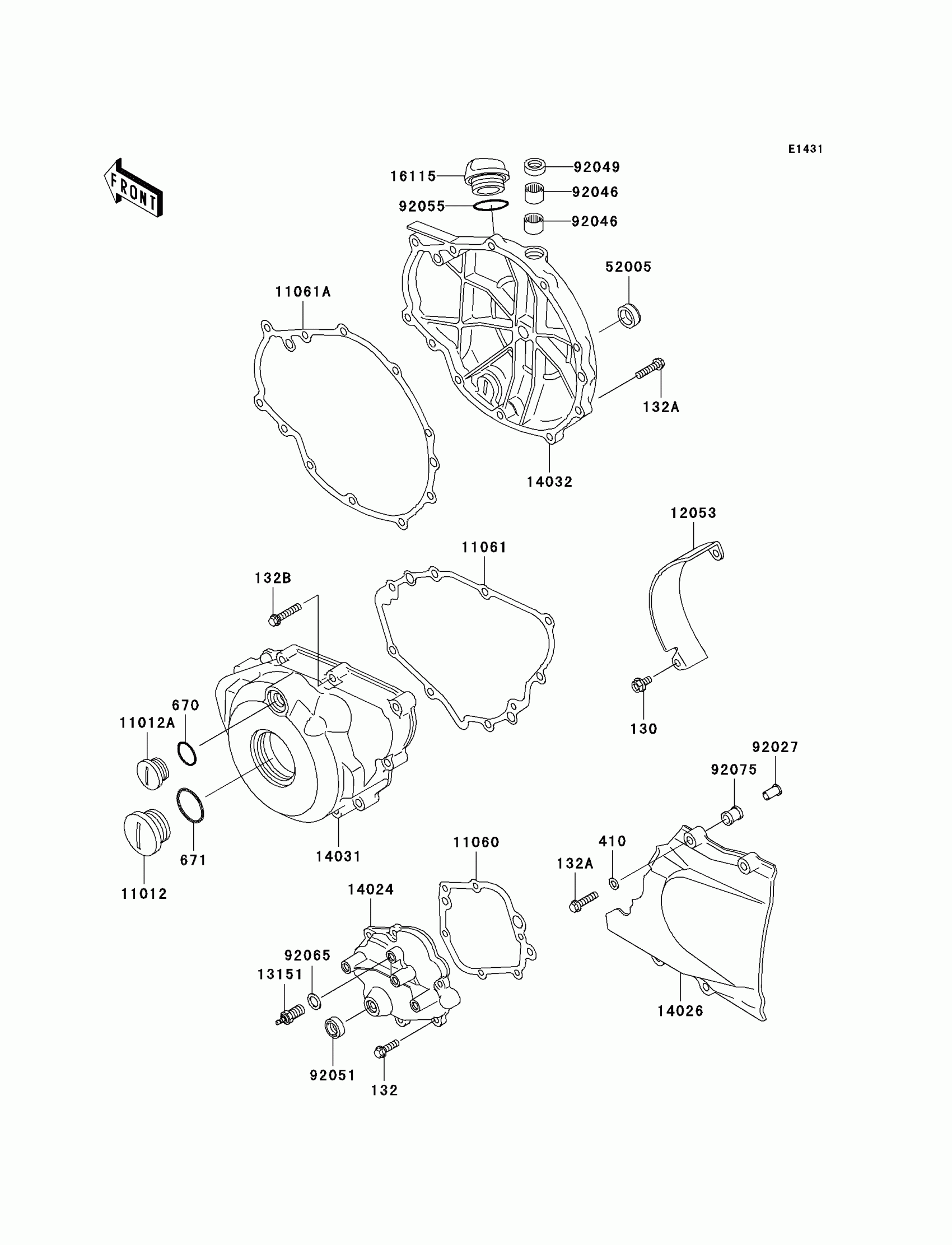

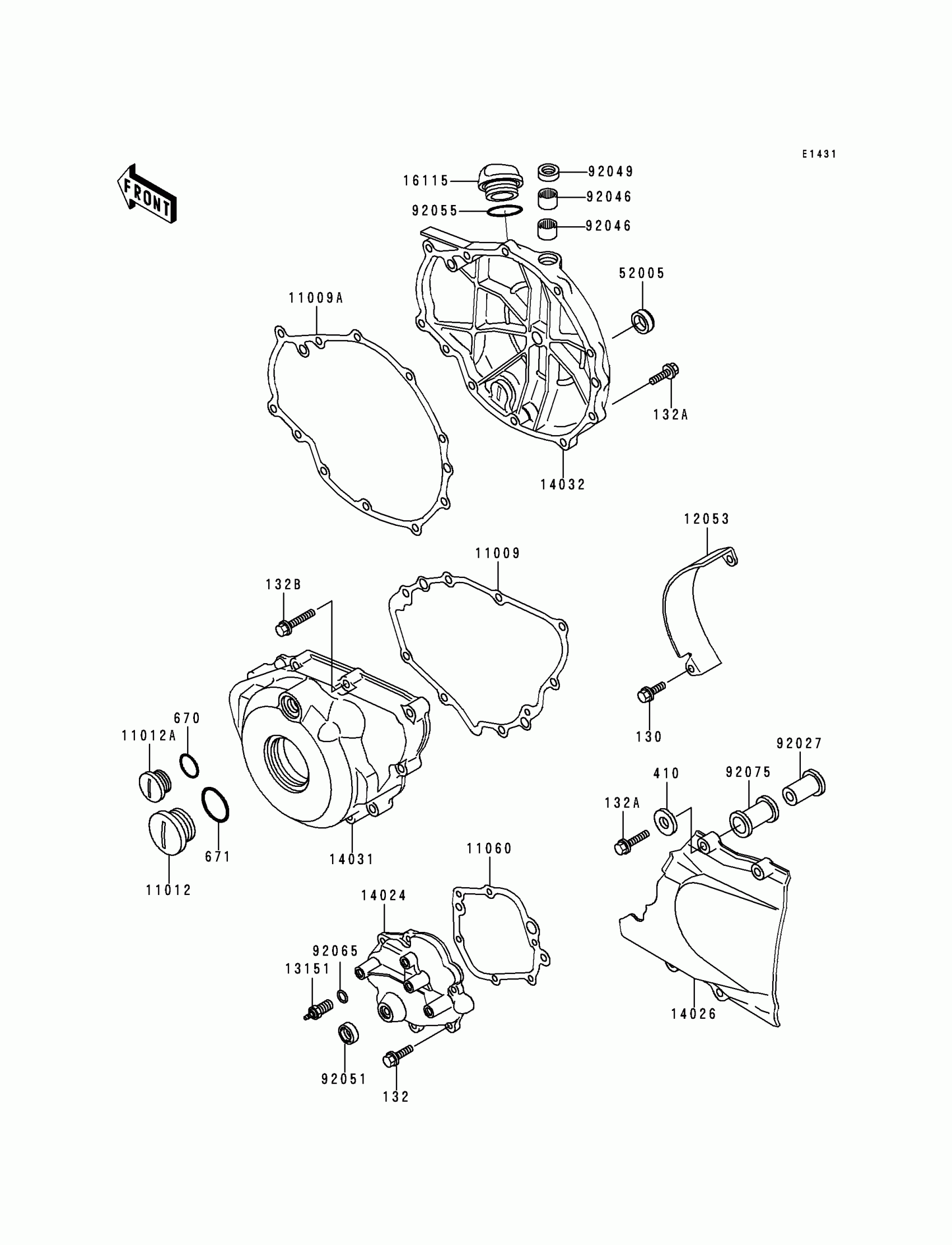

Kawasaki Ninja® 500R Engine Cover(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130G0612

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

670

O RING,18MM

670B2018

$1.08

671

O RING,40MM

671B2540

$4.67

11009

GASKET,GENERATOR COVER

11009-1834

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1836

Unavailable

11012

CAP

11012-1362

$6.70

11012A

CAP,TOP MARK

11012-1363

$4.88

11060

GASKET,CHANGE MECHANISM

11060-1830

$8.98

12053

GUIDE-CHAIN

12053-1215

$14.90

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

14024

COVER,CHANGE MECHANISM

14024-1387

$112.15

14026

COVER-CHAIN

14026-1128

$77.08

14031

COVER-GENERATOR

14031-1202

$209.24

14032

COVER-CLUTCH

14032-1386

$262.27

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92027

COLLAR

92027-1858

$5.37

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92065

GASKET,10.5X16X1

92065-058

$3.03

92075

DAMPER

92075-1681

$5.37
