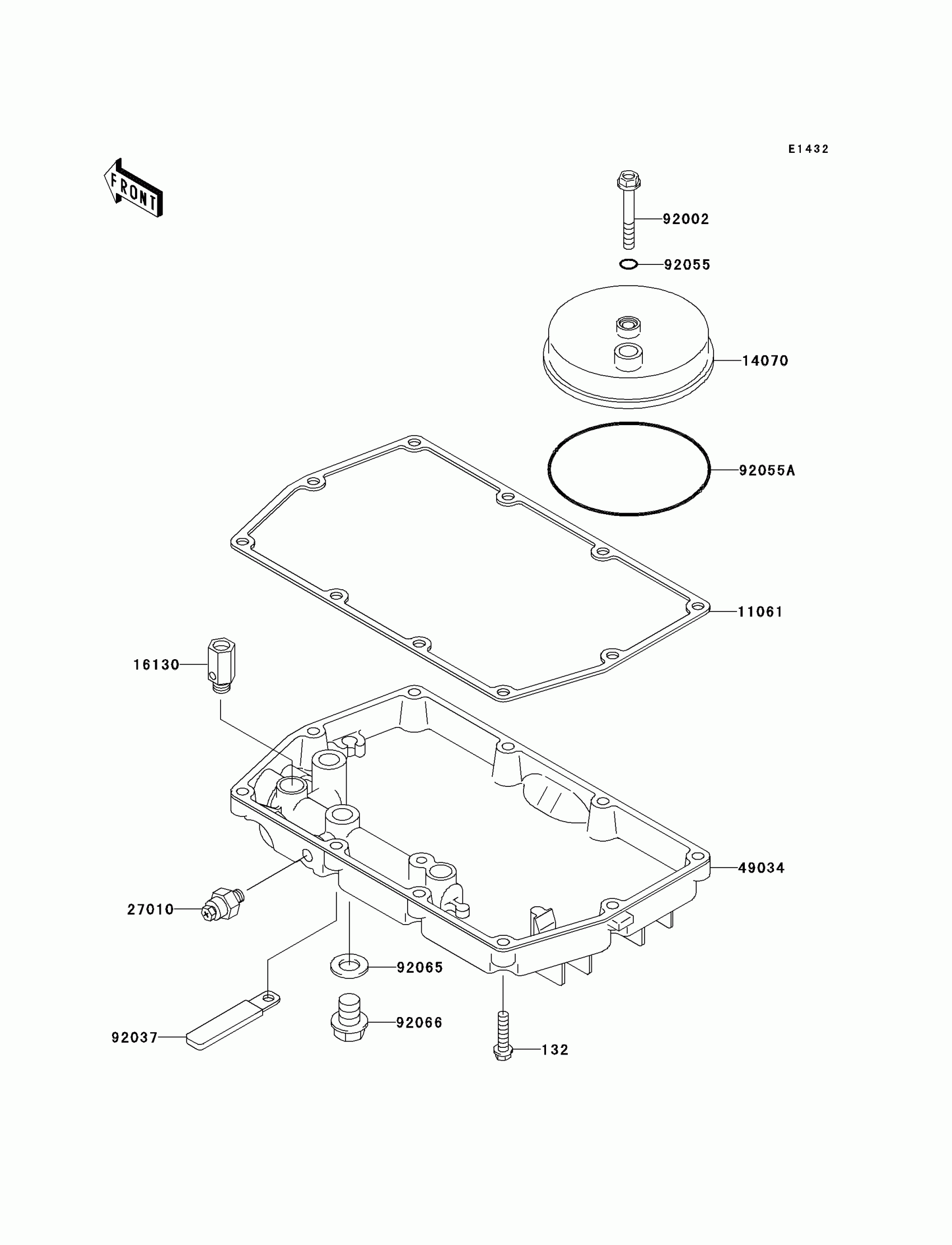

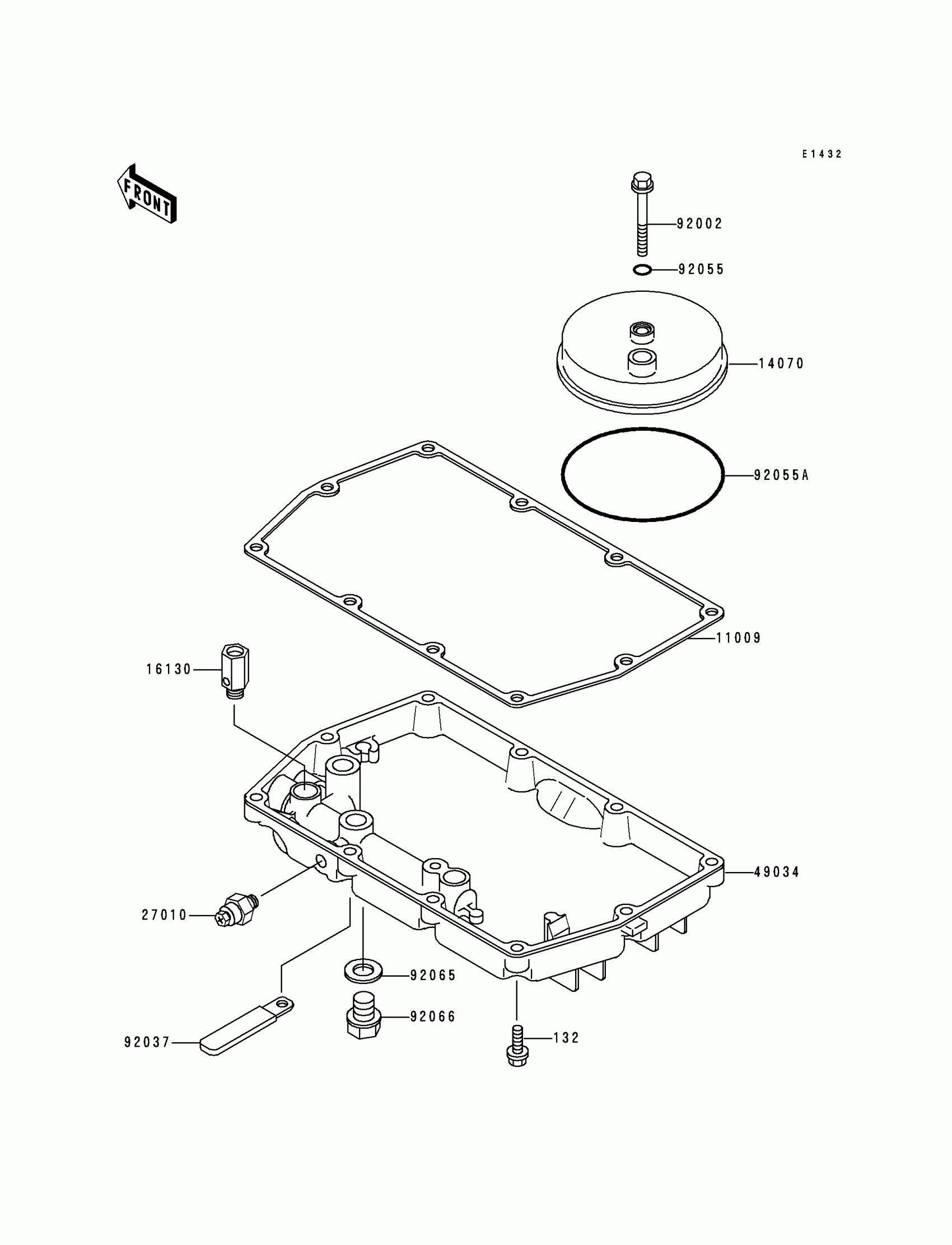

Kawasaki Ninja® 500R Breather Cover/Oil Pan Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

11009

GASKET,OIL PAN

11009-1837

Unavailable

14070

BODY-BREATHER

14070-1067

$41.78

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

49034

PAN-OIL

49034-1108

$240.87

92002

BOLT,6X45

92002-1069

$4.61

92037

CLAMP

92037-1679

$4.18

92055

RING-O,6MM

92055-1089

$4.25

92055A

RING-O,92X1.9

92055-1284

$5.63

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64
