2025 Kawasaki Ninja® 500 Throttle Diagram

← All diagrams

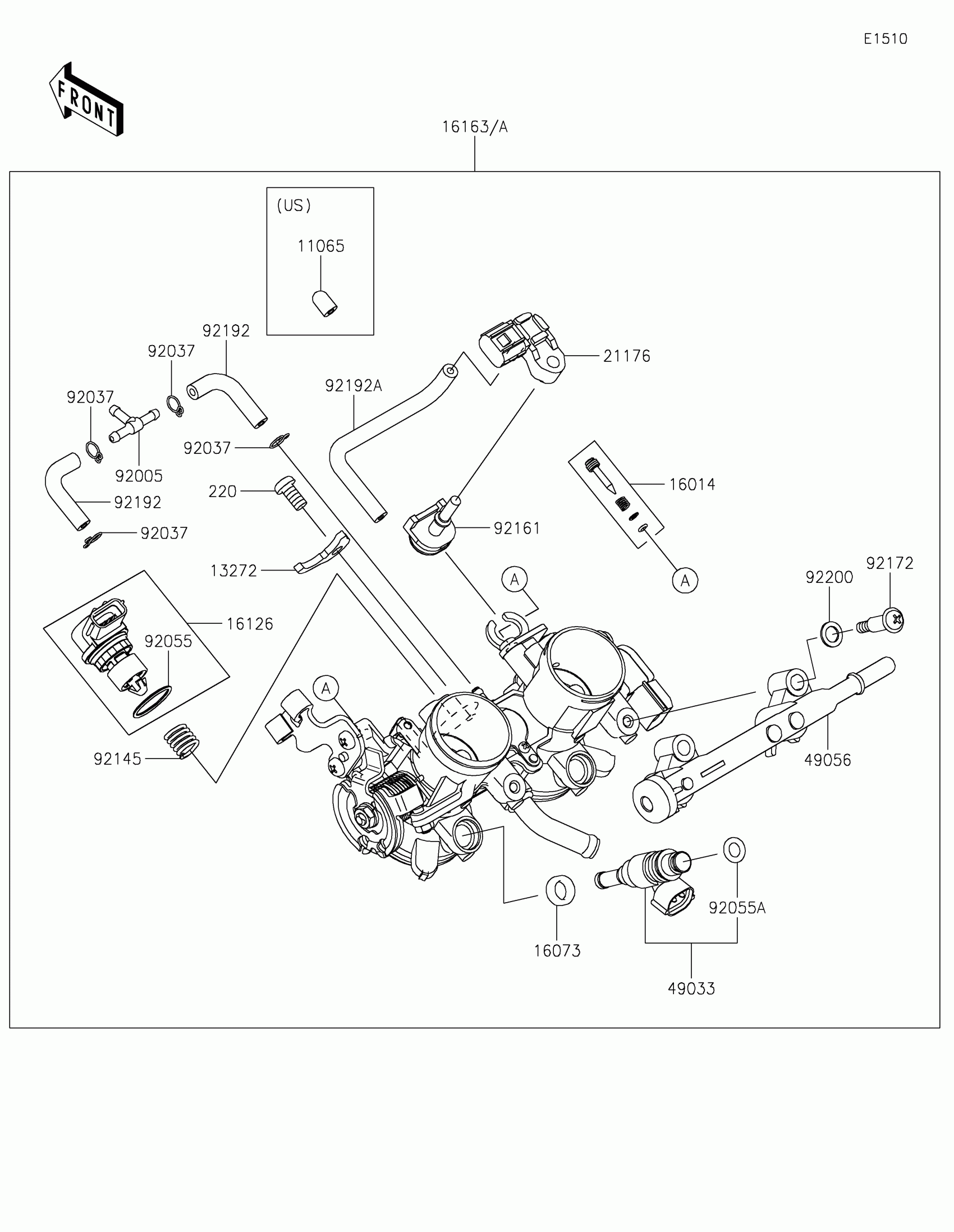

Find the part on the Throttle diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0072

1

$5.73

In stock

13272

PLATE

13272-2558

1

$21.07

In stock

16014

SCREW-PILOT AIR

16014-0022

1

$23.64

In stock

16073

INSULATOR

16073-0866

1

$5.25

In stock

16126

VALVE,ISC

16126-0748

1

$118.86

In stock

16163

THROTTLE-ASSY

16163-1267

1

$729.57

In stock

16163A

THROTTLE-ASSY

16163-1295

1

$729.57

In stock

21176

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

49033

NOZZLE-INJECTION

49033-0047

1

$135.75

In stock

49056

PIPE-INJECTION

49056-0050

1

$79.99

In stock

92005

FITTING

92005-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1124

1

$4.83

In stock

92055

RING-O

92055-0907

1

$8.37

In stock

92055A

1

$2.42

In stock

92145

SPRING

92145-1826

1

$5.02

In stock

92161

DAMPER

92161-2438

1

$1.49

In stock

92172

SCREW

92172-1257

1

$2.29

In stock

92192

TUBE,3.5X7.5X55

92192-1349

1
Out of stock

92192A

TUBE

92192-1906

1

$25.78

In stock

92200

WASHER

92200-3807

1
Out of stock

220

1

$1.10

In stock

92037

CLAMP,TUBE

92037-1124

1

$4.83

In stock
