2025 Kawasaki Ninja® 500 Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

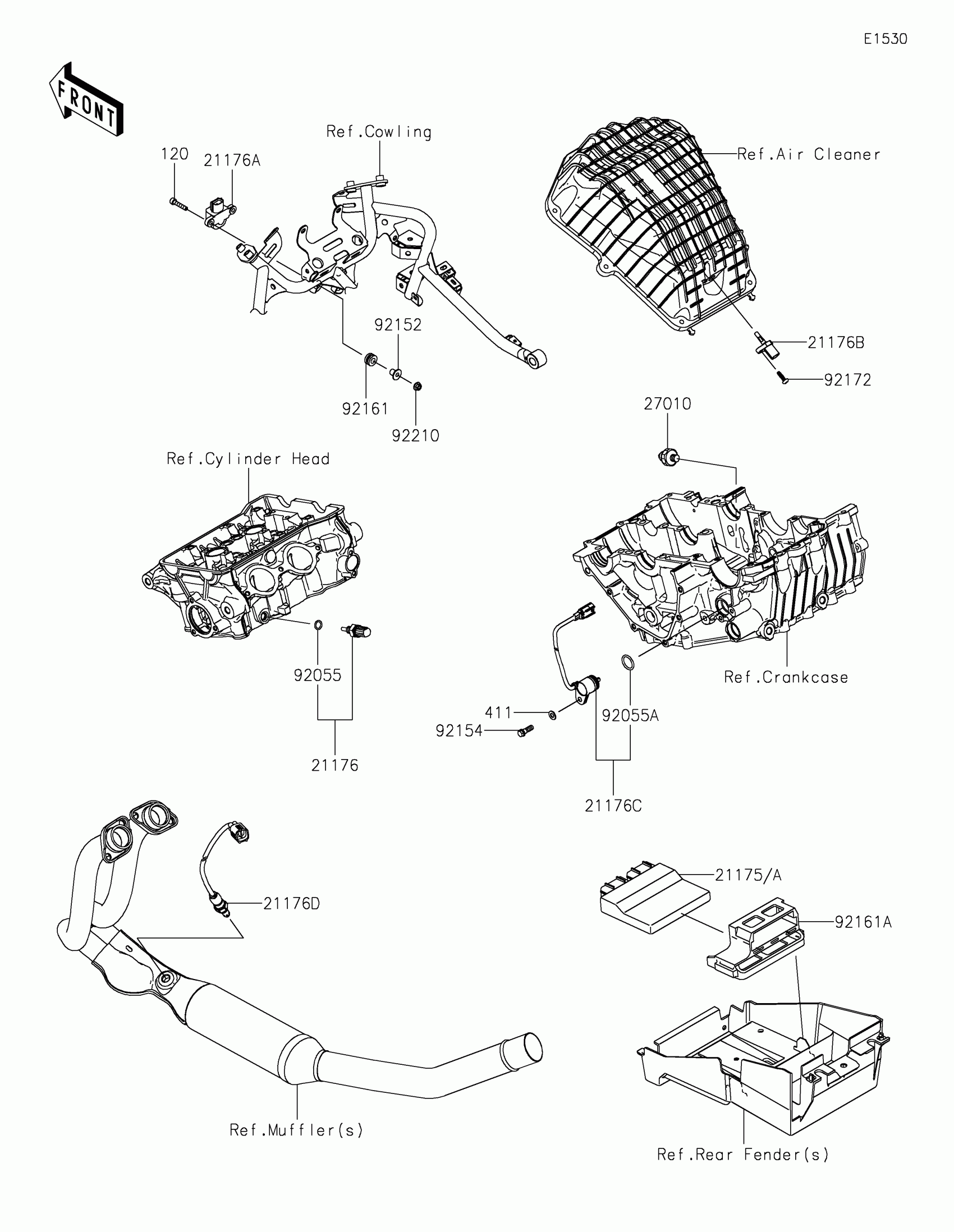

2025 Kawasaki Ninja® 500 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$986.51

In stock

21175A

1

$986.51

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

1

$24.07

In stock

21176C

1

$145.08

In stock

21176D

SENSOR,OXYGEN

21176-1202

1

$242.65

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0917

1

$3.27

In stock

92152

COLLAR,5.6X8X11.2

92152-1562

1

$2.19

In stock

92154

BOLT

92154-3764

1

$1.47

In stock

92161

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock

92161A

DAMPER

92161-2437

1

$14.56

In stock

92172

SCREW,TAPPING,5X16

92172-0790

1

$0.85

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
