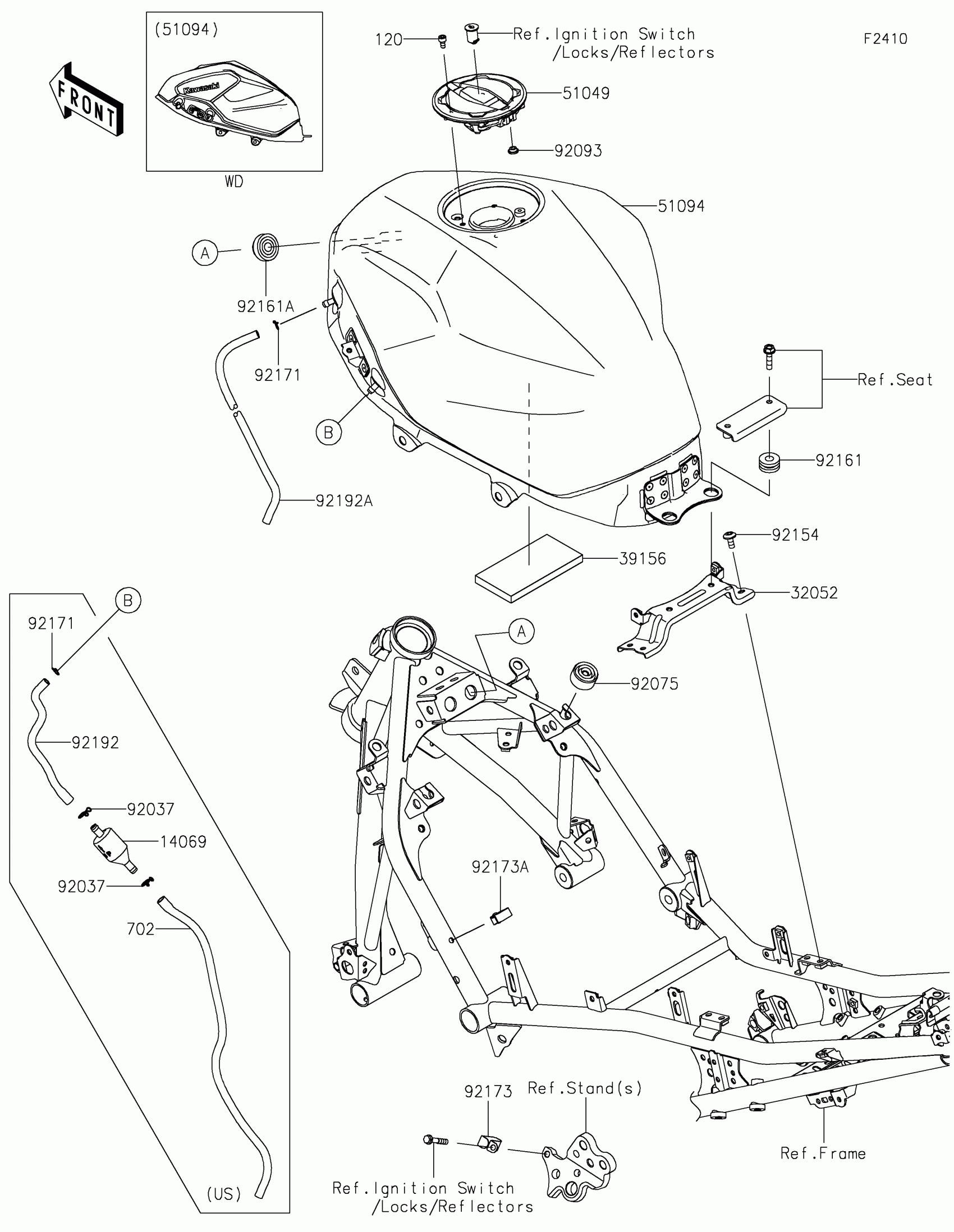

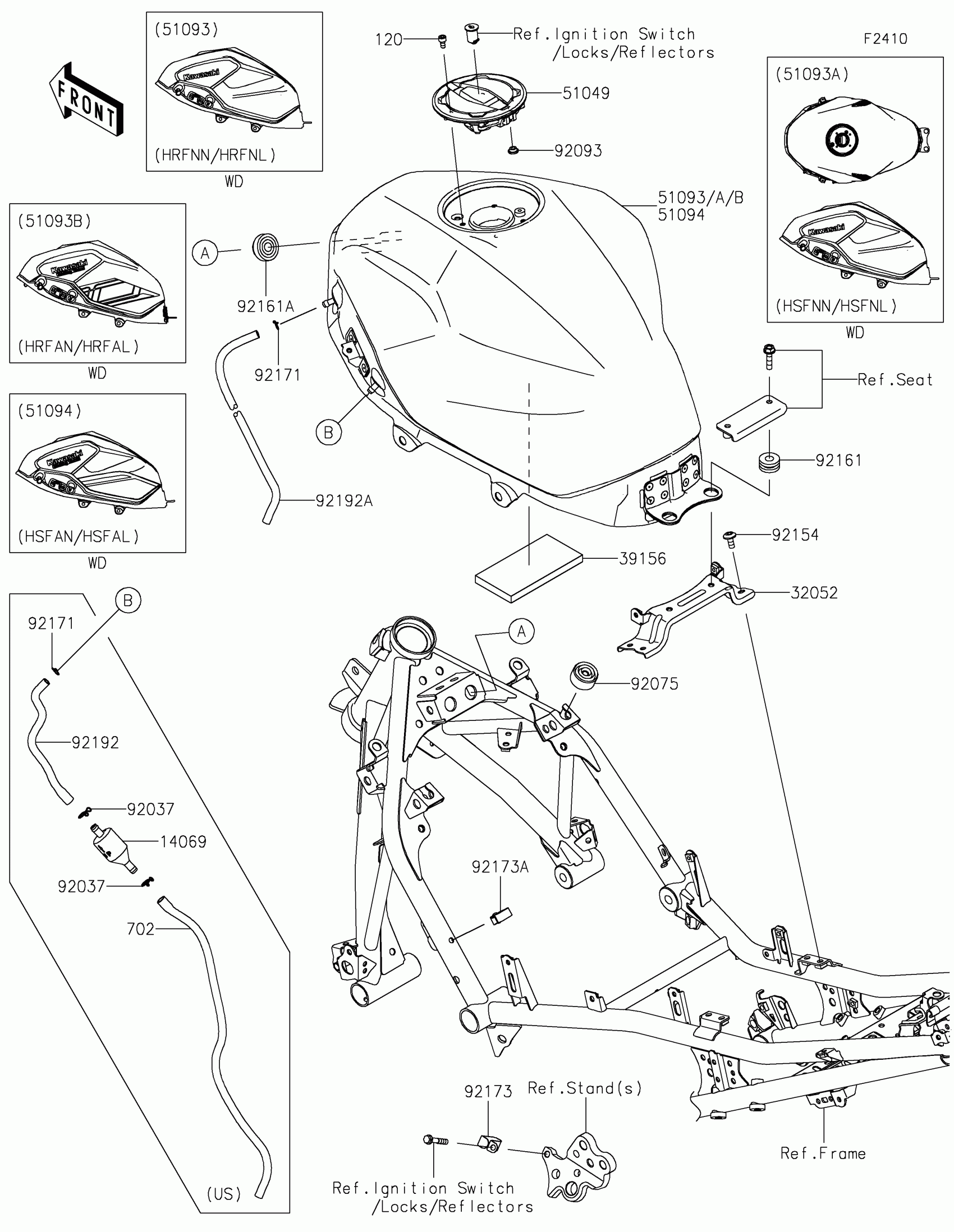

Kawasaki NINJA® 500 Fuel Tank Diagram

Description

Price

14069

BREATHER,FUEL TANK

14069-1004

$7.76

32052

BRACKET-TANK

32052-0809

$32.79

39156

PAD,60X120X10

39156-2388

$10.20

51049

CAP-TANK,FUEL

51049-0756

$139.17

51093A

TANK-COMP-FUEL,M.M.W.SILVER

51093-5334-63V

$831.12

92037

CLAMP,TUBE

92037-147

$5.61

92075

DAMPER

92075-015

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92154

BOLT,SOCKET,6X14

92154-0932

$1.44

92161

DAMPER,10X24X12

92161-0927

$4.53

92161A

DAMPER,10X32X17

92161-1980

$3.29

92171

CLAMP,8X0.7

92171-1973

$1.04

92173

CLAMP

92173-0833

$3.29

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92192

TUBE,6X9X200

92192-1824

$5.10

92192A

TUBE,DRAIN,6X9X810

92192-1860

$5.93

120

BOLT-SOCKET,5X12

120CA0512

$1.19

702

TUBE-RUBBER,6X9X450

702A06450

$1.32

92171

CLAMP,8X0.7

92171-1973

$1.04
