2025 Kawasaki Ninja® 500 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

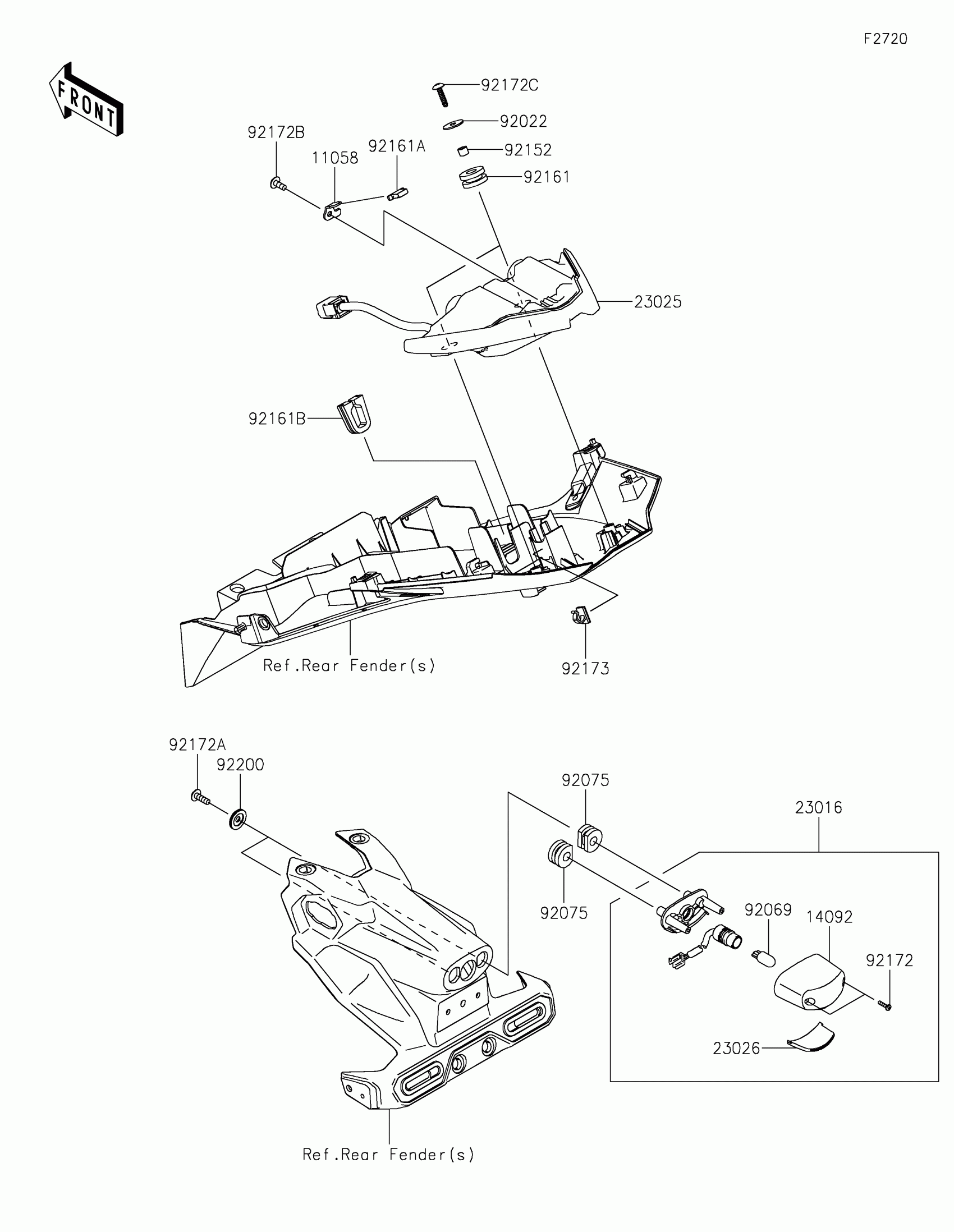

2025 Kawasaki Ninja® 500 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,TAIL LAMP

11058-1169

1

$1.59

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0657

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0403

1

$207.91

In stock

23026

LENS,LICENCE LAMP

23026-0035

1

$29.34

In stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92075

DAMPER

92075-1870

1

$4.42

In stock

92152

COLLAR,5.5X10X7.5

92152-2618

1

$1.49

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-1917

1

$1.47

In stock

92161B

DAMPER,RR FENDER

92161-1984

1

$0.88

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172B

SCREW,5X12

92172-0821

1

$0.85

In stock

92172C

SCREW,TAPPING,5X20

92172-1159

1

$1.27

In stock

92173

CLAMP,CLIP

92173-1783

1

$2.02

In stock

92200

WASHER,5.5X20X2

92200-1971

1

$1.81

In stock
