2025 Kawasaki Ninja® 500 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

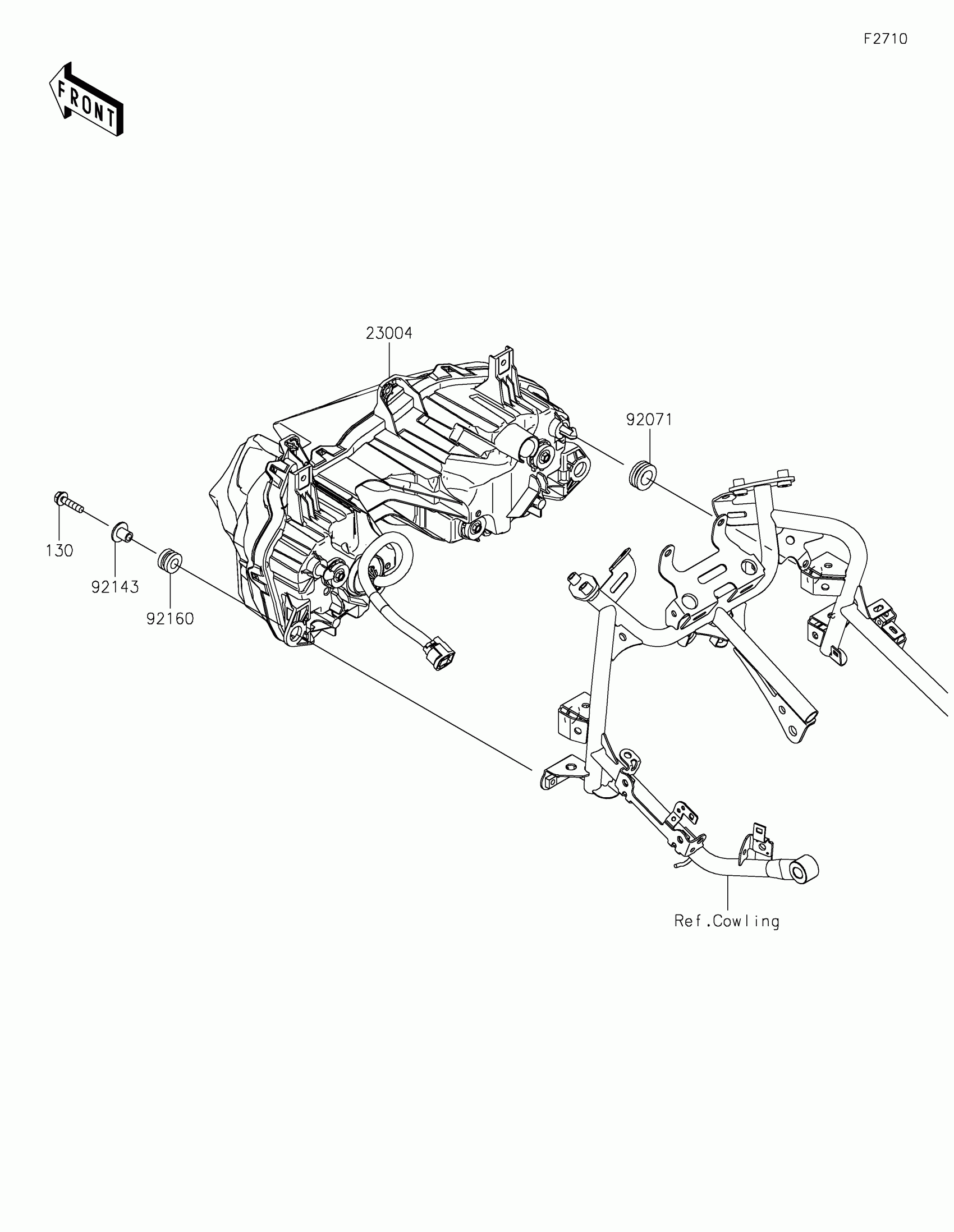

2025 Kawasaki Ninja® 500 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0461

1

$1,149.50

In stock

92071

GROMMET

92071-1131

1

$6.18

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
