2025 Kawasaki Ninja® 500 Generator Diagram

← All diagrams

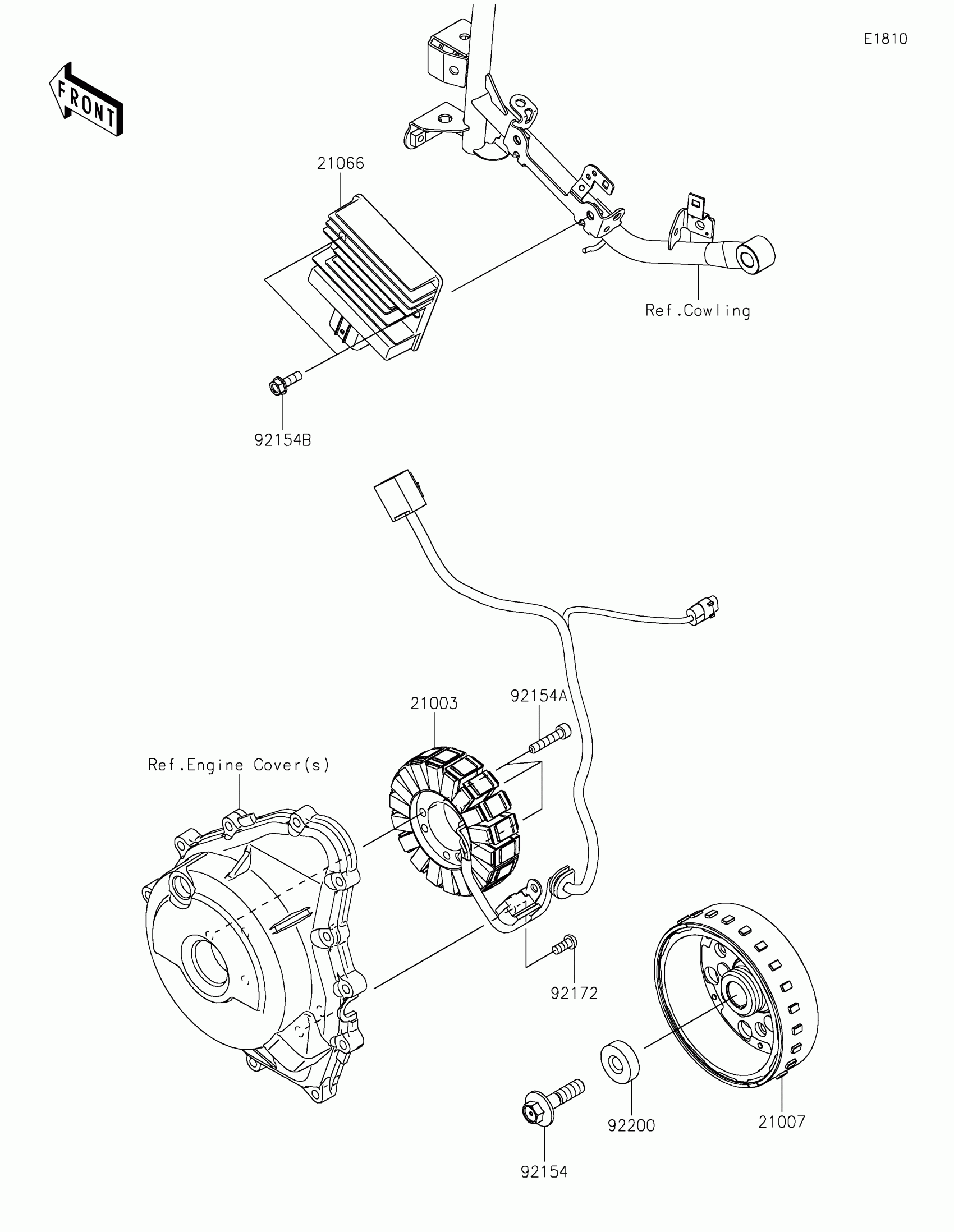

Find the part on the Generator diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0178

1

$518.75

In stock

21007

ROTOR

21007-0736

1

$555.30

In stock

21066

REGULATOR-VOLTAGE

21066-0761

1

$203.88

In stock

92154

BOLT,FLANGED,10X40

92154-2341

1

$20.00

In stock

92154A

BOLT,SOCKET,6X30

92154-2820

1

$1.81

In stock

92154B

BOLT,FLANGED,6X18

92154-2896

1

$0.69

In stock

92172

SCREW,6X14

92172-1212

1

$1.27

In stock

92200

WASHER,10X30X9

92200-0790

1
Out of stock
