2025 Kawasaki Ninja® 500 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

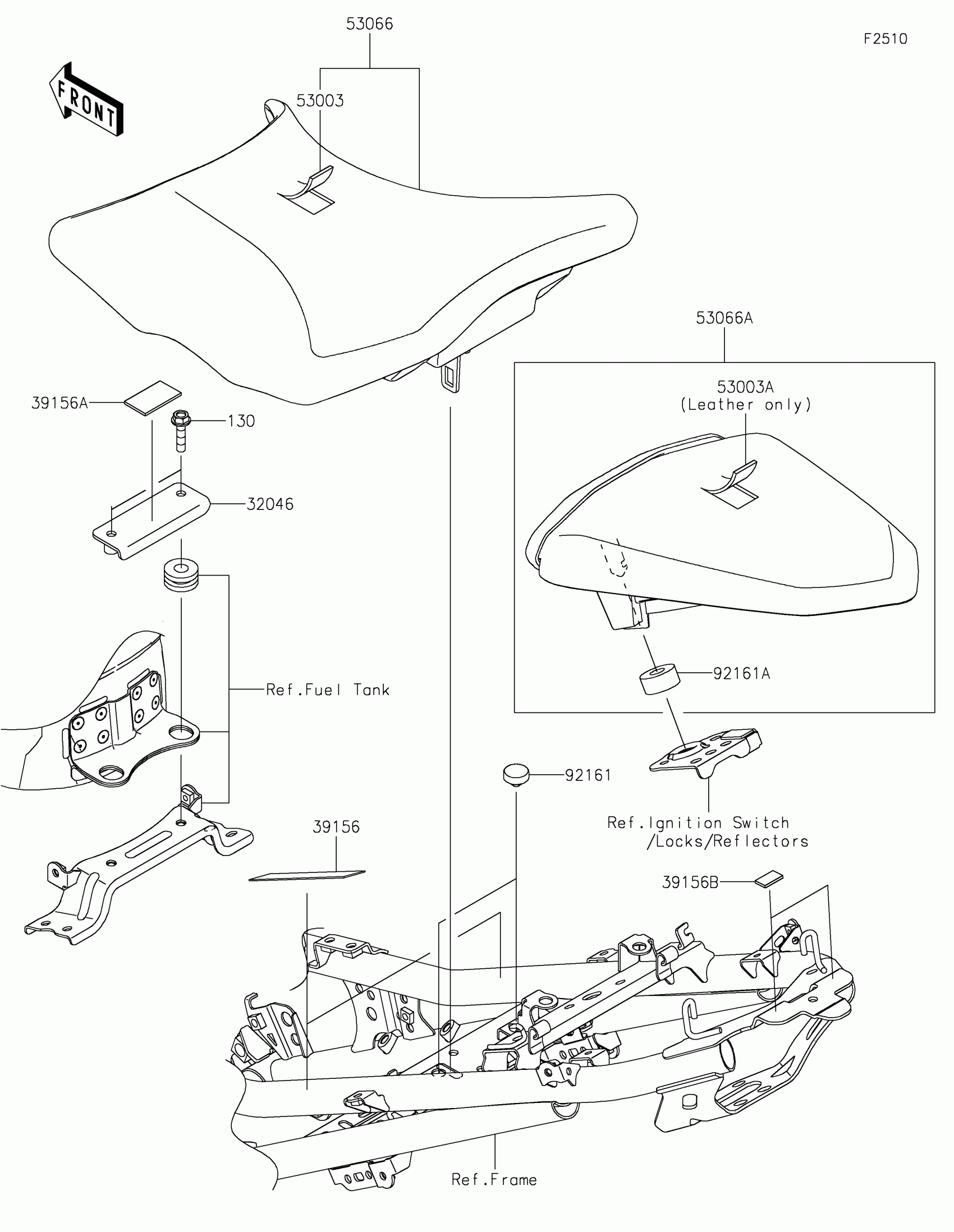

2025 Kawasaki Ninja® 500 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32046

BRACKET-SEAT

32046-0423

1

$11.76

In stock

39156

PAD,35X75X1

39156-2383

1

$3.51

In stock

39156A

PAD,36X21X2

39156-2882

1

$1.31

In stock

39156B

PAD,18X10X2

39156-2952

1

$1.00

In stock

53003

LEATHER,BLACK

53003-0682-MA

1

$125.77

In stock

53003A

LEATHER,BLACK

53003-0686-MA

1

$90.66

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0896-MA

1

$318.52

In stock

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0898-12Y

1

$227.87

In stock

92161

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92161A

DAMPER

92161-2640

1

$8.97

In stock

130

BOLT-FLANGED,6X25

130CC0625

1

$1.27

In stock
