2026 Kawasaki Ninja 500 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2026 Kawasaki Ninja 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

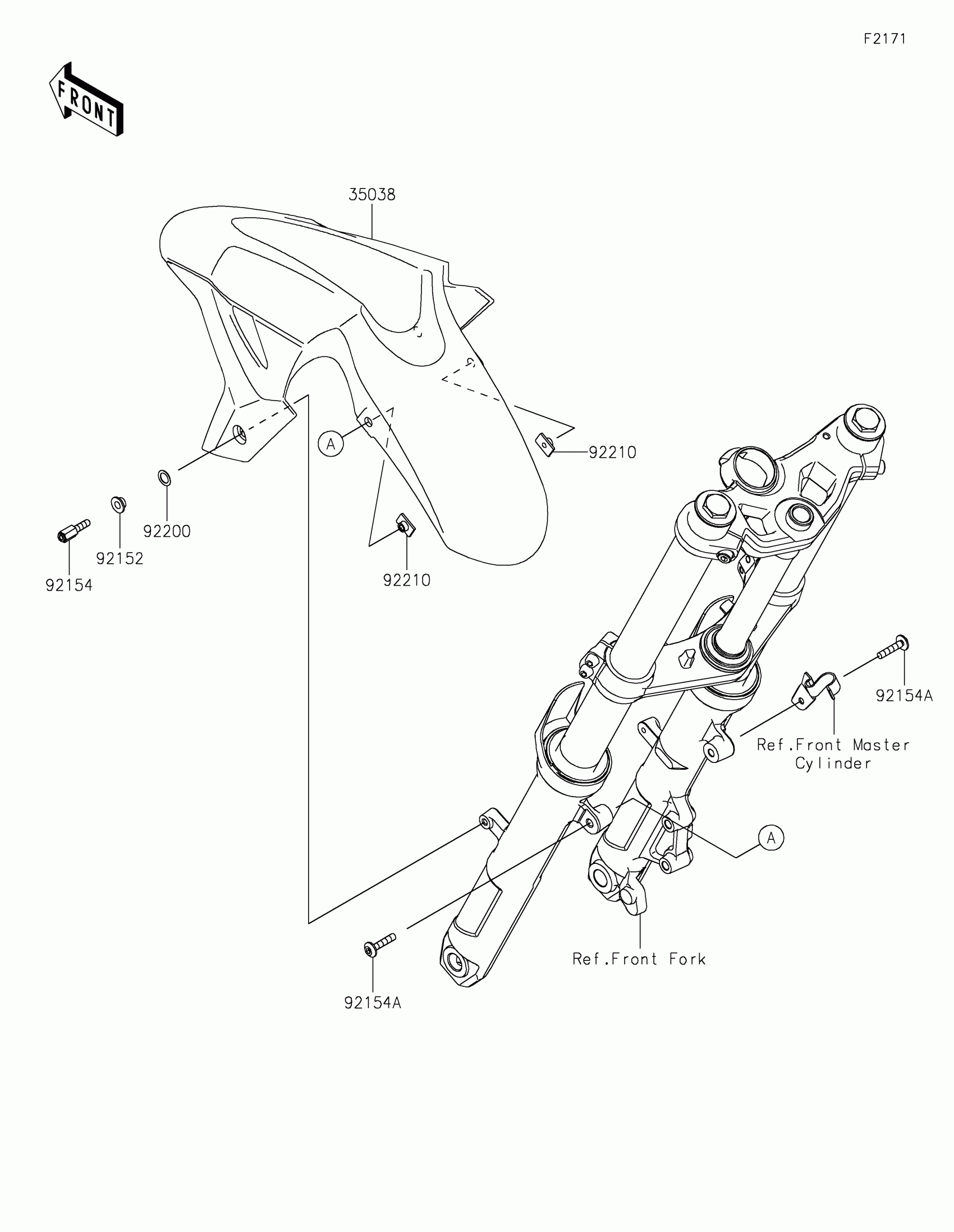

2026 Kawasaki Ninja 500 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,M.F.S.BLACK

35038-0065-739

1
Out of stock

92152

COLLAR,6.8X10(16)X6.6

92152-0842

1
Out of stock

92154

BOLT,6X20,WHITE

92154-0884

1
Out of stock

92154A

BOLT,SOCKET,6X30

92154-4422

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-2525

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
