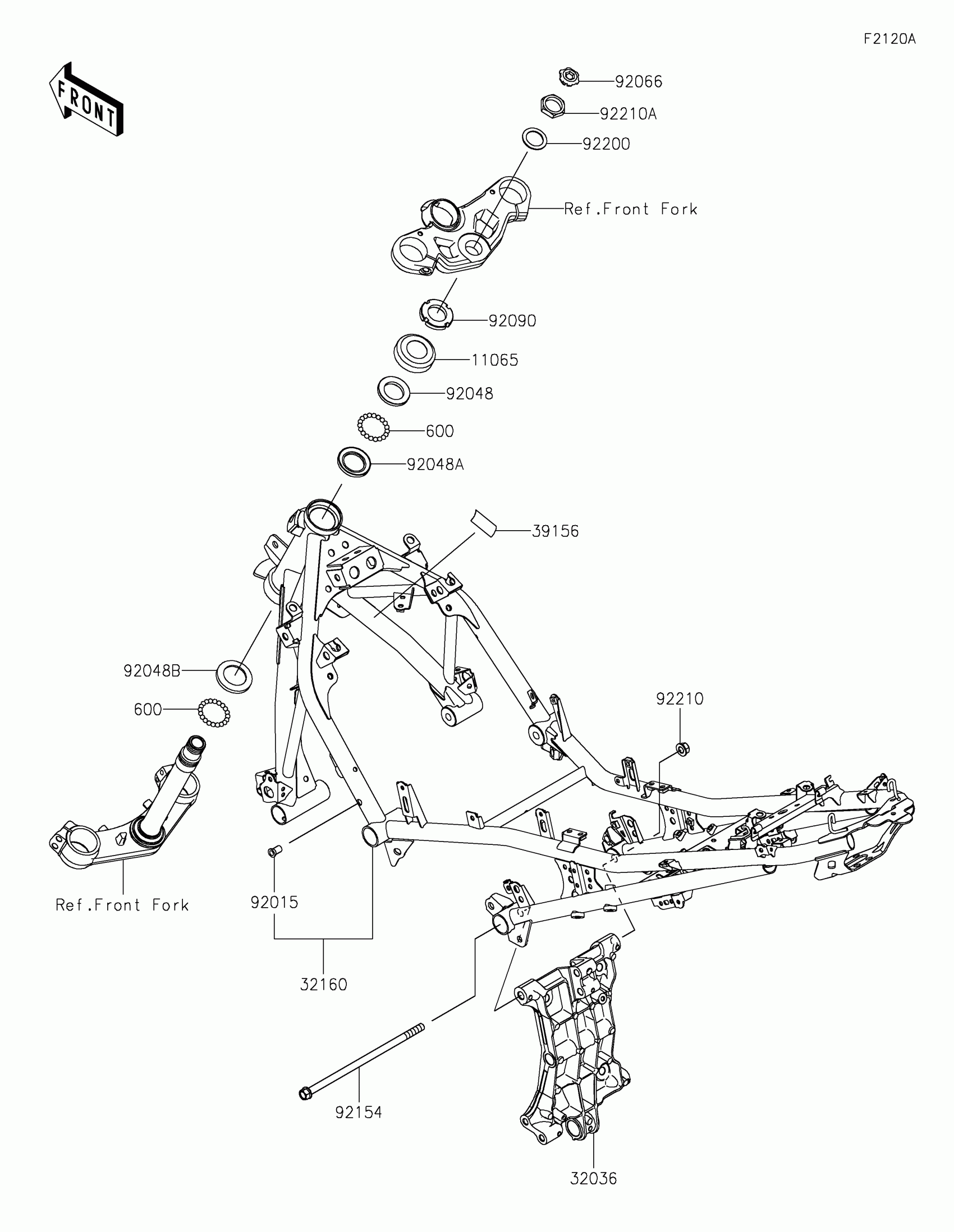

Kawasaki NINJA® 500 Frame(CA) Diagram

Description

Price

11065

CAP

11065-1290

$5.31

32036

BRACKET-SWINGARM

32036-0376

$448.84

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-2017-18R

$1,977.63

39156

PAD,42X20X0.36

39156-2933

$2.08

92015

NUT,POP,6MM

92015-1759

$4.42

92048

RACE,STEERING STEM BEARING

92048-0032

$13.85

92048A

RACE,STEERING STEM BEARING

92048-0036

$8.83

92048B

RACE,STEERING STEM BEARING

92048-0037

$12.16

92066

PLUG

92066-0915

$1.87

92090

NUT,30MM

92090-007

$8.91

92154

BOLT,FLANGED,10X231

92154-3738

$25.78

92200

WASHER,25.5X36X1.6

92200-1858

$8.51

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,25MM

92210-1586

$10.14

600

BALL-STEEL,1/4

600A0800

$0.59
