2026 Kawasaki Ninja 500 Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2026 Kawasaki Ninja 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

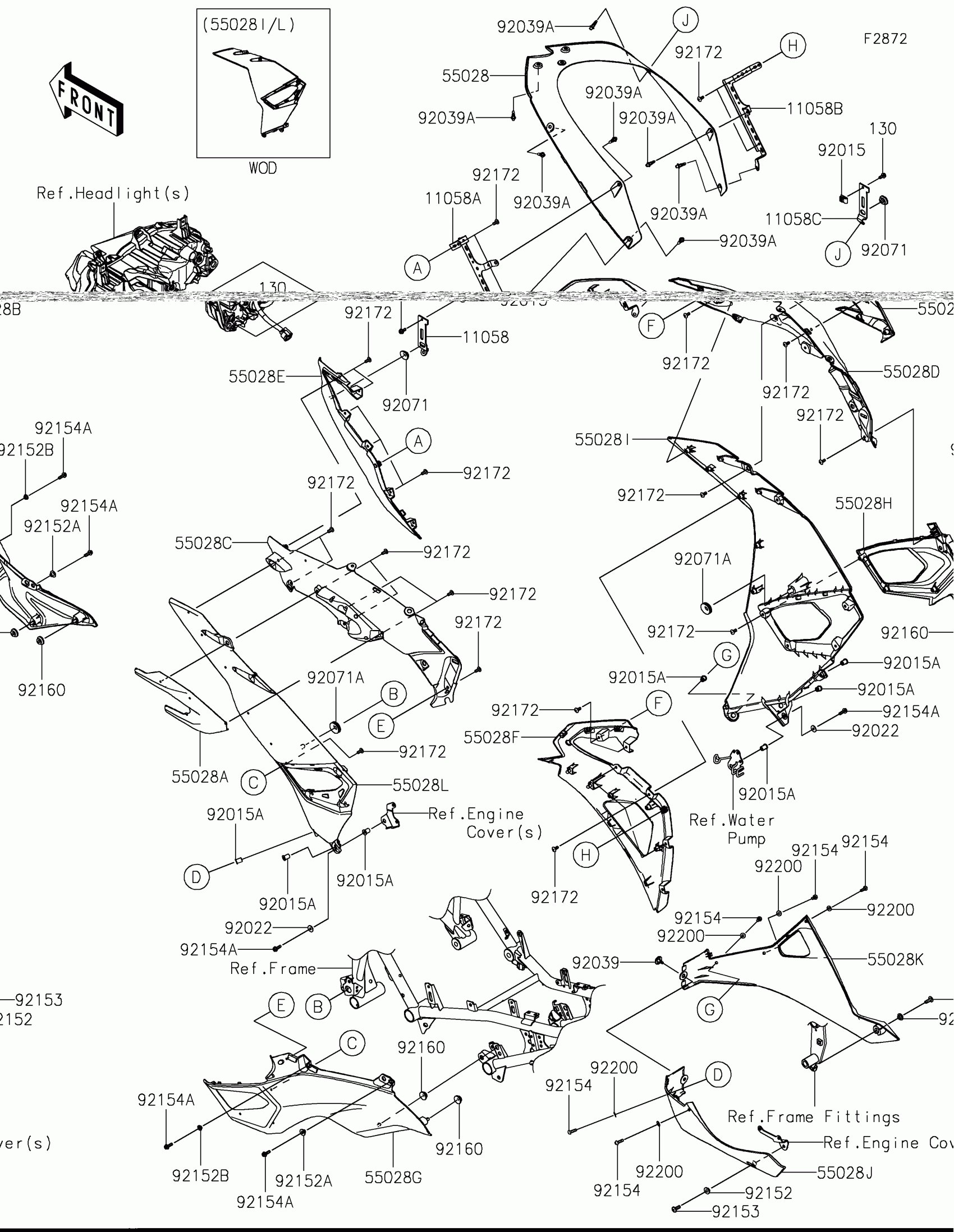

2026 Kawasaki Ninja 500 Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,HEAD LAMP,LH

11058-1180

1
Out of stock

11058A

BRACKET,FR COWLING,LH

11058-1182

1
Out of stock

11058B

BRACKET,FR COWLING,RH

11058-1183

1
Out of stock

11058C

BRACKET,HEAD LAMP,RH

11058-2403

1
Out of stock

55028

COWLING,FR

55028-0877

1
Out of stock

55028A

COWLING,FIN,LH,M.S.BLACK

55028-0878-660

1
Out of stock

55028B

COWLING,FIN,RH,M.S.BLACK

55028-0879-660

1
Out of stock

55028C

COWLING,SIDE,UPP,LH,M.S.BLACK

55028-0880-660

1
Out of stock

55028D

COWLING,SIDE,UPP,RH,M.S.BLACK

55028-0881-660

1
Out of stock

55028E

COWLING,SIDE,FR,LH

55028-0882

1
Out of stock

55028F

COWLING,SIDE,FR,RH

55028-0883

1
Out of stock

55028G

COWLING,SIDE,RR,LH,M.F.S.BLACK

55028-0884-739

1
Out of stock

55028H

COWLING,SIDE,RR,RH,M.F.S.BLACK

55028-0885-739

1
Out of stock

55028I

COWLING,SIDE,RH,M.F.S.BLACK

55028-0887-739

1
Out of stock

55028J

COWLING,LWR,LH,M.F.S.BLACK

55028-0888-739

1
Out of stock

55028K

COWLING,LWR,RH,M.F.S.BLACK

55028-0889-739

1
Out of stock

55028L

COWLING,SIDE,LH,M.F.S.BLACK

55028-0916-739

1
Out of stock

92015

NUT,5MM

92015-1710

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92039

RIVET,HOLE 8MM

92039-0014

1
Out of stock

92039A

RIVET

92039-0709

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92071A

GROMMET

92071-1043

1
Out of stock

92152

COLLAR,6.5X16X5.6

92152-1838

1
Out of stock

92152A

COLLAR,5.2X7.8X7.2

92152-2371

1
Out of stock

92152B

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92153

BOLT,6X18

92153-0478

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92154A

BOLT,FLANGED,5X16

92154-7034

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92200

WASHER,5.2X12X1.0

92200-0784

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock
