2025 Kawasaki Ninja® 500 ABS Rear Brake Diagram

← All diagrams

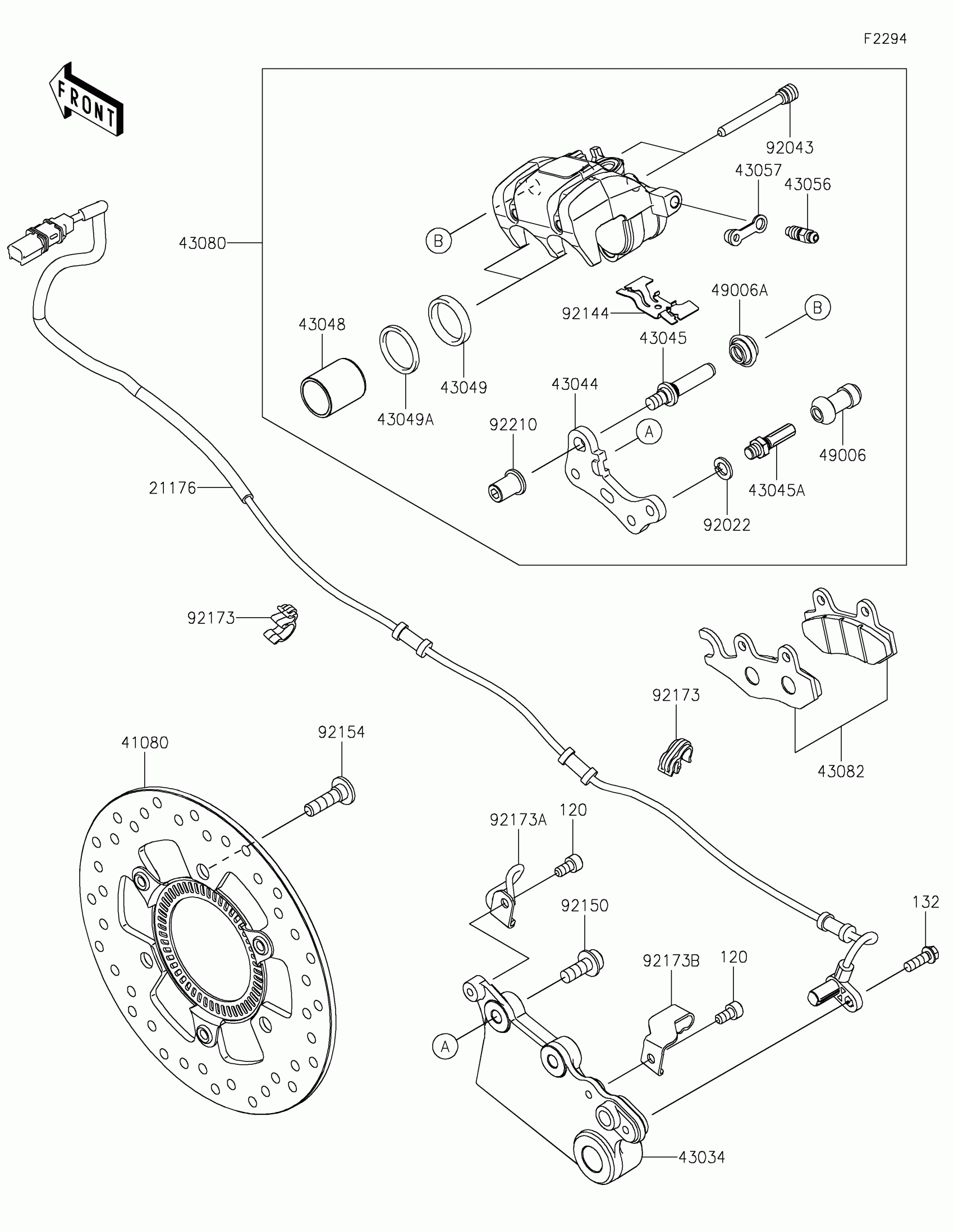

Find the part on the Rear Brake diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,SPEED,RR

21176-1142

1
Out of stock

41080

DISC,RR,W/R,BLACK

41080-0765-11H

1
Out of stock

43034

HOLDER-BRAKE

43034-0179

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1112

1
Out of stock

43045

SHAFT-CALIPER

43045-0013

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0245-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0128

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1155

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

92173A

CLAMP

92173-2481

1
Out of stock

92173B

CLAMP

92173-2483

1
Out of stock

92210

NUT

92210-0615

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

132

1

$1.75

In stock
