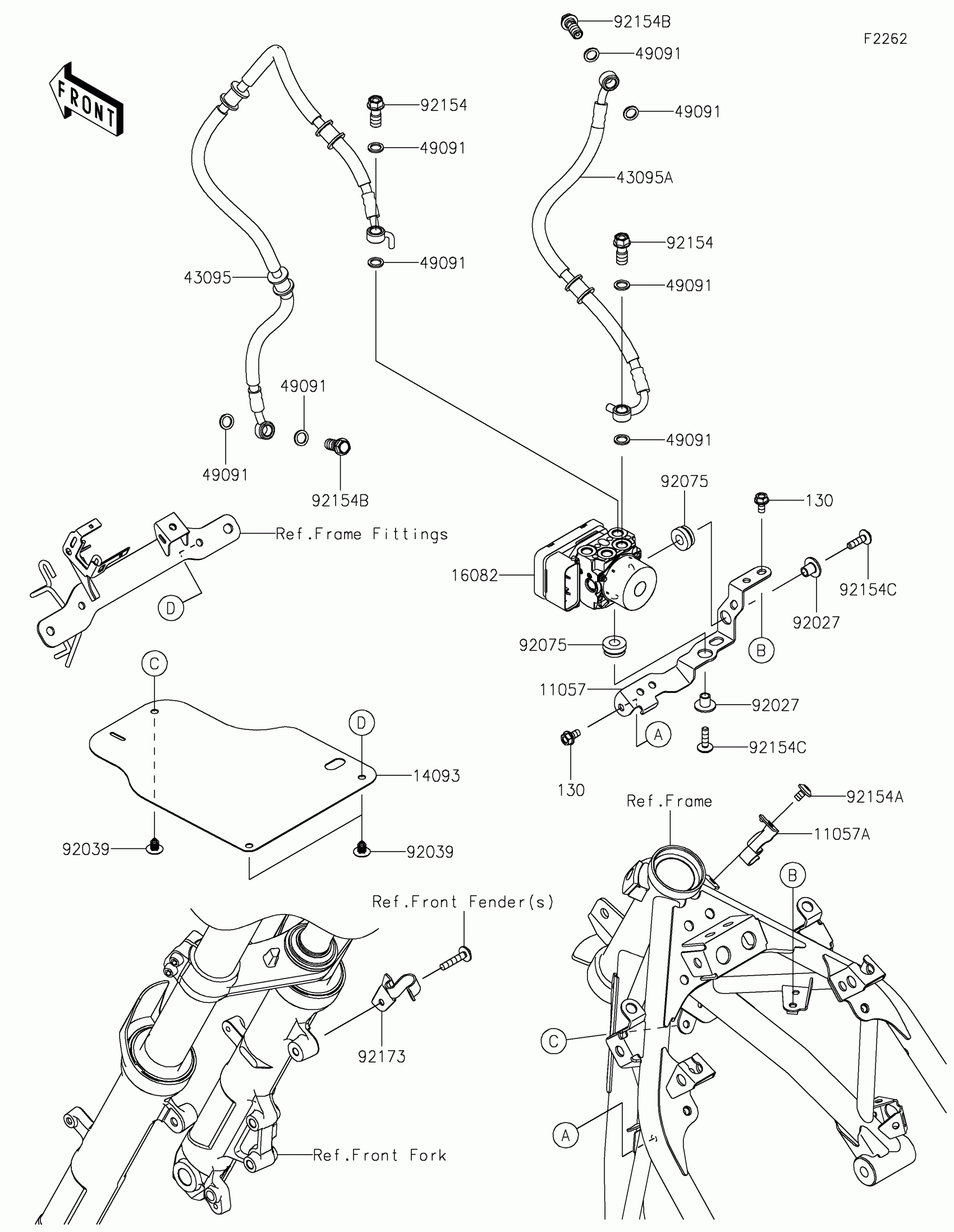

Kawasaki NINJA® 500 ABS Brake Piping Diagram

Description

Price

11057

BRACKET,ABS UNIT

11057-1098

$9.68

11057A

BRACKET

11057-1100

$2.20

14093

COVER,OIL PUMP

14093-1541

$9.22

16082

PUMP-ASSY-OIL

16082-0952

$1,158.87

43095

HOSE-BRAKE,HU-FR CALIPER

43095-1852

$131.71

43095A

HOSE-BRAKE,HU-FR M/CYLINDER

43095-1955

$86.66

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92039

RIVET

92039-0722

$1.24

92075

DAMPER

92075-277

$1.90

92154

BOLT,BANJO,10X22

92154-1138

$7.31

92154A

BOLT,SOCKET,6X10

92154-1693

$1.47

92154B

BOLT,BANJO,10X23

92154-1712

$3.56

92154C

BOLT,SOCKET,6X22

92154-2302

$1.10

92173

CLAMP,HOSE&SENSOR

92173-1774

$2.59

130

BOLT-FLANGED,6X12

130BB0612

$1.68
