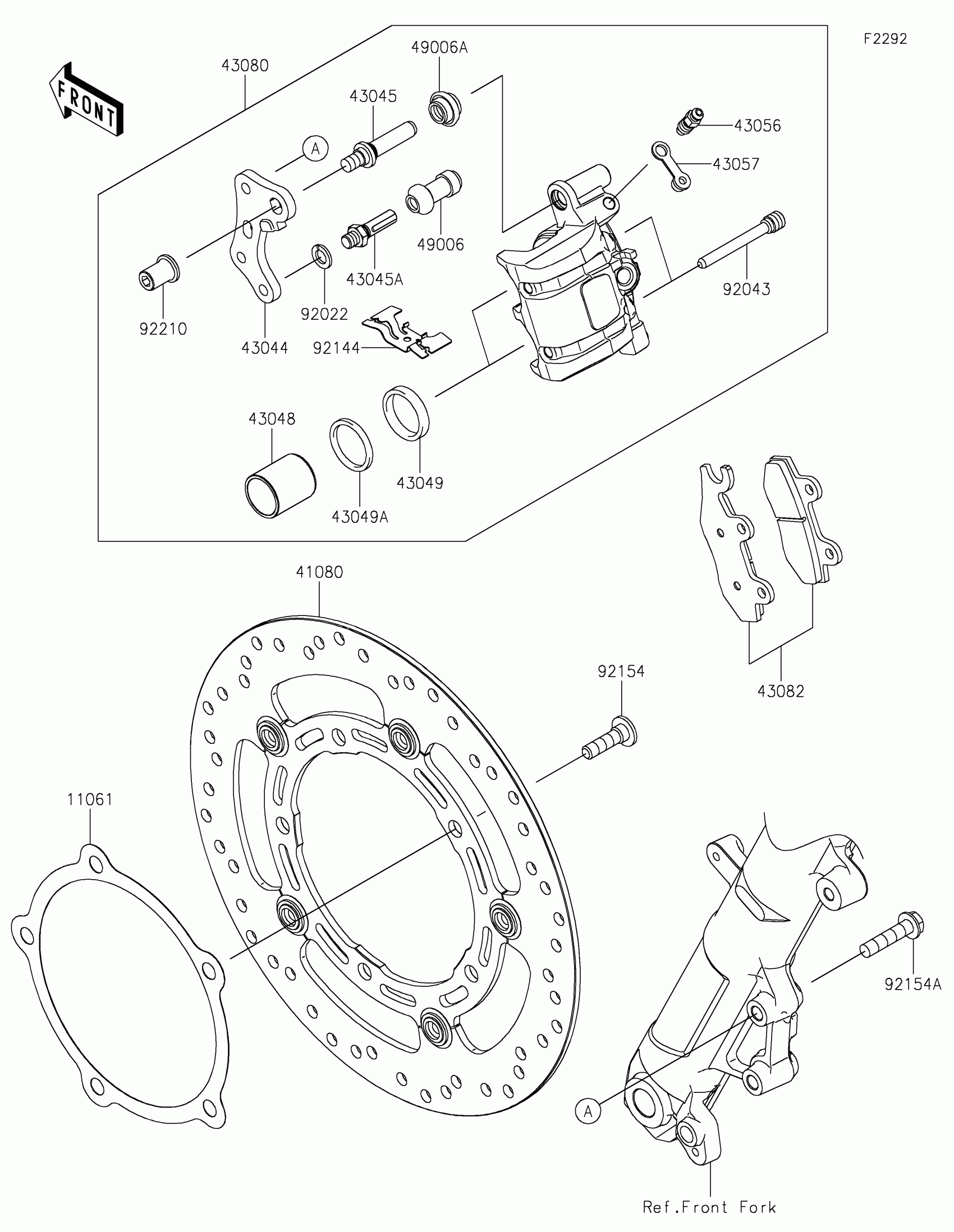

Kawasaki NINJA® 500 ABS Front Brake Diagram

Description

Price

11061

GASKET,DISC PLATE

11061-1629

$35.17

41080

DISC,FR,BLACK+BLK

41080-0764-32L

Unavailable

43044

HOLDER-COMP-CALIPER

43044-1112

$120.68

43045

SHAFT-CALIPER

43045-0013

$19.49

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0244-DJ

$409.71

43082

PAD-ASSY-BRAKE

43082-0175

$52.70

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1507

$10.44

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92154A

BOLT,FLANGED,8X35

92154-4406

$4.39

92210

NUT

92210-0615

$5.46
