2025 Kawasaki Ninja® 500 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

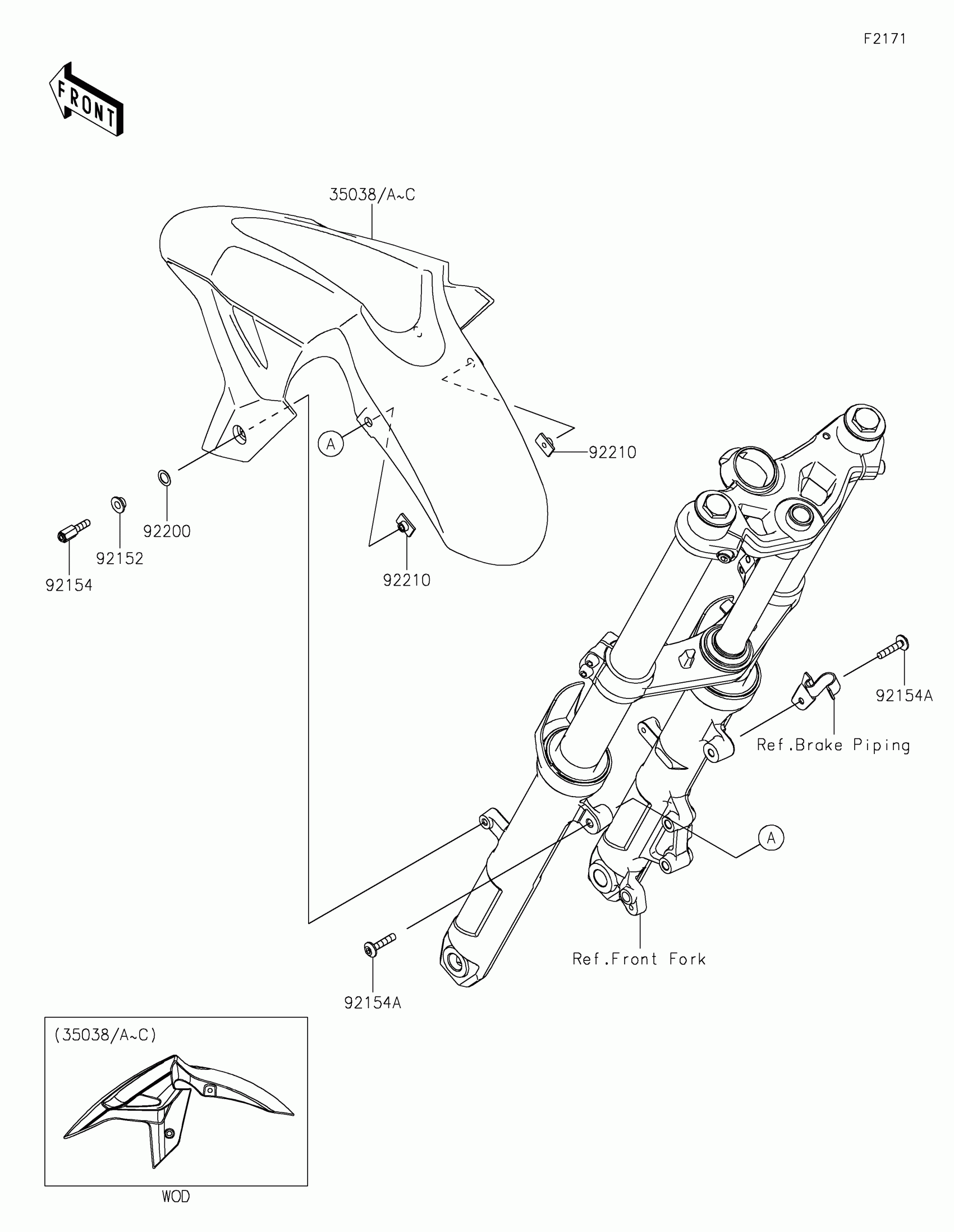

2025 Kawasaki Ninja® 500 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038A

FENDER-FRONT,M.C.GRAY

35038-0065-51A

1

$191.27

In stock

35038B

FENDER-FRONT,M.M.W.SILVER

35038-0065-63V

1

$191.27

In stock

92152

1

$6.25

In stock

92154

BOLT,6X20,WHITE

92154-0884

1

$7.86

In stock

92154A

BOLT,SOCKET,6X30

92154-4422

1

$1.39

In stock

92200

1

$0.80

In stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
