Description

Price

11057

BRACKET,BATTERY

11057-1605

$1.78

13272

PLATE,LH

13272-4271

$14.86

13272A

PLATE,RH

13272-4287

$12.36

14093

COVER,ECU

14093-1531

$42.85

23062

BRACKET-COMP,CROSS FRAME

23062-1494

$33.06

32036

BRACKET-SWINGARM,LH

32036-0378

$47.03

32036A

BRACKET-SWINGARM,RH

32036-0379

$55.90

32037

BRACKET-SHOCKABSORBER,LH

32037-0455

$15.51

32037A

BRACKET-SHOCKABSORBER,RH

32037-0456

$15.51

32099

CASE,SEAT UNDER

32099-0787

$10.59

39156

PAD,BATTERY CASE

39156-2220

$16.31

92015

NUT,WELL,5MM

92015-1757

$5.58

92043

PIN,6X23

92043-0746

$1.68

92154

BOLT,FLANGED,10X40

92154-2812

$3.70

92154A

BOLT,FLANGED,10X54

92154-2813

$5.34

92154B

BOLT-FLANGED,8X14

92154-3851

$1.66

92154C

BOLT-FLANGED,10X25

92154-4058

$3.15

92154D

BOLT,6X14

92154-4129

$0.88

92154E

BOLT,FLANGED,10X65

92154-4394

$10.49

92161

DAMPER,9.5X18X6

92161-1473

$1.24

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

130

BOLT-FLANGED,5X14

130BA0514

$1.49

130A

BOLT-FLANGED,8X18

130CA0818

$1.81

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

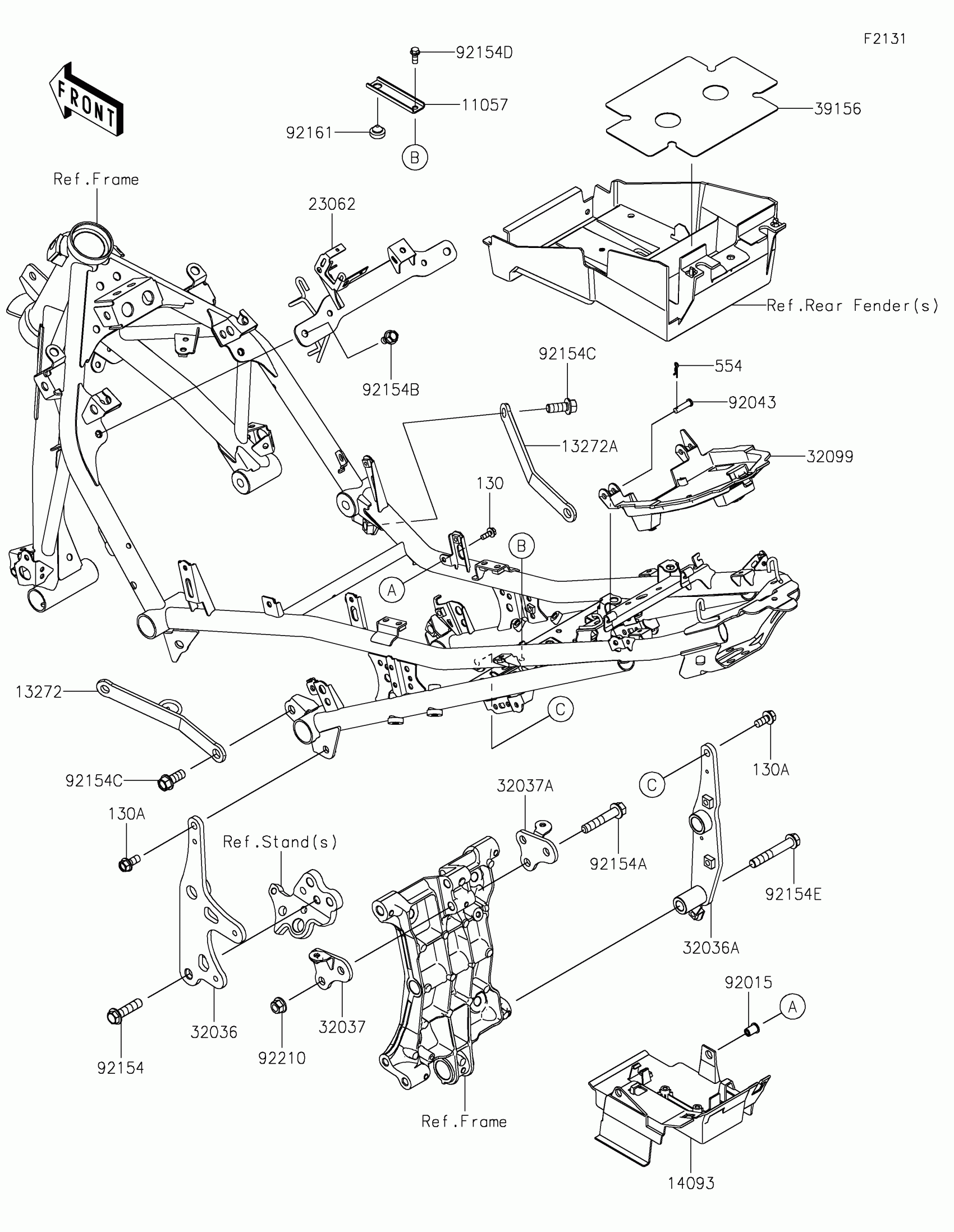

Kawasaki NINJA® 500 ABS Frame Fittings Diagram
