2021 Kawasaki Ninja® 400 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

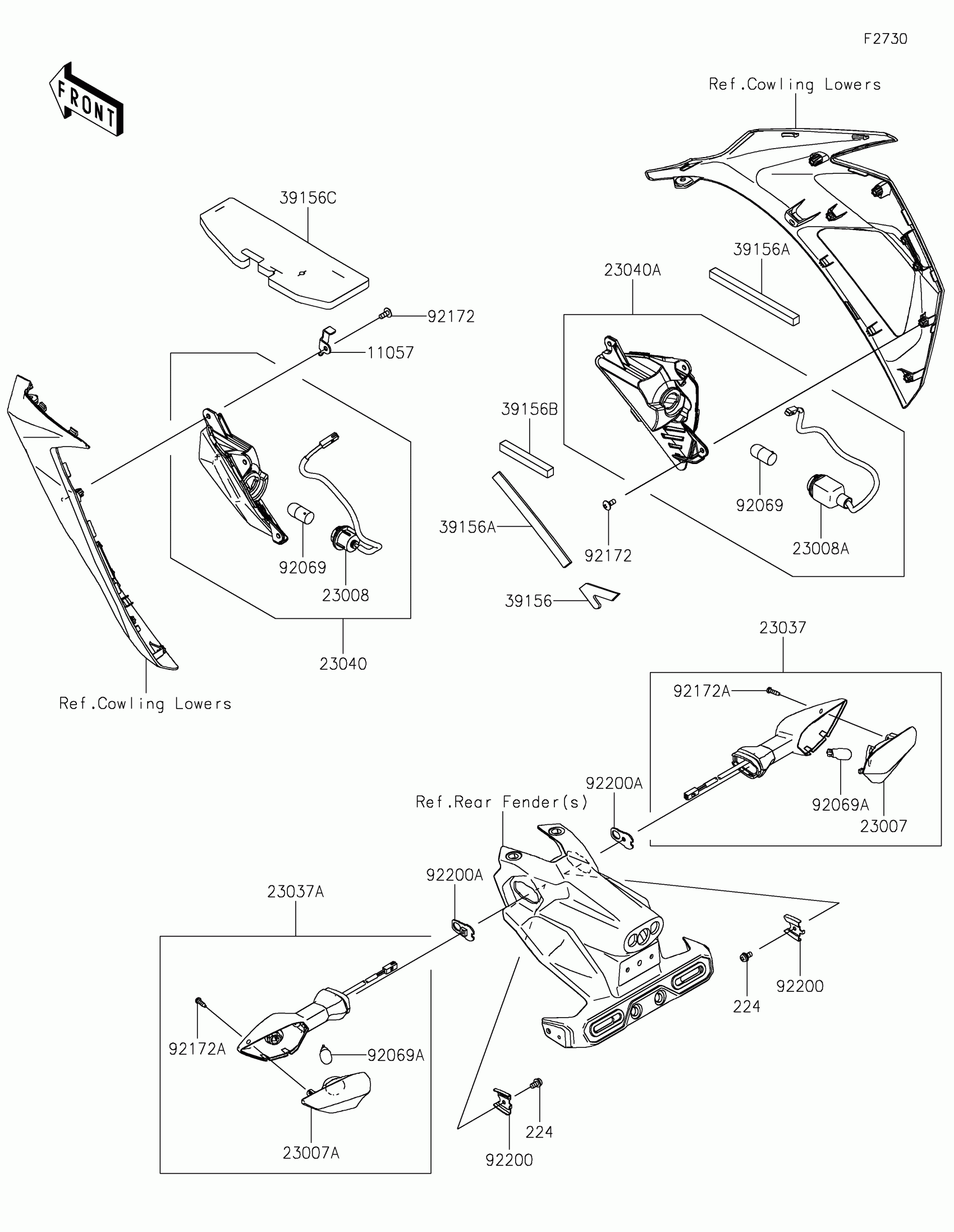

2021 Kawasaki Ninja® 400 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1614

1
Out of stock

23007

LENS-COMP

23007-0228

1
Out of stock

23007A

LENS-COMP

23007-0229

1
Out of stock

23008

SOCKET-ASSY,BLACK

23008-0191

1
Out of stock

23008A

SOCKET-ASSY,GRAY

23008-0192

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR RH

23037-0430

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR LH

23037-0431

1
Out of stock

23040

LAMP-SIGNAL,FR LH

23040-0153

1
Out of stock

23040A

LAMP-SIGNAL,FR RH

23040-0154

1
Out of stock

39156

1

$4.85

In stock

39156A

PAD,10X140X10

39156-2360

1
Out of stock

39156B

PAD,10X80X10

39156-2381

1
Out of stock

39156C

PAD,87X236X10

39156-2382

1
Out of stock

92069

BULB,12V 10W

92069-0058

1
Out of stock

92069A

BULB,12V 10W

92069-0090

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92172A

SCREW,4X14

92172-1117

1
Out of stock

92200

WASHER

92200-0855

1
Out of stock

92200A

WASHER,NUT,4MM

92200-2222

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
