2021 Kawasaki Ninja® 400 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

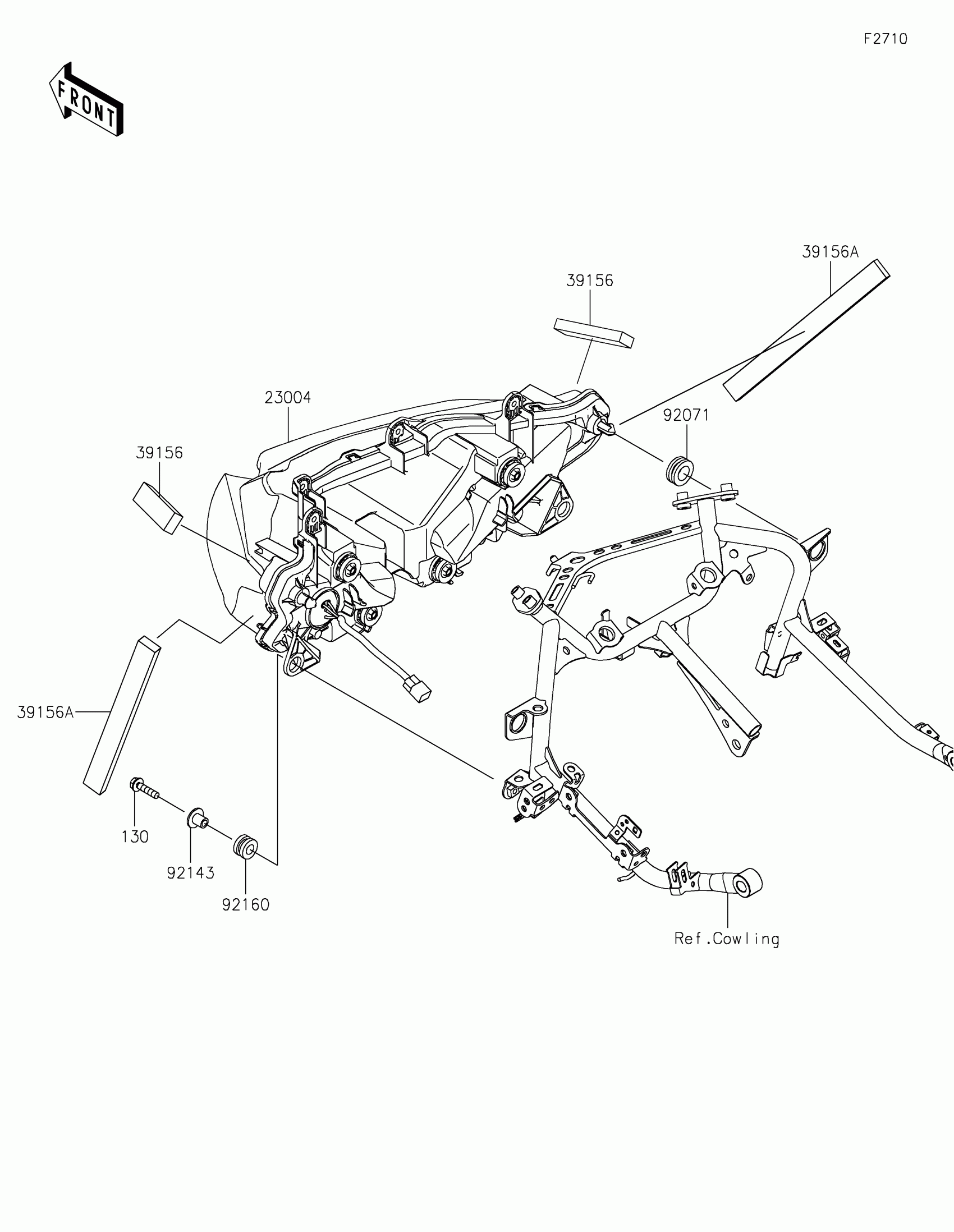

2021 Kawasaki Ninja® 400 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0395

1
Out of stock

39156

PAD,20X80X10

39156-2358

1
Out of stock

39156A

PAD,20X200X10

39156-2359

1
Out of stock

92071

GROMMET

92071-1131

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
