2021 Kawasaki Ninja® 400 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

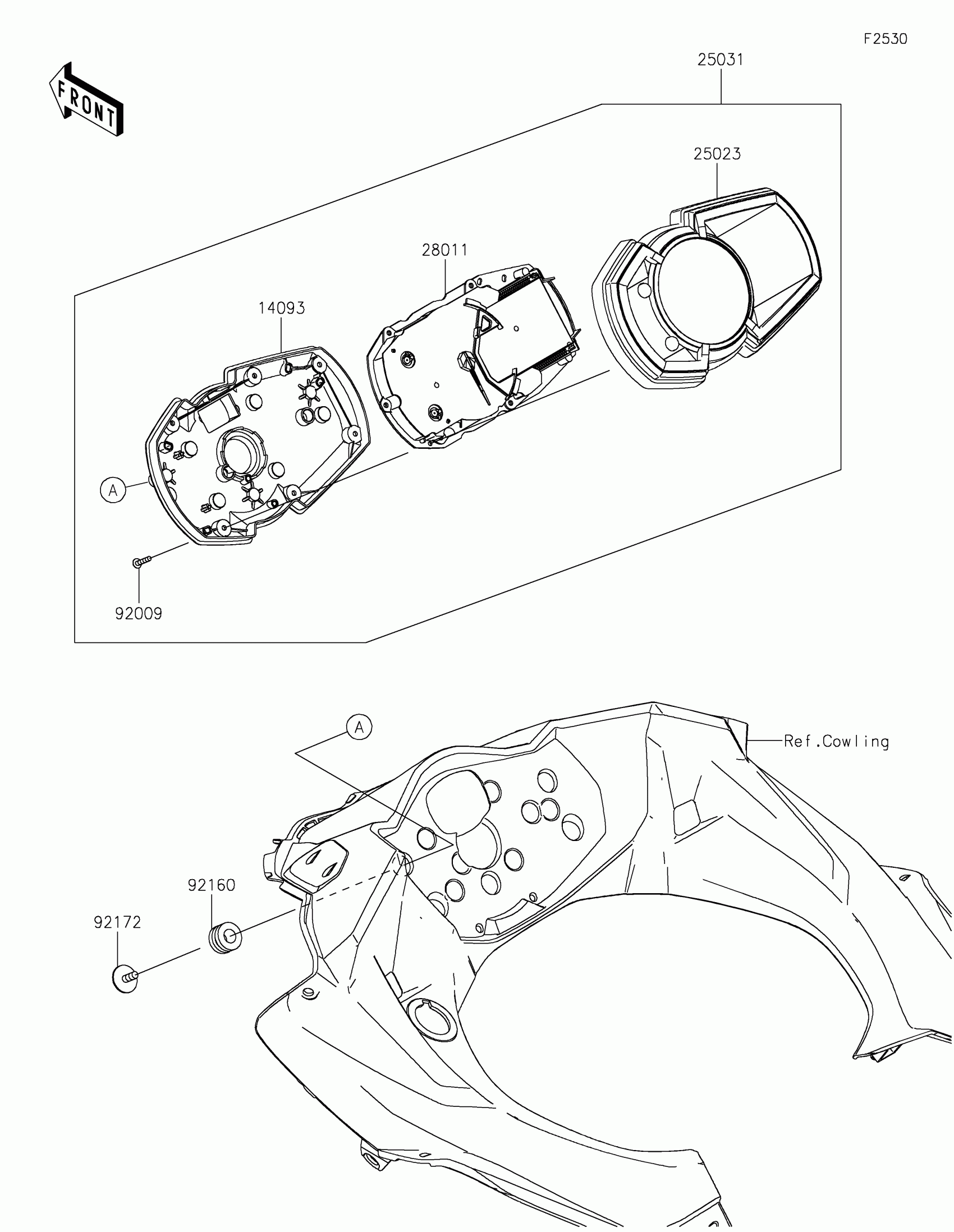

2021 Kawasaki Ninja® 400 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,METER,LWR

14093-0513

1
Out of stock

25023

COVER-METER CASE

25023-0141

1
Out of stock

25031

METER-ASSY,COMBINATION

25031-0908

1
Out of stock

28011

METER

28011-0698

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92172

SCREW,CROSS,5X14

92172-1226

1
Out of stock
