2021 Kawasaki Ninja® 400 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

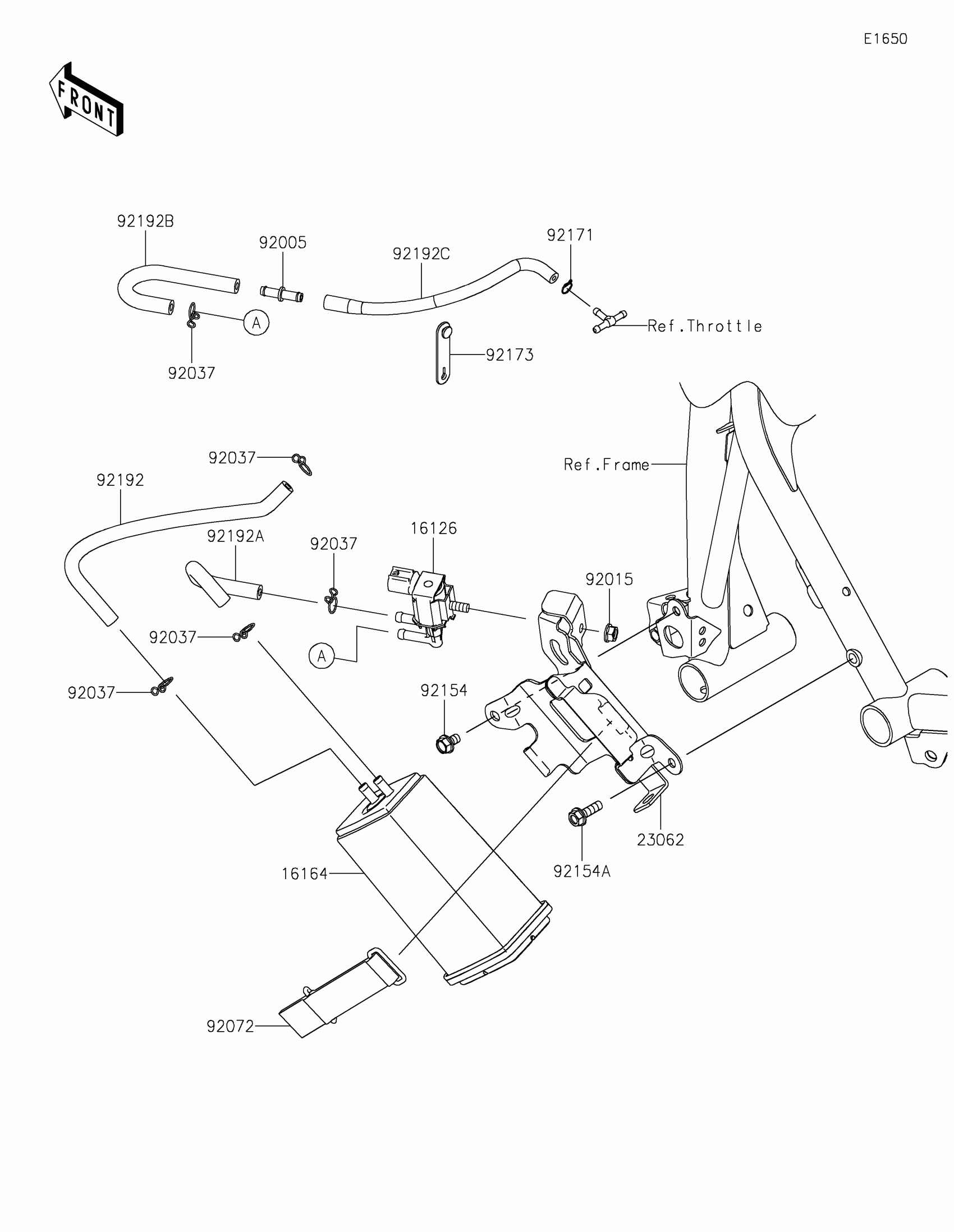

2021 Kawasaki Ninja® 400 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

23062

1

$25.00

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92072

BAND,CANISTER

92072-0815

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2939

1

$0.88

In stock

92154A

BOLT-FLANGED,6X20

92154-3812

1

$1.27

In stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92173

CLAMP,RUBBER PLATE

92173-1229

1

$3.56

In stock

92192

1

$31.04

In stock

92192A

1

$23.83

In stock

92192B

1

$25.24

In stock

92192C

1

$46.78

In stock
