2014 Kawasaki Ninja® 300 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

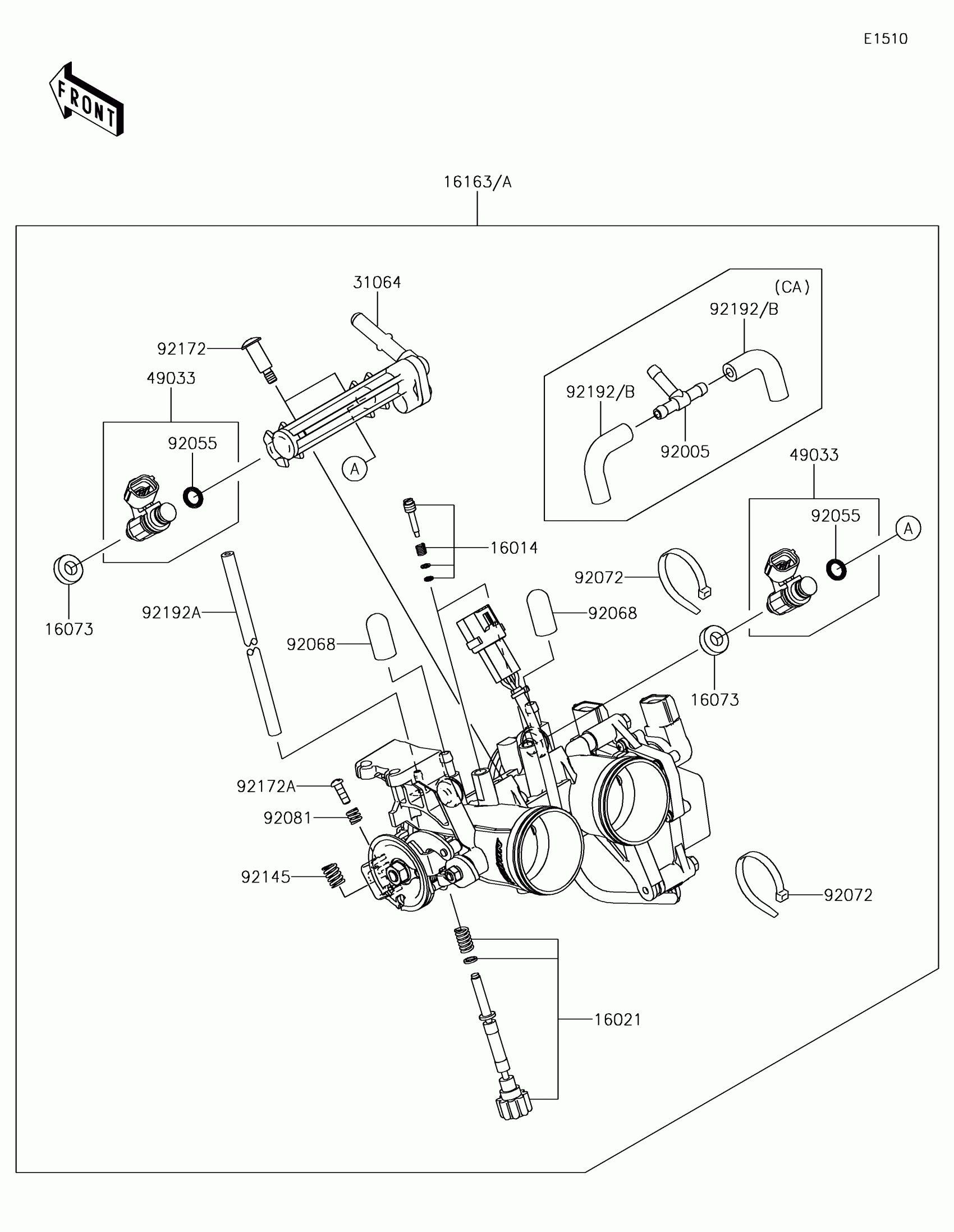

2014 Kawasaki Ninja® 300 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16021

SCREW-THROTTLE STOP

16021-0027

1

$74.22

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY,TTK32

16163-0746

1

$714.95

In stock

31064

PIPE-COMP,FUEL

31064-0164

1

$89.72

In stock

49033

NOZZLE-INJECTION

49033-0558

1

$135.75

In stock

92055

1

$2.42

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92145

SPRING

92145-0656

1

$5.97

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0129

1

$4.92

In stock

92192A

TUBE,3X7X200

92192-1170

1
Out of stock
