2014 Kawasaki Ninja® 300 Clutch Diagram

← All diagrams

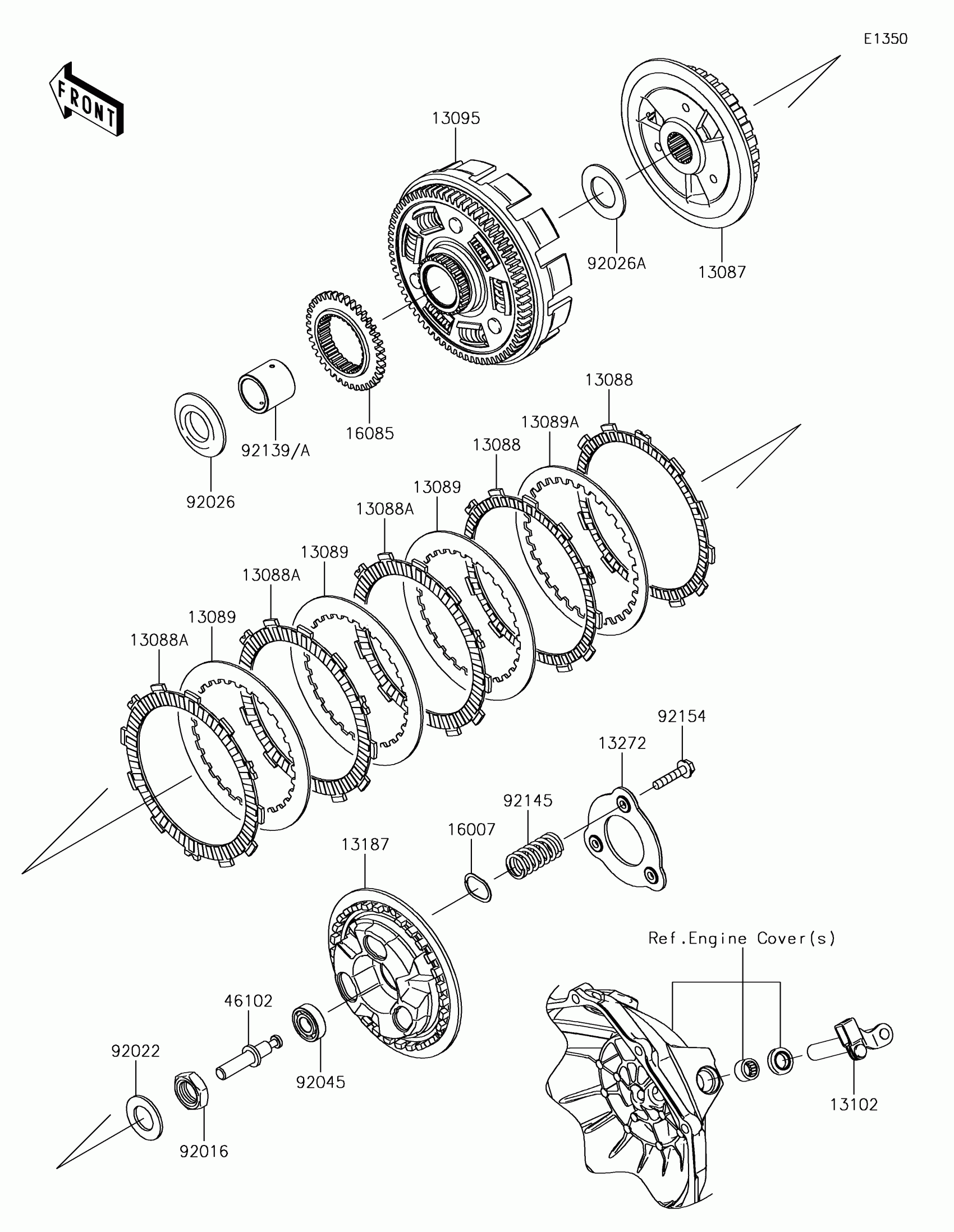

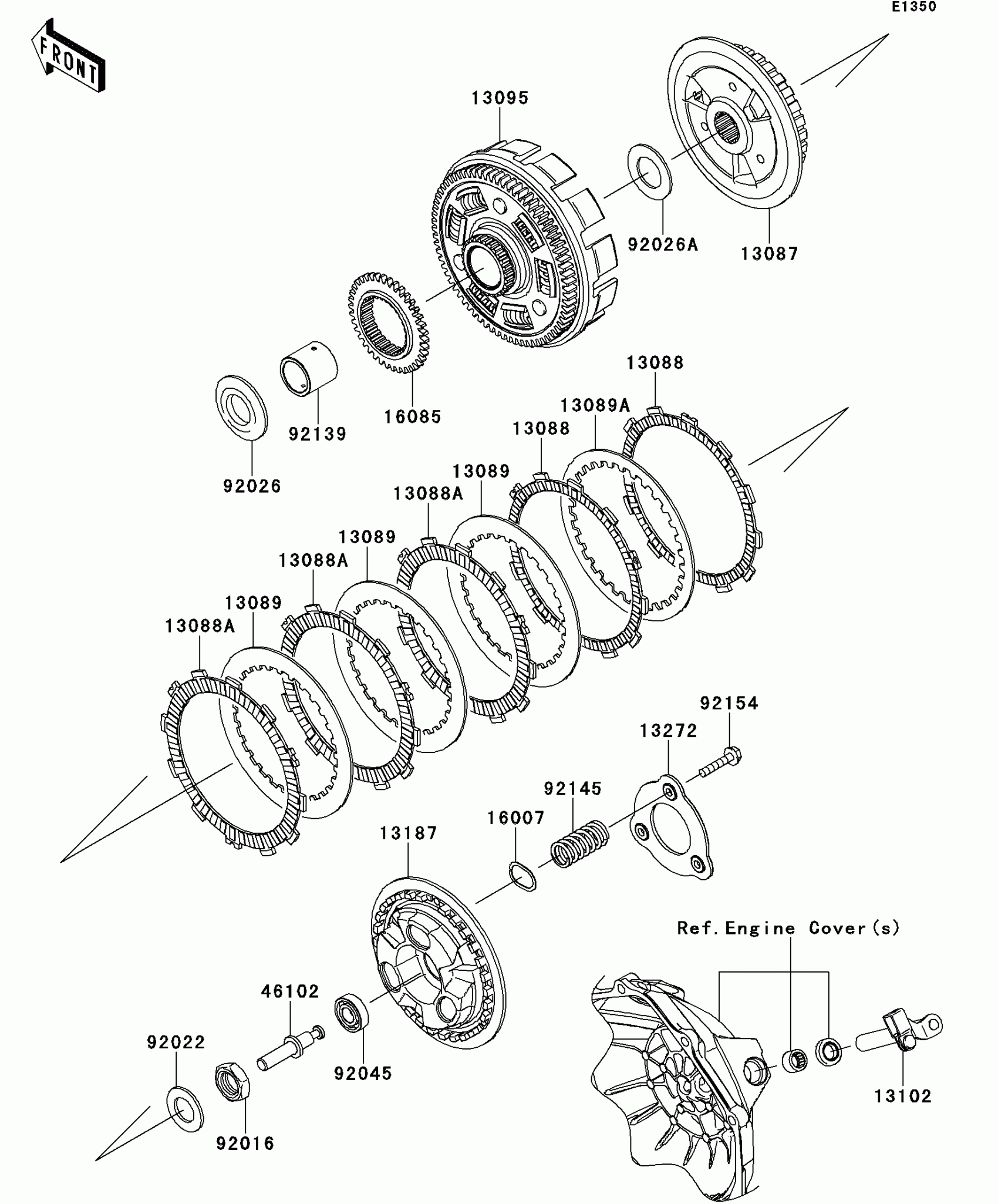

Find the part on the Clutch diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Ninja® 300 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0558

1

$124.50

In stock

13088

PLATE-FRICTION

13088-0557

1

$12.59

In stock

13088A

PLATE-FRICTION

13088-0558

1

$12.97

In stock

13089

PLATE-CLUTCH,T=2.0

13089-0021

1

$9.35

In stock

13089A

PLATE-CLUTCH

13089-0558

1

$9.40

In stock

13095

HOUSING-COMP-CLUTCH

13095-0561

1

$485.97

In stock

13102

RELEASE-COMP-CLUTCH

13102-0040

1

$61.78

In stock

13187

1

$99.01

In stock

13272

PLATE

13272-1303

1

$18.05

In stock

16007

SEAT-SPRING

16007-0708

1

$3.24

In stock

16085

1

$122.91

In stock

46102

ROD

46102-0573

1

$33.91

In stock

92016

NUT,20MM

92016-028

1

$7.86

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25X52X5.5

92026-0115

1
Out of stock

92026A

SPACER,25.5X44.5X2

92026-0734

1
Out of stock

92045

BEARING-BALL

92045-0067

1
Out of stock

92139

BUSHING,25X32X29.1

92139-0773

1

$25.00

In stock

92145

SPRING

92145-0911

1

$7.42

In stock

92154

BOLT,UPSET,6X30

92154-0997

1

$2.68

In stock
