2014 Kawasaki Ninja® 300 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

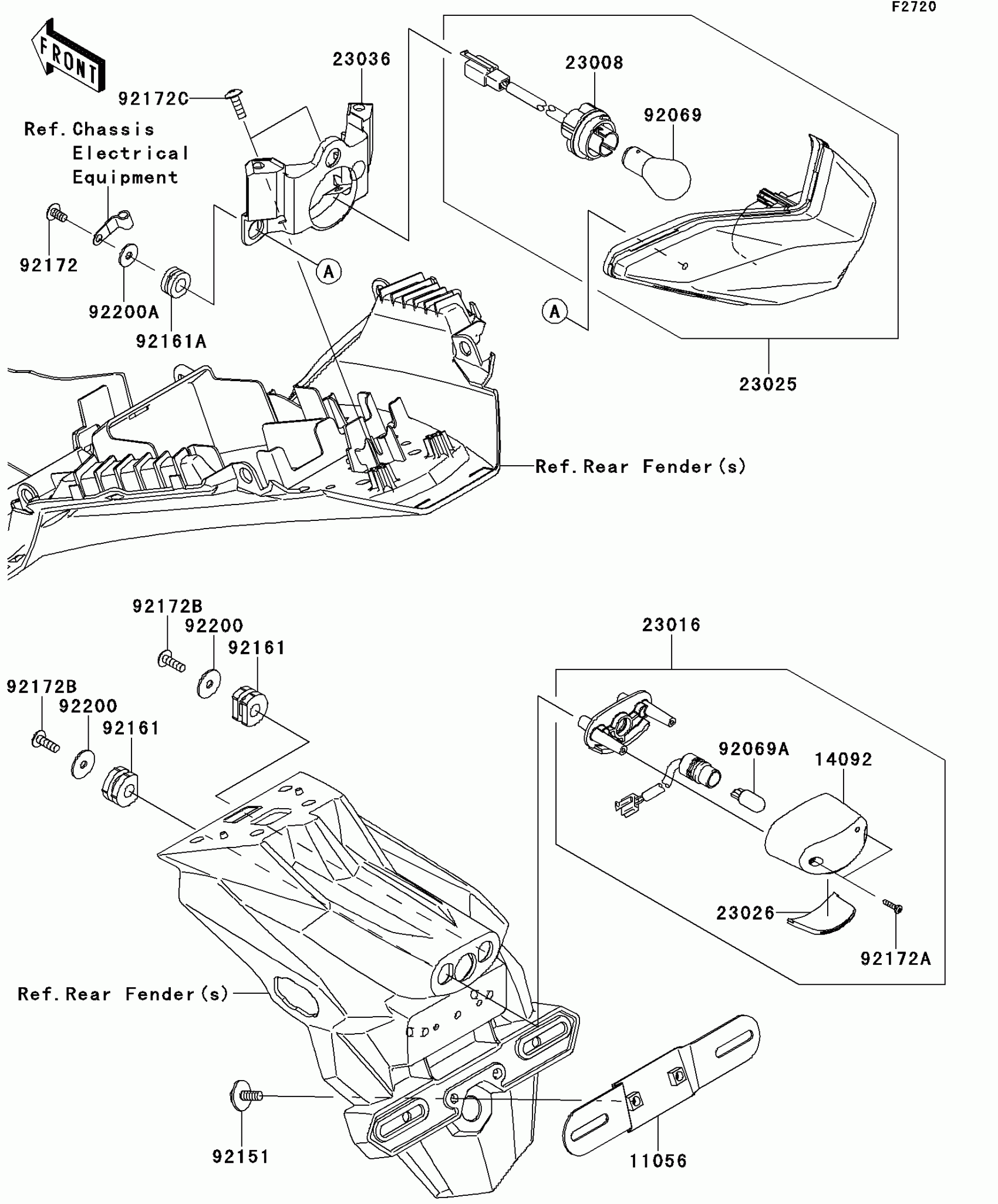

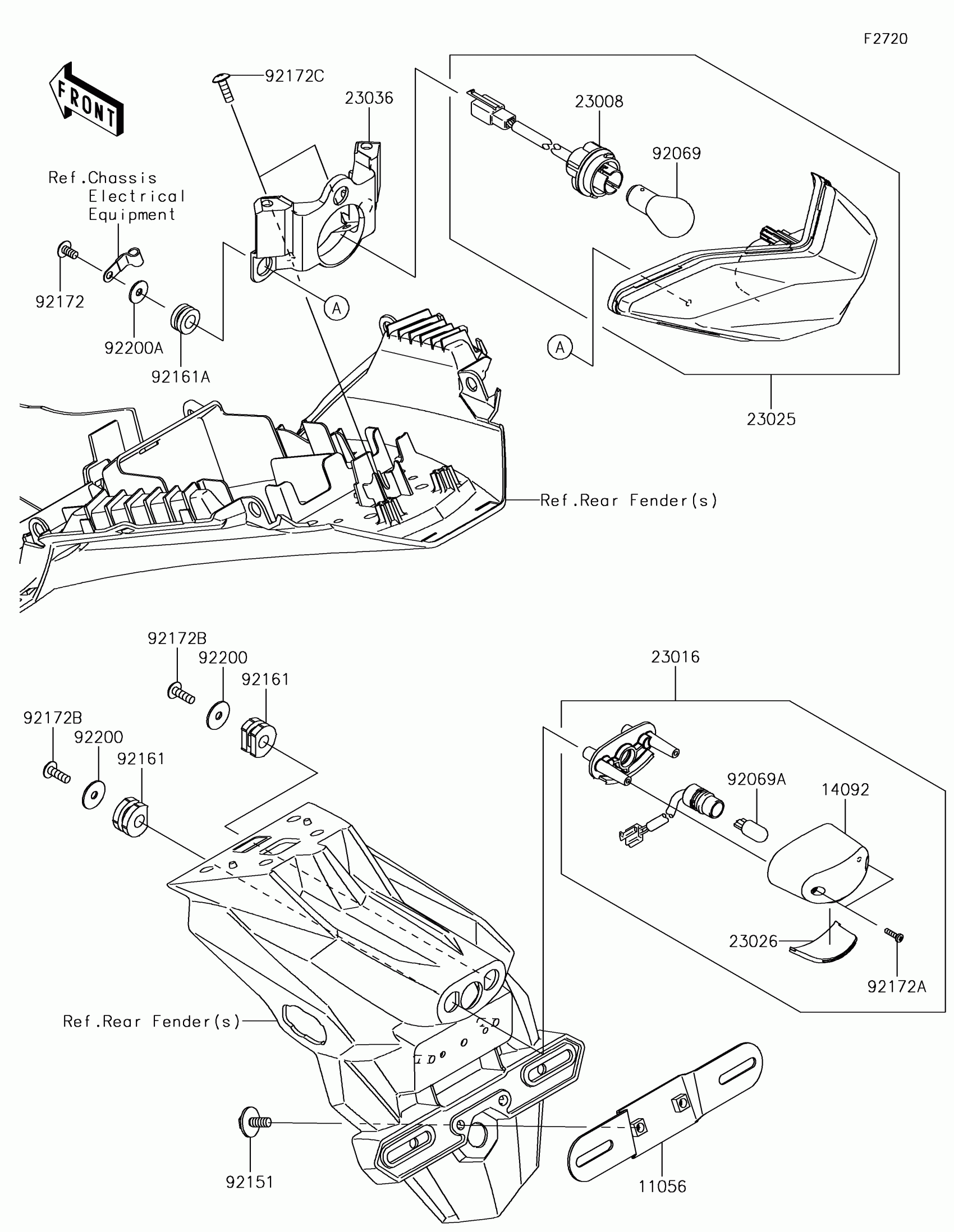

2014 Kawasaki Ninja® 300 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$18.61

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23008

SOCKET-ASSY

23008-0138

1

$46.09

In stock

23016

LAMP-ASSY,LICENCE

23016-0557

1

$73.13

In stock

23025

LAMP-TAIL

23025-0326

1

$127.98

In stock

23026

LENS,LICENSE LAMP

23026-0015

1

$29.34

In stock

23036

BRACKET-TAIL LAMP

23036-0304

1

$5.03

In stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92151

BOLT,6X25

92151-1241

1

$3.97

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER

92161-1462

1

$1.10

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92172A

1

$1.53

In stock

92172B

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172C

SCREW,TAPPING,5X16

92172-0742

1

$1.66

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

92200A

WASHER,5.2X16X1.2

92200-0583

1
Out of stock
