2014 Kawasaki Ninja® 300 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

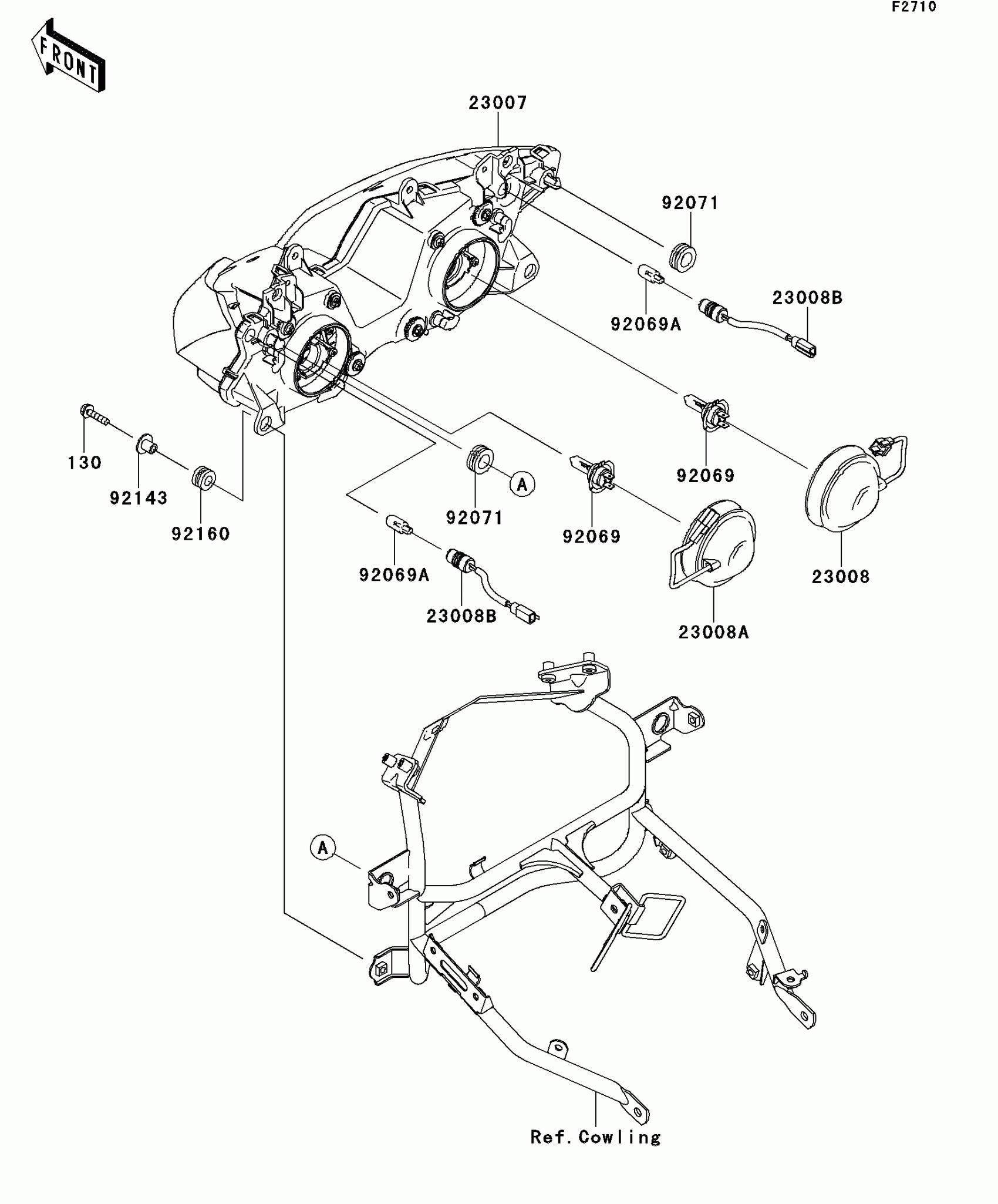

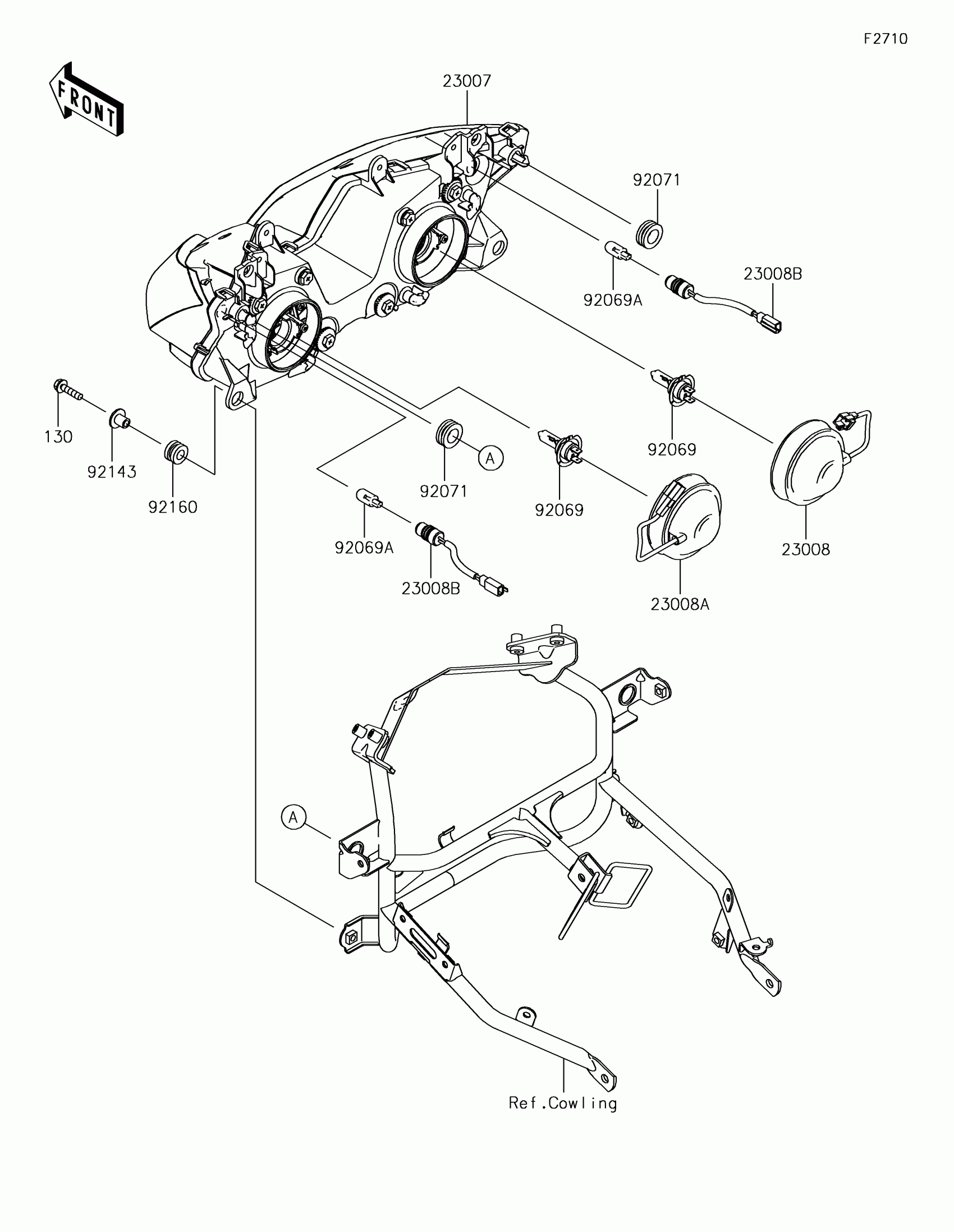

2014 Kawasaki Ninja® 300 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP

23007-0174

1

$369.16

In stock

23008

SOCKET-ASSY,LO BEAM

23008-0135

1

$44.96

In stock

23008A

SOCKET-ASSY,HI BEAM

23008-0136

1

$50.60

In stock

23008B

1

$84.48

In stock

92069

BULB,12V 55W,H7

92069-0053

1

$39.00

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92071

GROMMET

92071-1131

1

$6.18

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
