2014 Kawasaki Ninja® 300 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

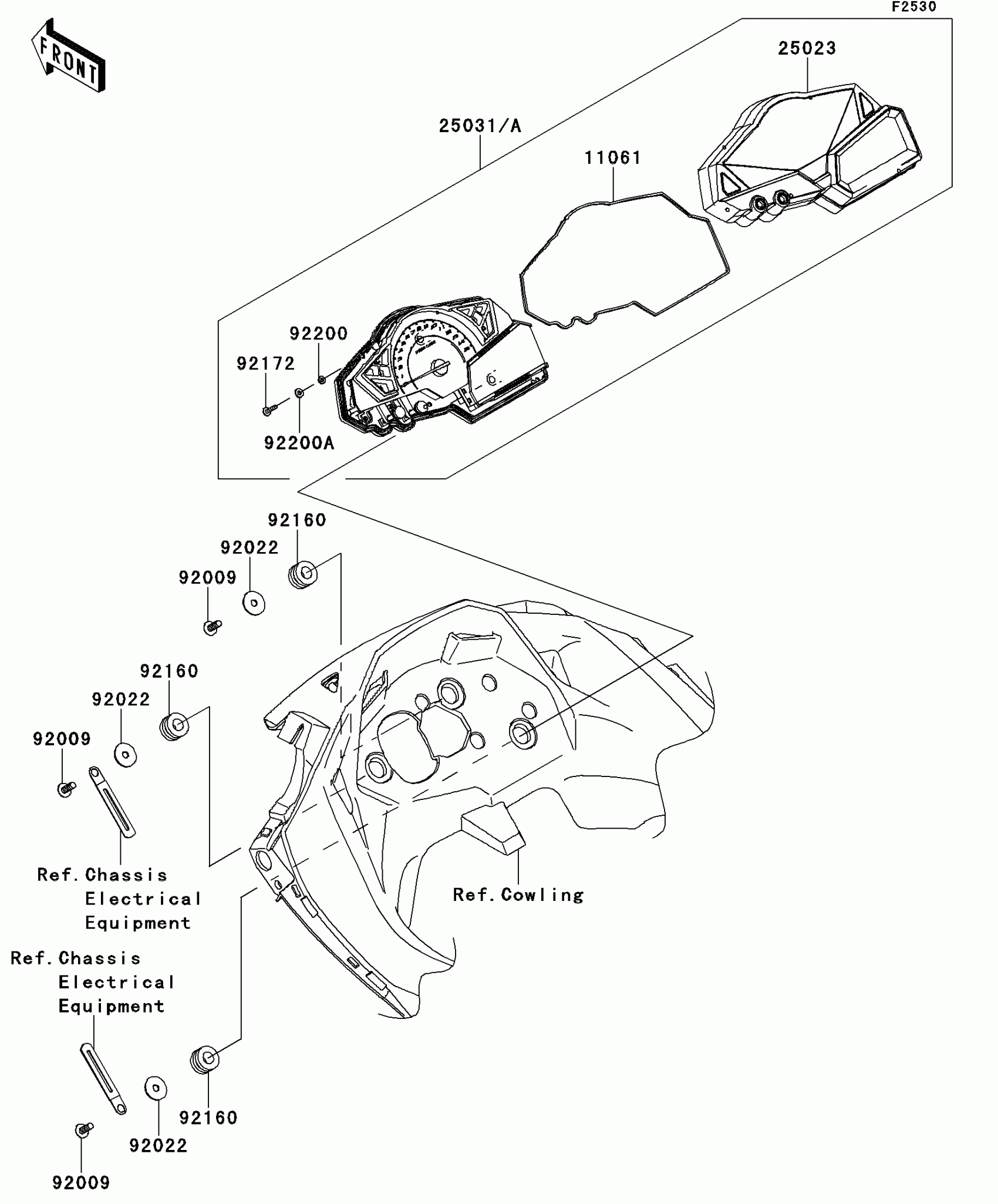

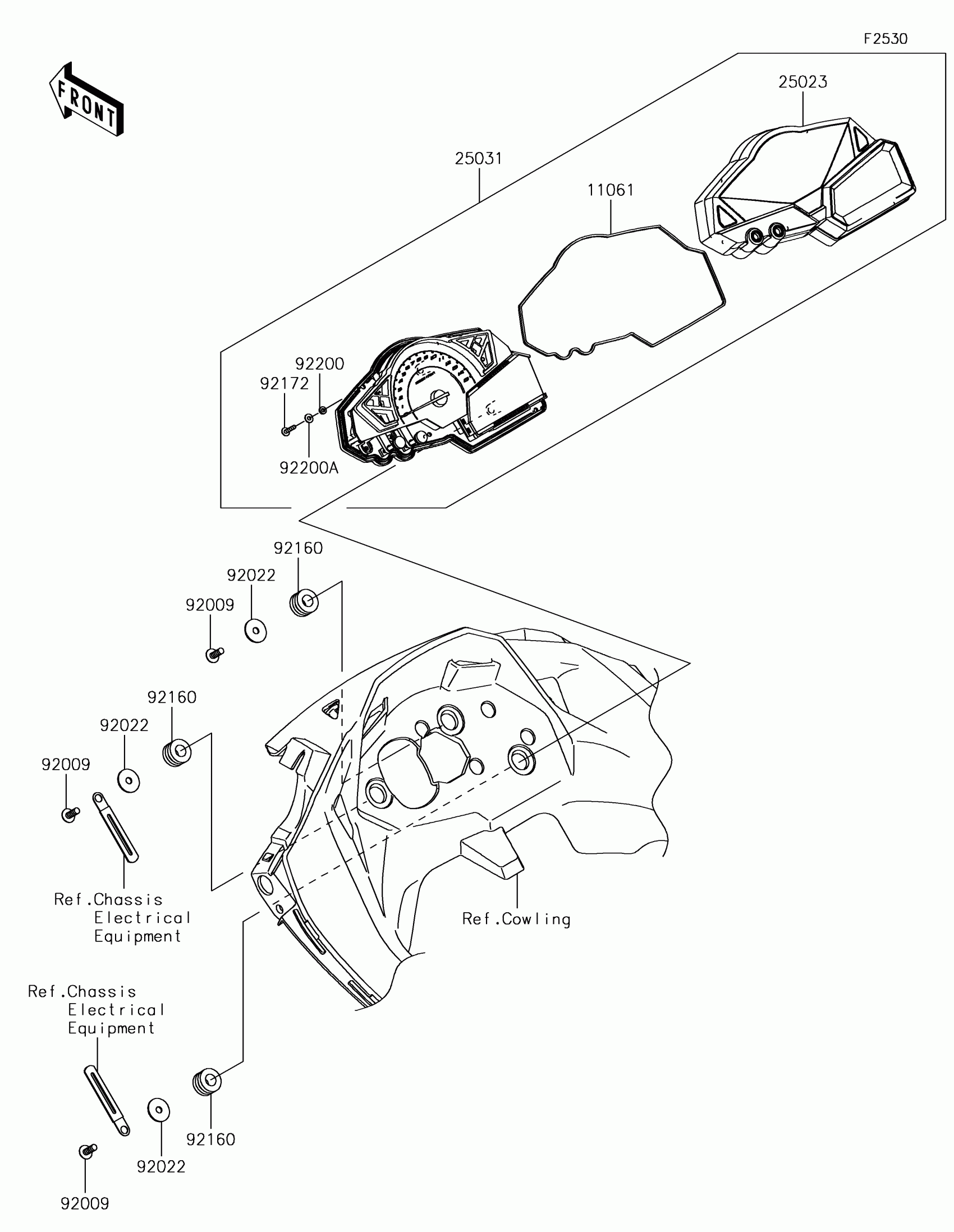

2014 Kawasaki Ninja® 300 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,SPACER

11061-1203

1

$13.95

In stock

25023

COVER-METER CASE

25023-0116

1

$73.71

In stock

25031A

METER-ASSY,COMBINATION

25031-0518

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92172

SCREW

92172-1097

1

$3.51

In stock

92200

WASHER,RUBBER

92200-1808

1
Out of stock

92200A

WASHER,STEEL

92200-1809

1
Out of stock
