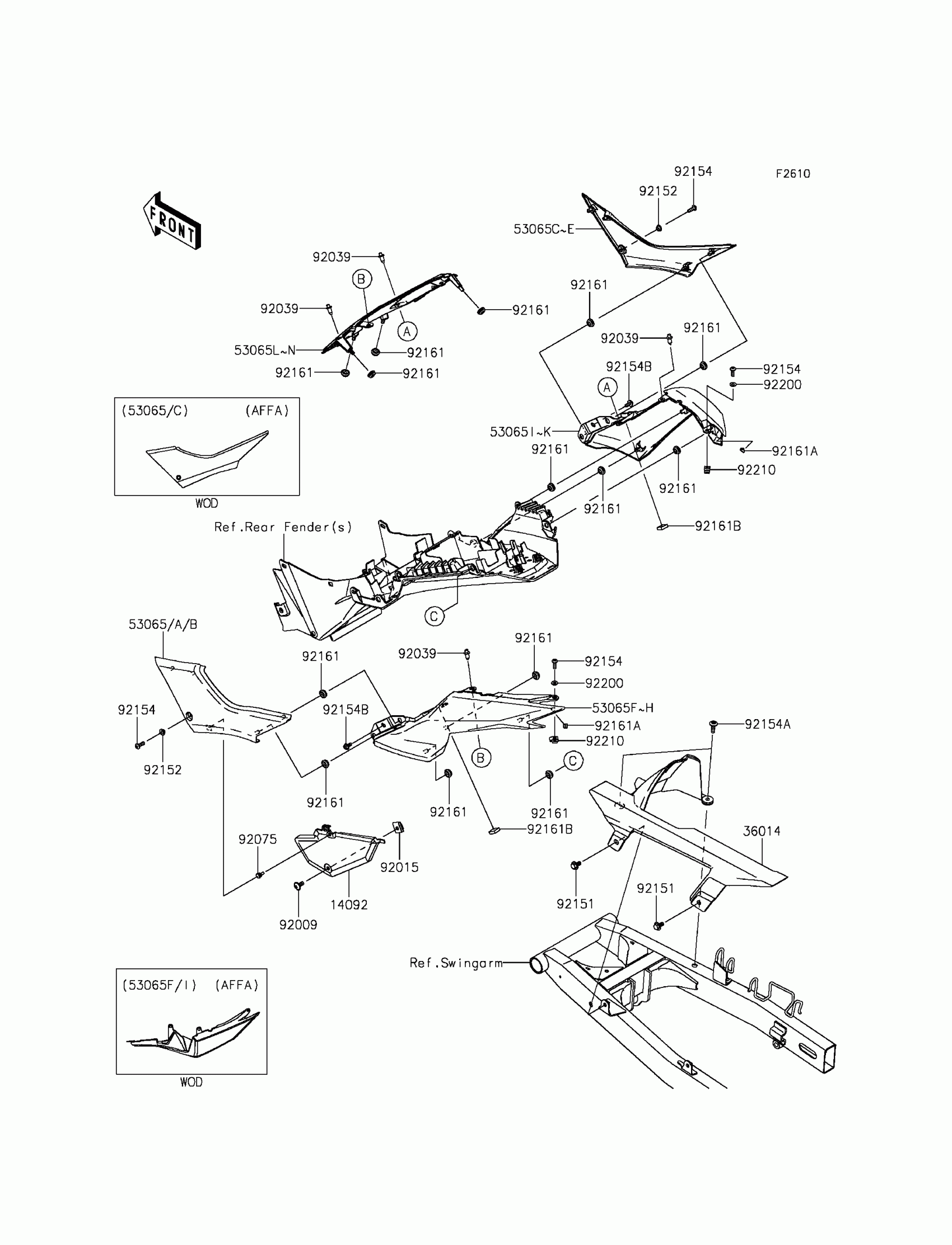

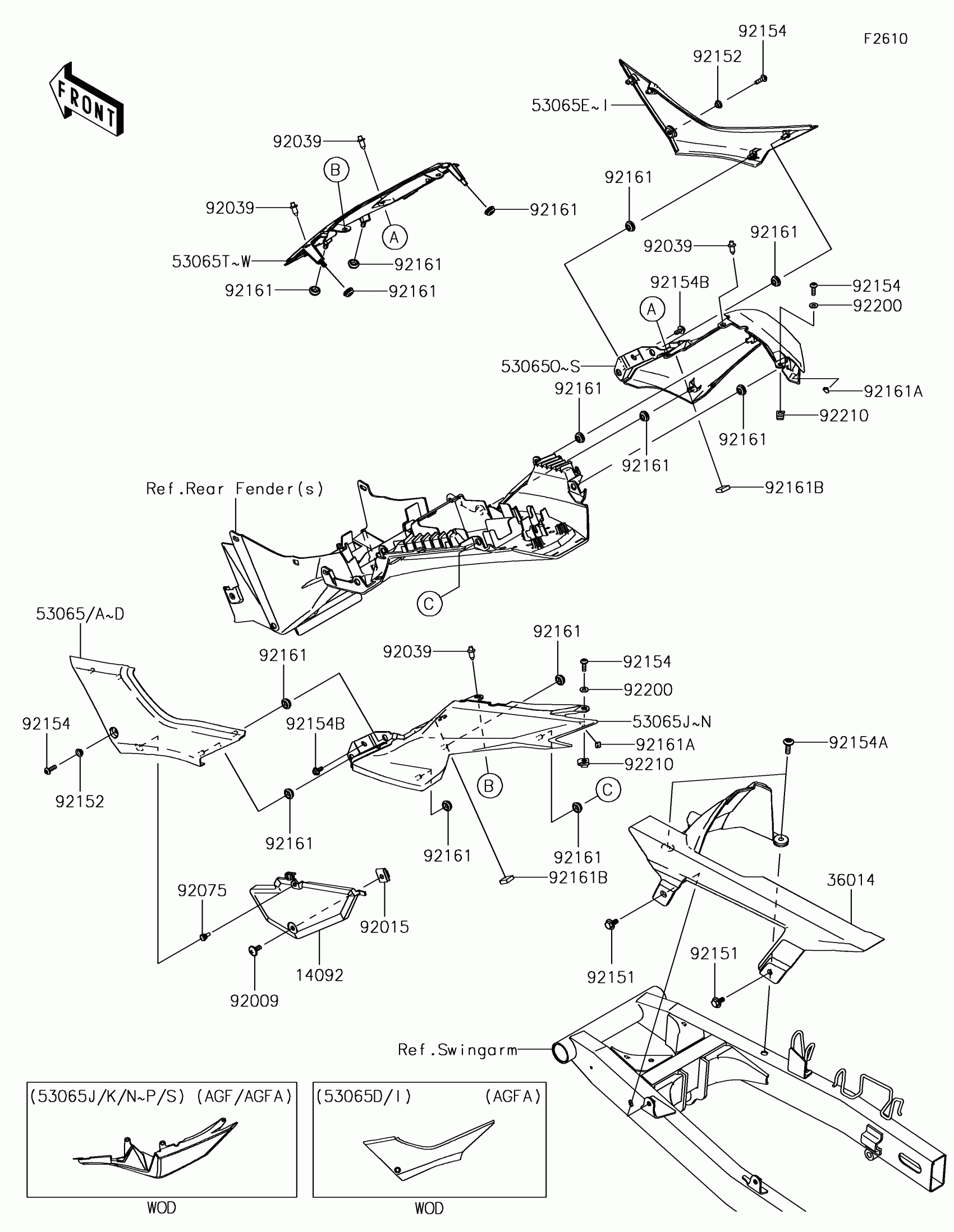

2015 Kawasaki Ninja® 300 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2015 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki Ninja® 300 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,FILTER CAP

14092-0954

1
Out of stock

36014

CASE-CHAIN

36014-0555

1

$62.56

In stock

53065A

1

$85.15

In stock

53065B

1

$90.04

In stock

53065D

1

$85.15

In stock

53065E

1

$90.04

In stock

53065G

1

$102.11

In stock

53065H

1

$96.54

In stock

53065J

1

$102.11

In stock

53065K

1

$96.54

In stock

53065M

COVER SEAT,CNT,P.S.WHITE

53065-0033-25Y

1

$58.33

In stock

53065N

COVER SEAT,CNT,L.GREEN

53065-0033-777

1

$55.13

In stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1531

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92075

DAMPER,6X10X15

92075-1808

1
Out of stock

92151

BOLT,FLANGED,6X13

92151-1703

1
Out of stock

92152

COLLAR,5.8X8.2X4.7

92152-1697

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0182

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-0918

1
Out of stock

92154B

BOLT,FLANGED,5X12

92154-1003

1
Out of stock

92161

DAMPER

92161-0631

1
Out of stock

92161A

DAMPER

92161-1459

1
Out of stock

92161B

DAMPER,15X15X5

92161-1522

1

$1.10

In stock

92200

WASHER,NYLON,5.2X12X1

92200-1011

1
Out of stock

92210

NUT,5MM

92210-0817

1
Out of stock
