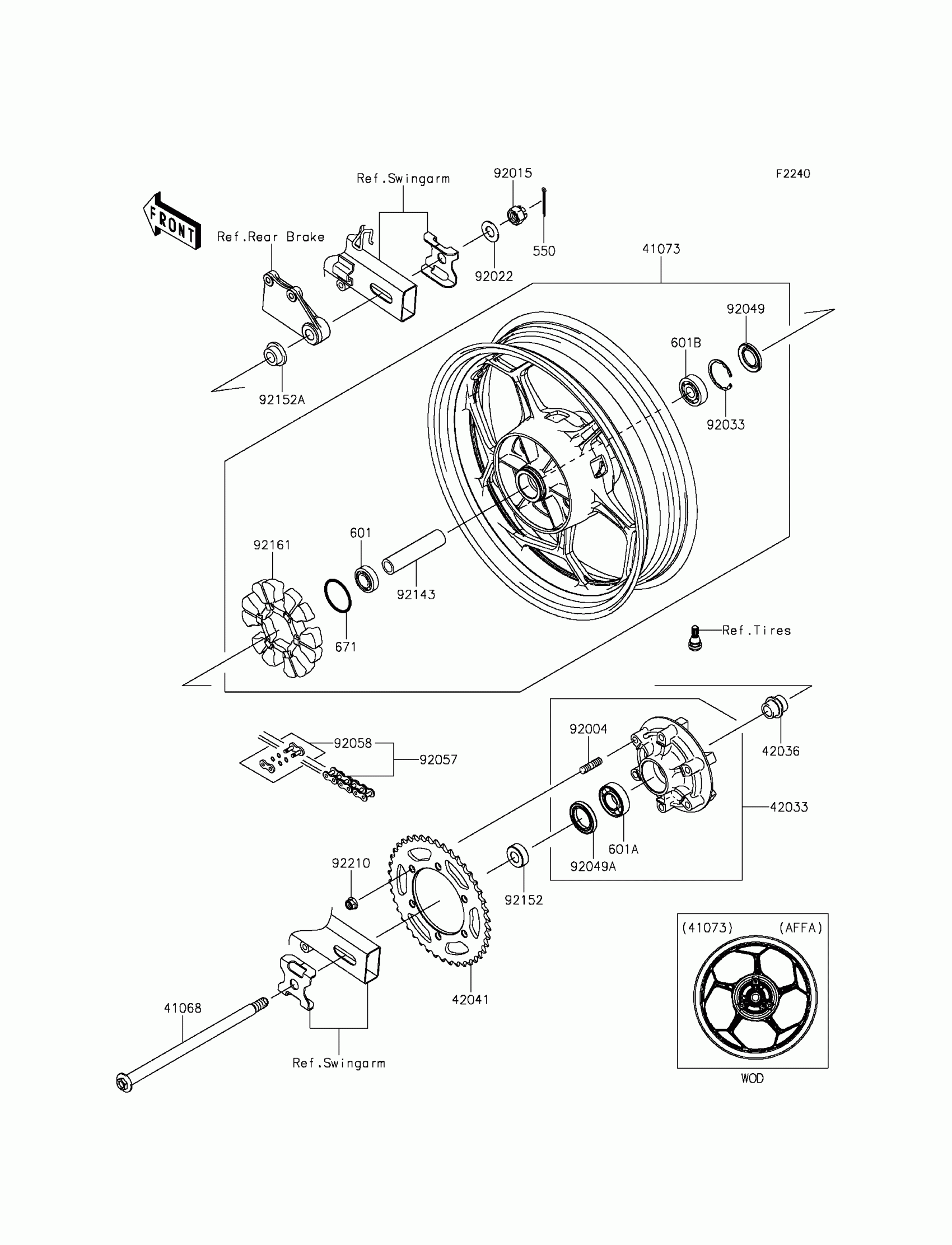

2015 Kawasaki Ninja® 300 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2015 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki Ninja® 300 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

671

O RING

671B2550

1
Out of stock

41068

AXLE,RR

41068-1223

1
Out of stock

41073

WHEEL-ASSY,RR,G.BLACK

41073-0657-18F

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0044

1
Out of stock

42036

SLEEVE,RR HUB,L=30

42036-1055

1
Out of stock

42041

SPROCKET-HUB,42T

42041-0118

1
Out of stock

92004

STUD,10X19

92004-0028

1
Out of stock

92015

NUT,CASTLE,16MM

92015-1947

1
Out of stock

92022

WASHER,17.5X34X2.0

92022-1916

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-1102

1
Out of stock

92143

COLLAR,RR HUB,L=111

92143-1416

1
Out of stock

92152

COLLAR,17X35X13

92152-0843

1
Out of stock

92152A

COLLAR,17X28(38)X15

92152-0844

1
Out of stock

92161

DAMPER,RR HUB SHOCK

92161-0700

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
