2014 Kawasaki Ninja® 300 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

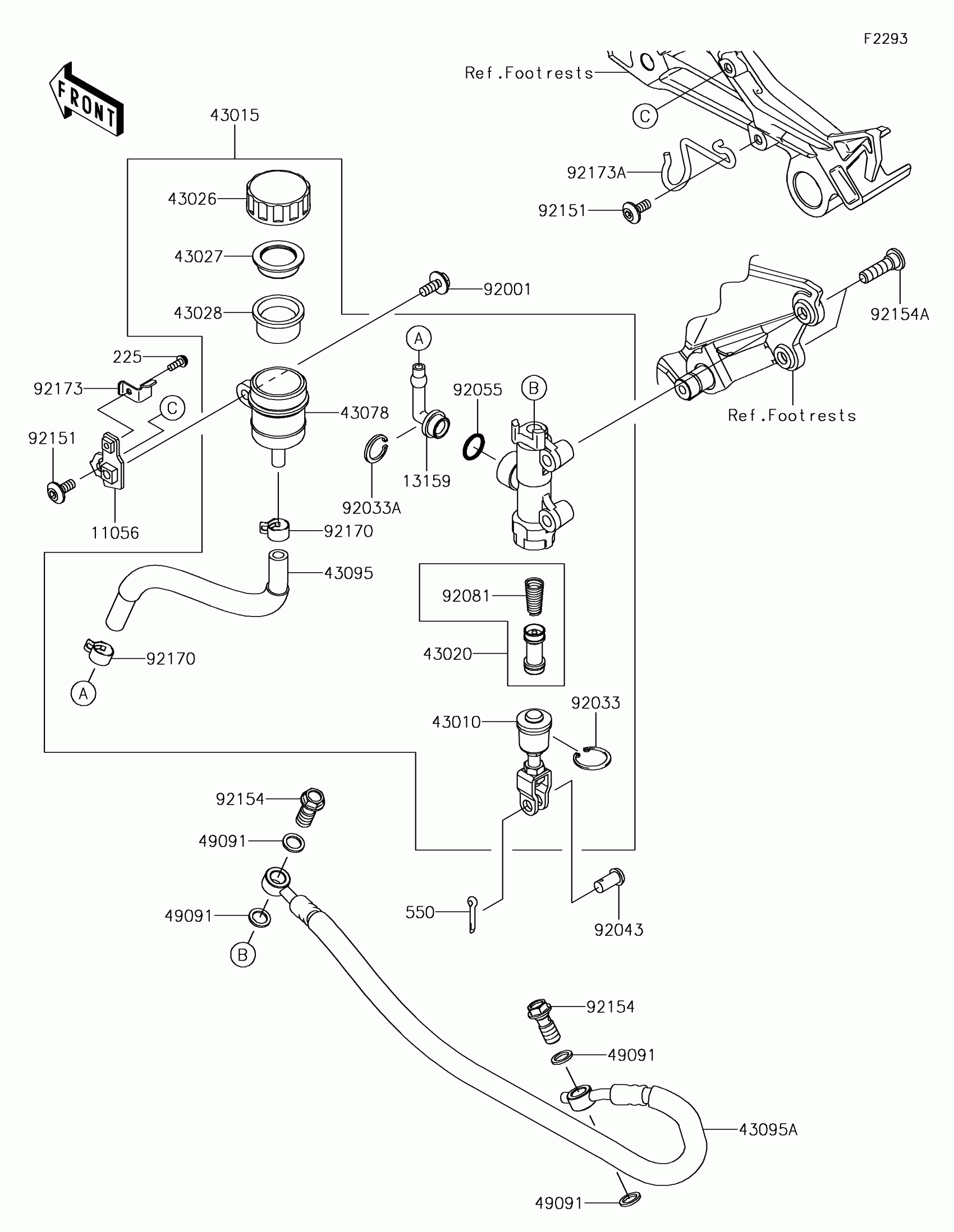

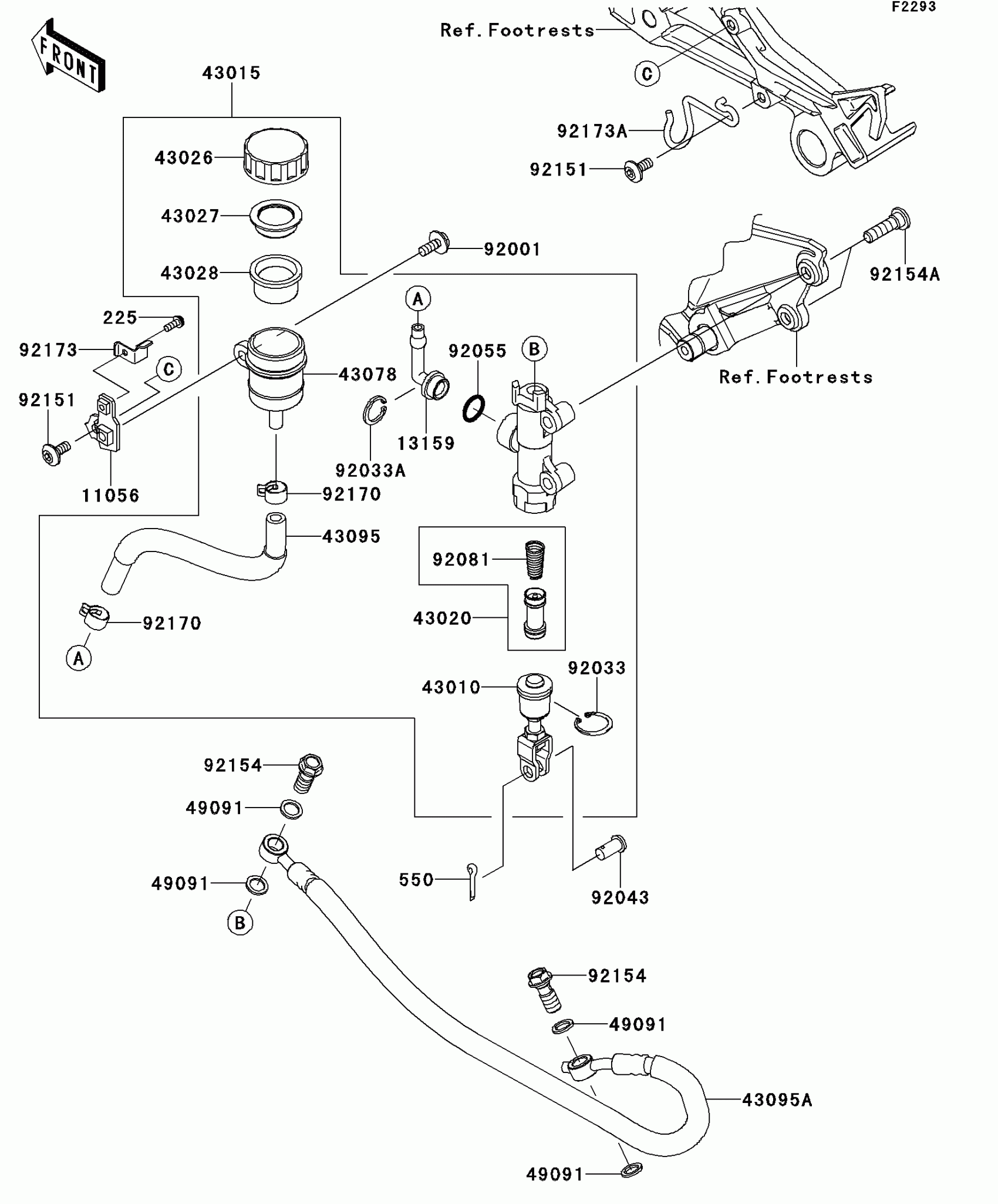

2014 Kawasaki Ninja® 300 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2306

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0010

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0573

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-0009

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1053

1
Out of stock

43028

DIAPHRAGM

43028-1065

1
Out of stock

43078

RESERVOIR

43078-0040

1
Out of stock

43095

HOSE-BRAKE

43095-0765

1
Out of stock

43095A

HOSE-BRAKE,RR,520MM

43095-0767

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,W/P,6X16

92001-1860

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92043

PIN,8X17

92043-0104

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-0843

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1
Out of stock

92173

CLAMP,RESERVOIR TANK CAP

92173-0028

1
Out of stock

92173A

CLAMP

92173-0936

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
