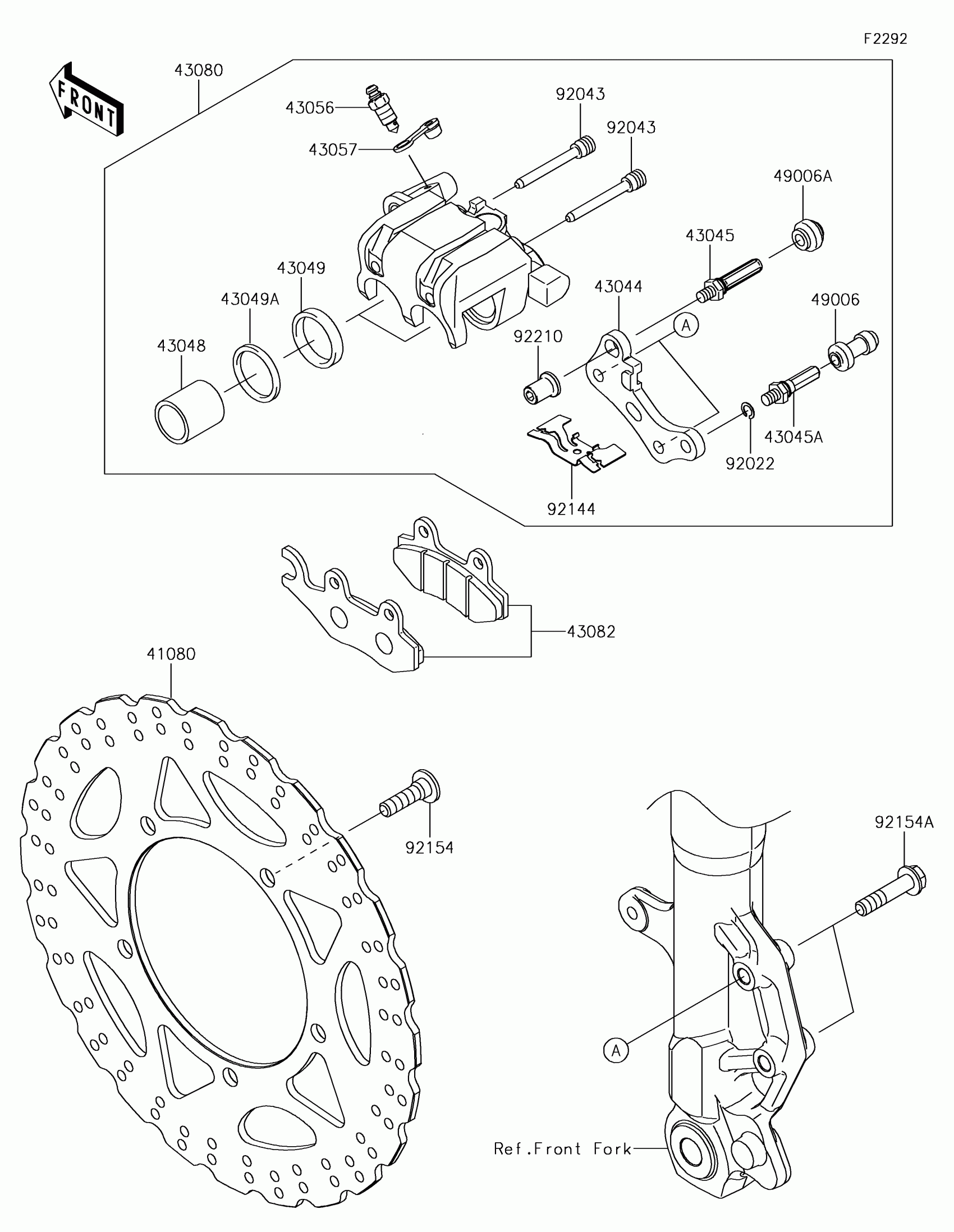

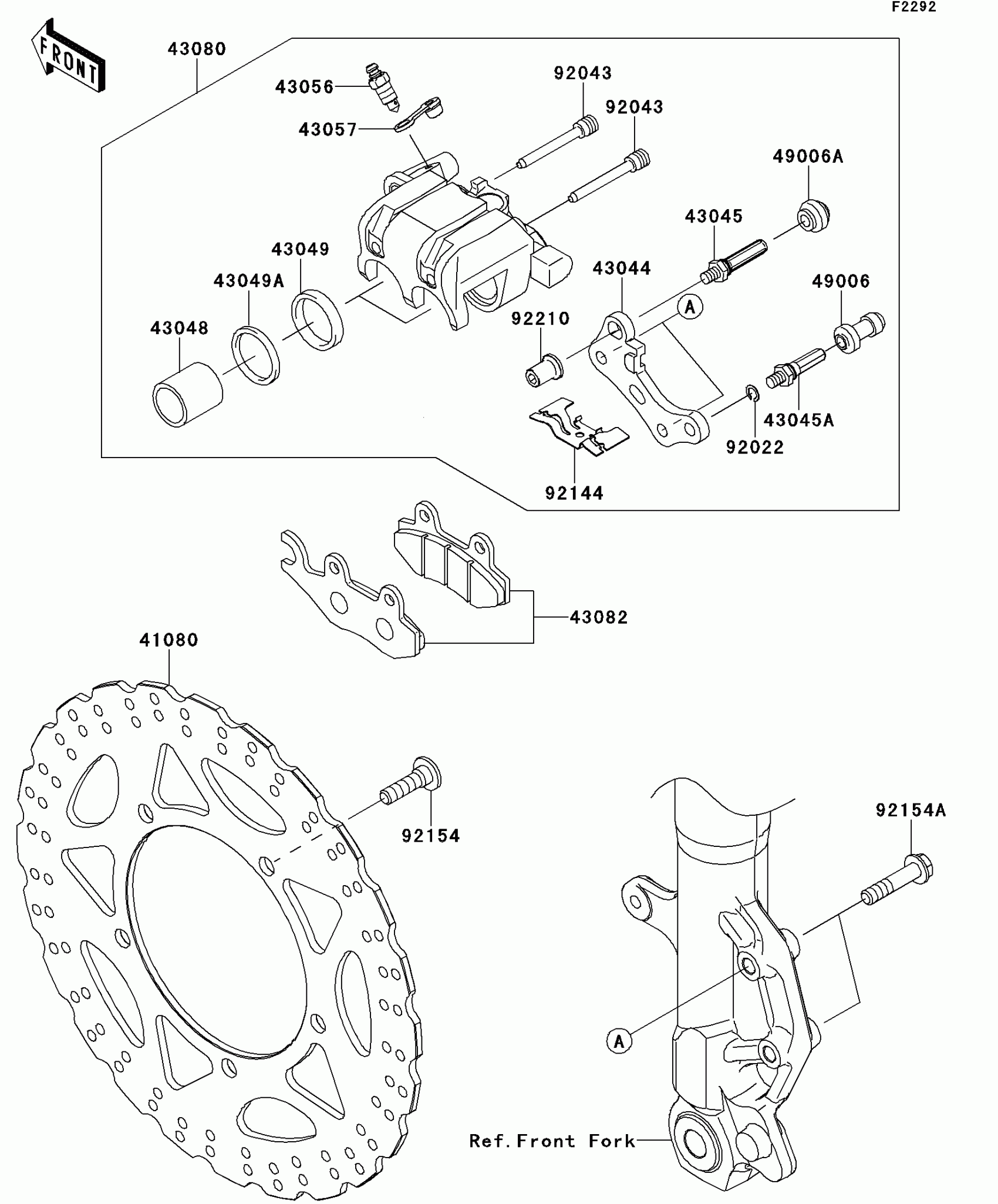

Kawasaki Ninja® 300 Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK

41080-0578-11H

$465.19

43044

HOLDER-COMP-CALIPER

43044-1112

$120.68

43045

SHAFT-CALIPER

43045-0004

$21.58

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0125-25S

$393.37

43082

PAD-ASSY-BRAKE

43082-0128

$41.69

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,8X30

92154-0844

$3.13

92154A

BOLT

92154-1033

$4.19

92210

NUT

92210-0615

$5.46
