2014 Kawasaki Ninja® 300 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

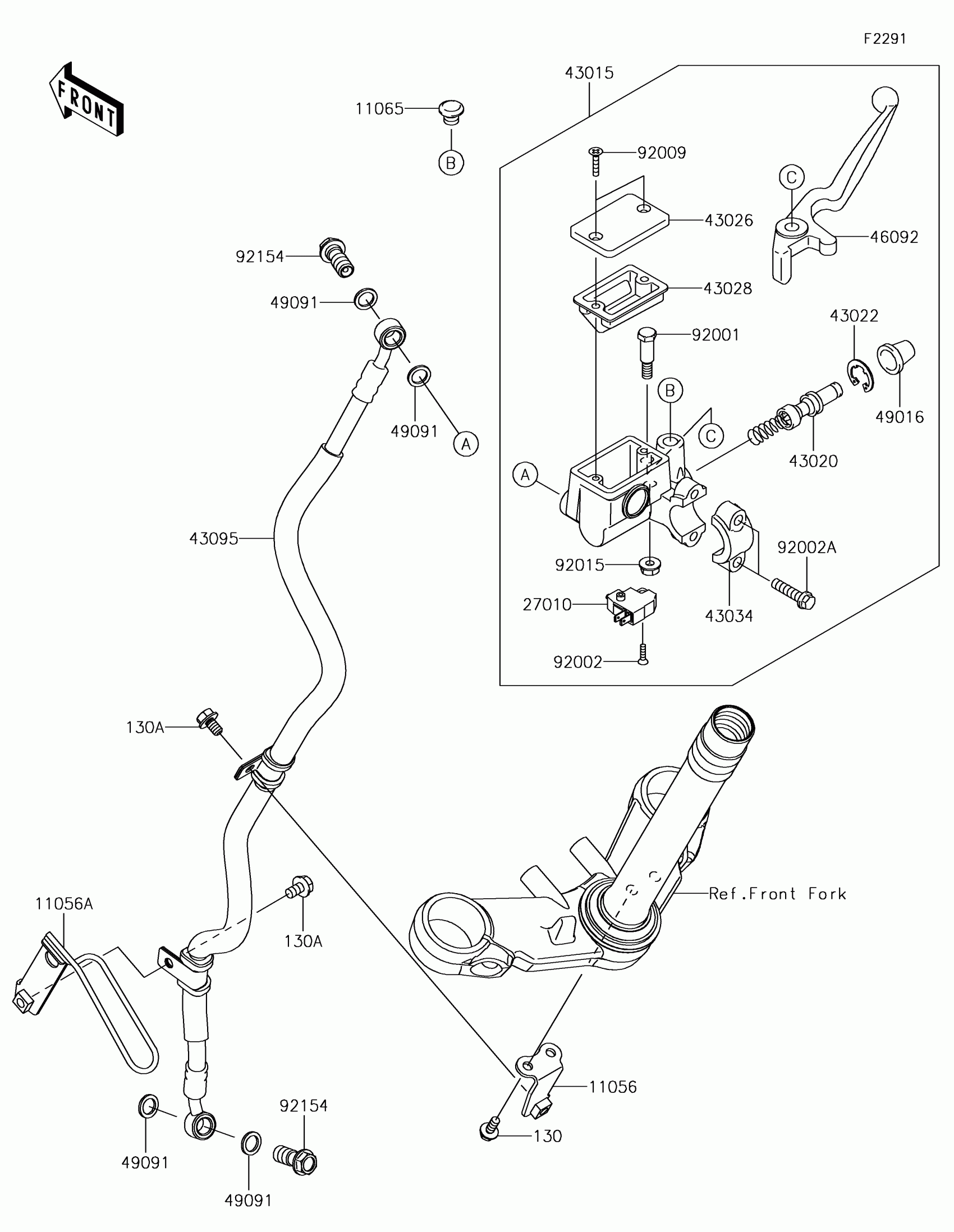

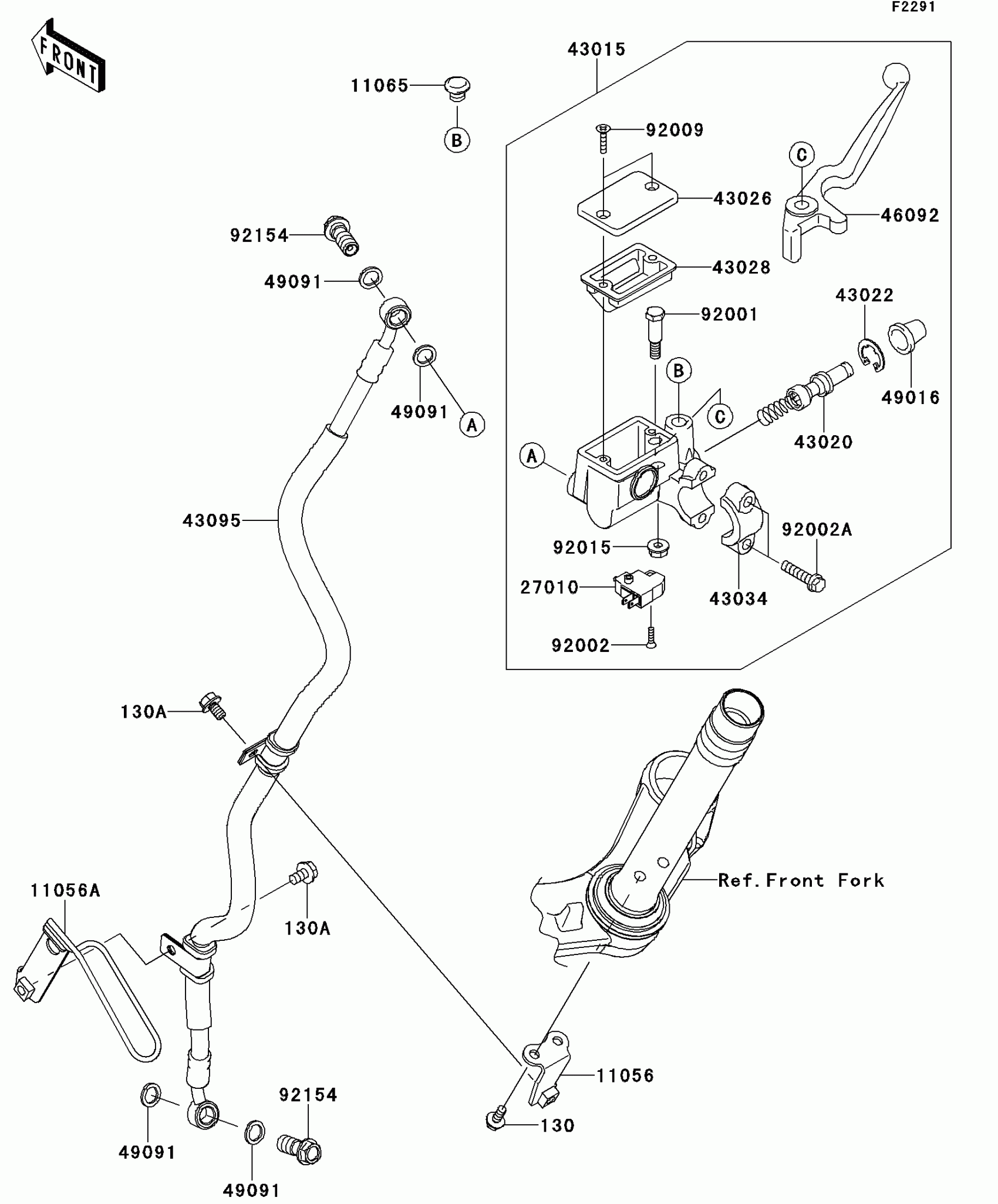

2014 Kawasaki Ninja® 300 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2214

1

$4.34

In stock

11056A

BRACKET

11056-2300

1

$9.19

In stock

11065

CAP,DUMMY

11065-0218

1

$4.44

In stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0110

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1095

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1074

1

$23.33

In stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

1

$15.29

In stock

43095

HOSE-BRAKE,FR,L=731

43095-0770

1

$81.02

In stock

46092

1

$12.90

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92001

1

$11.26

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1

$4.68

In stock

130

BOLT-FLANGED,5X12

130BB0512

1

$1.64

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock
