2013 Kawasaki Ninja® 300 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2013 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

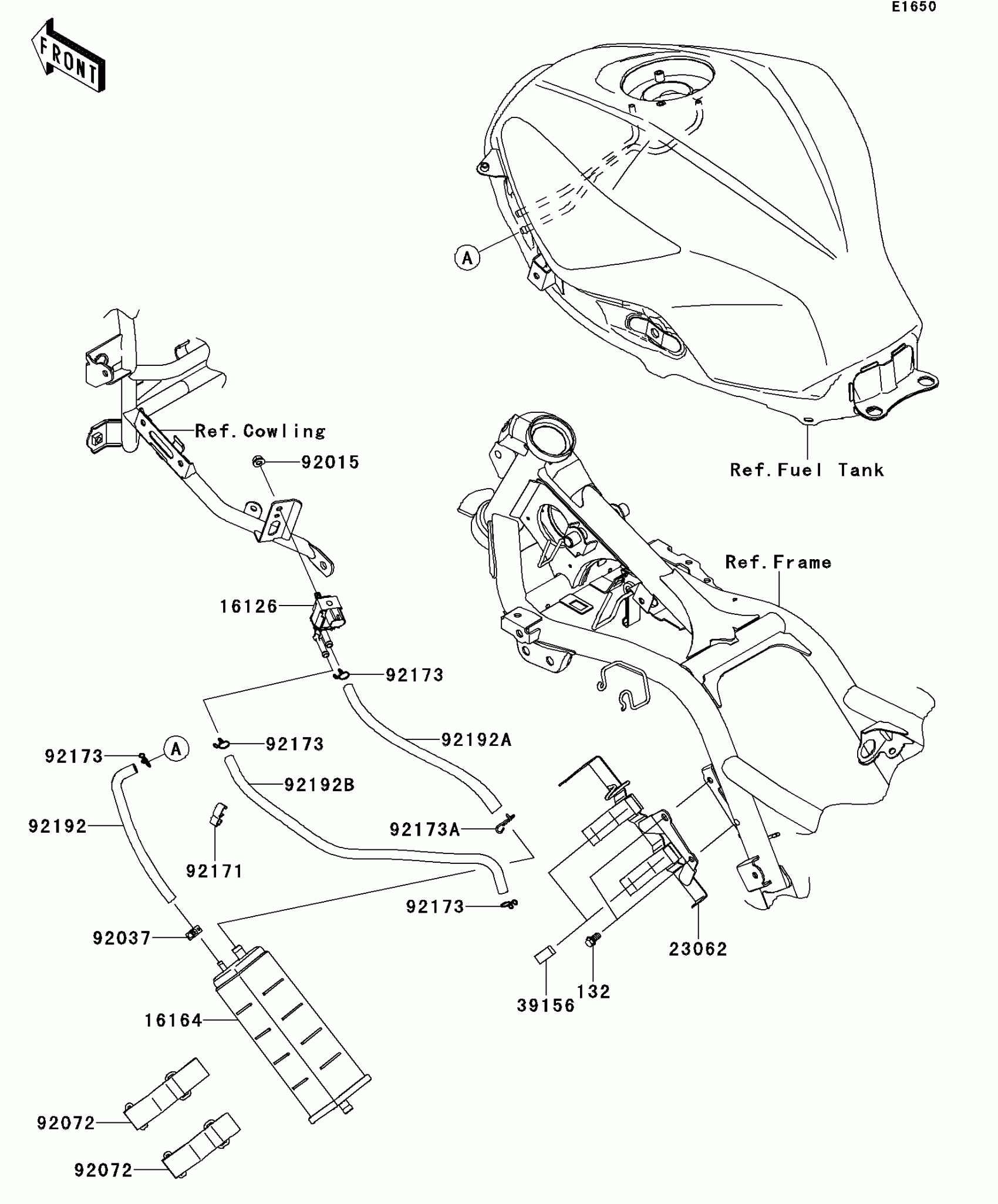

2013 Kawasaki Ninja® 300 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0009

1
Out of stock

23062

BRACKET-COMP,CANISTER

23062-0742

1
Out of stock

39156

PAD,10X30X4

39156-0927

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1601

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92171

CLAMP

92171-1184

1
Out of stock

92173

CLAMP

92173-0050

1
Out of stock

92173A

CLAMP,14MM

92173-0192

1
Out of stock

92192

TUBE,TANK-CANISTER,BLUE

92192-1098

1
Out of stock

92192A

TUBE,CANISTER-VALVE,GREEN

92192-1099

1
Out of stock

92192B

TUBE,VALVE-THB,GREEN

92192-1101

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock
