2014 Kawasaki Ninja® 300 ABS Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

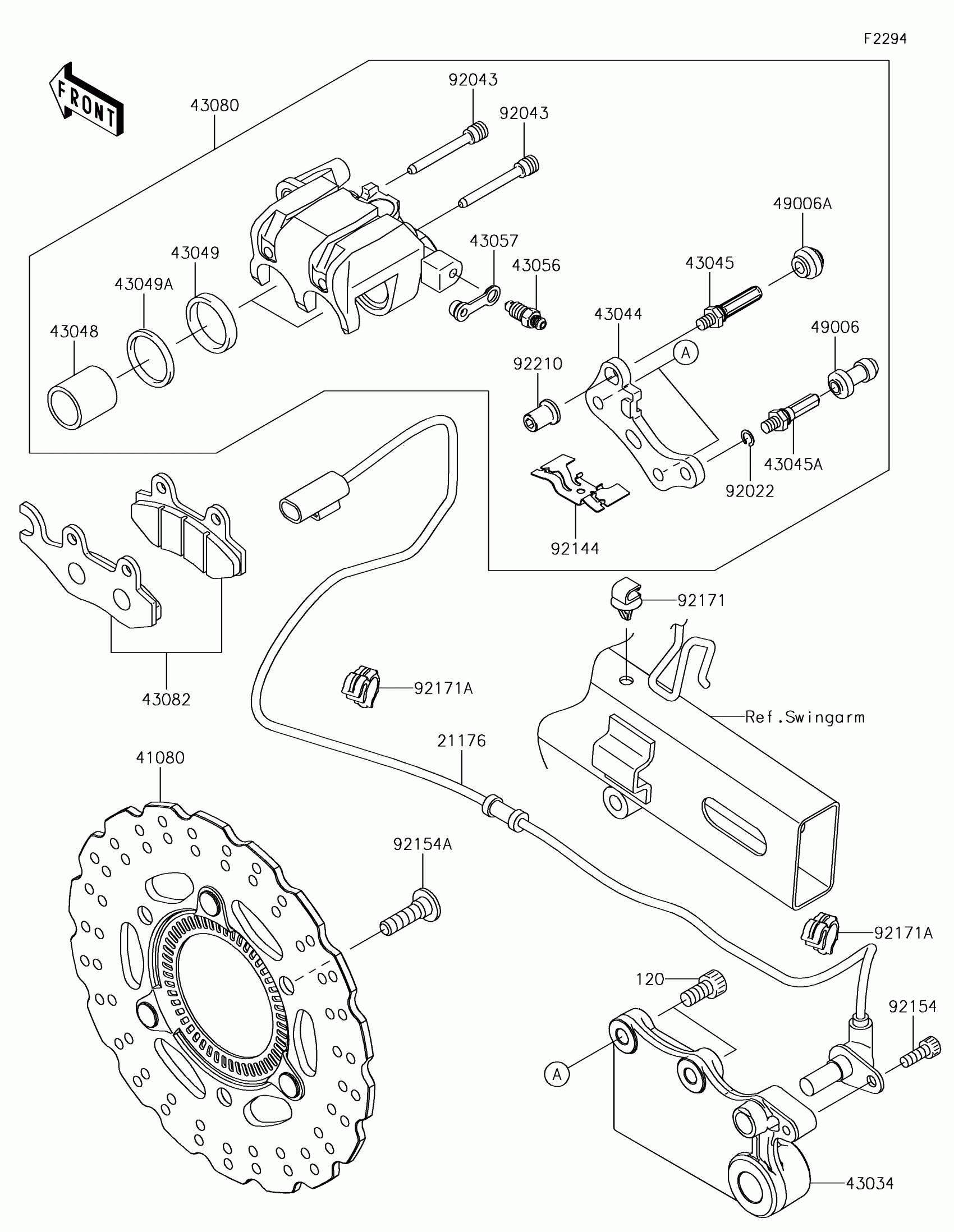

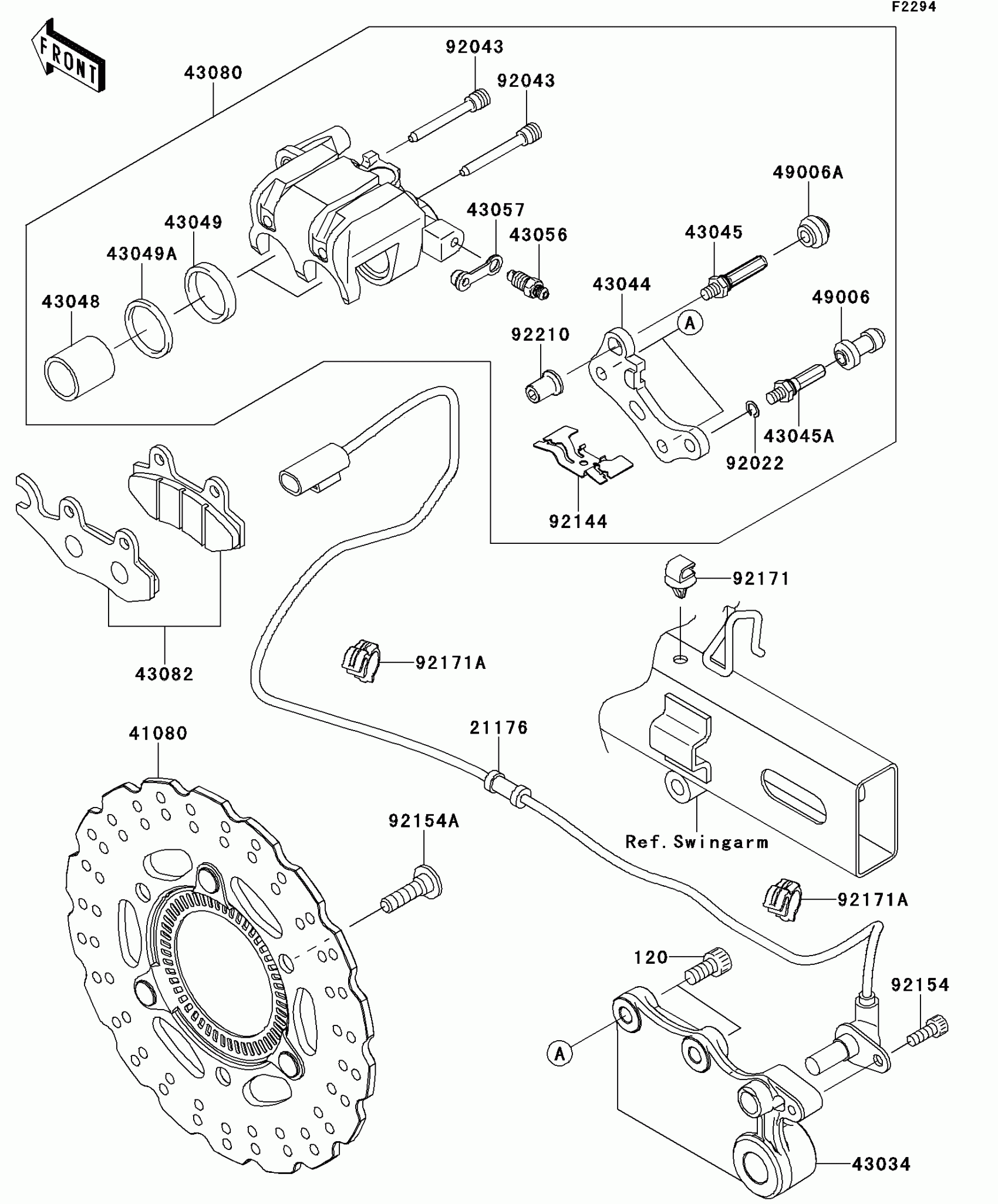

2014 Kawasaki Ninja® 300 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,ABS,RR

21176-0751

1
Out of stock

41080

DISC,RR,BLACK

41080-0592-11H

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0095

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1112

1
Out of stock

43045

SHAFT-CALIPER

43045-0004

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1066

1
Out of stock

43049

PACKING

43049-1063

1
Out of stock

43049A

PACKING

43049-1064

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0126-25S

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0128

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-0844

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1703

1
Out of stock

92210

NUT

92210-0615

1
Out of stock

120

BOLT-SOCKET,8X16

120CA0816

1
Out of stock
