2014 Kawasaki Ninja® 300 ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

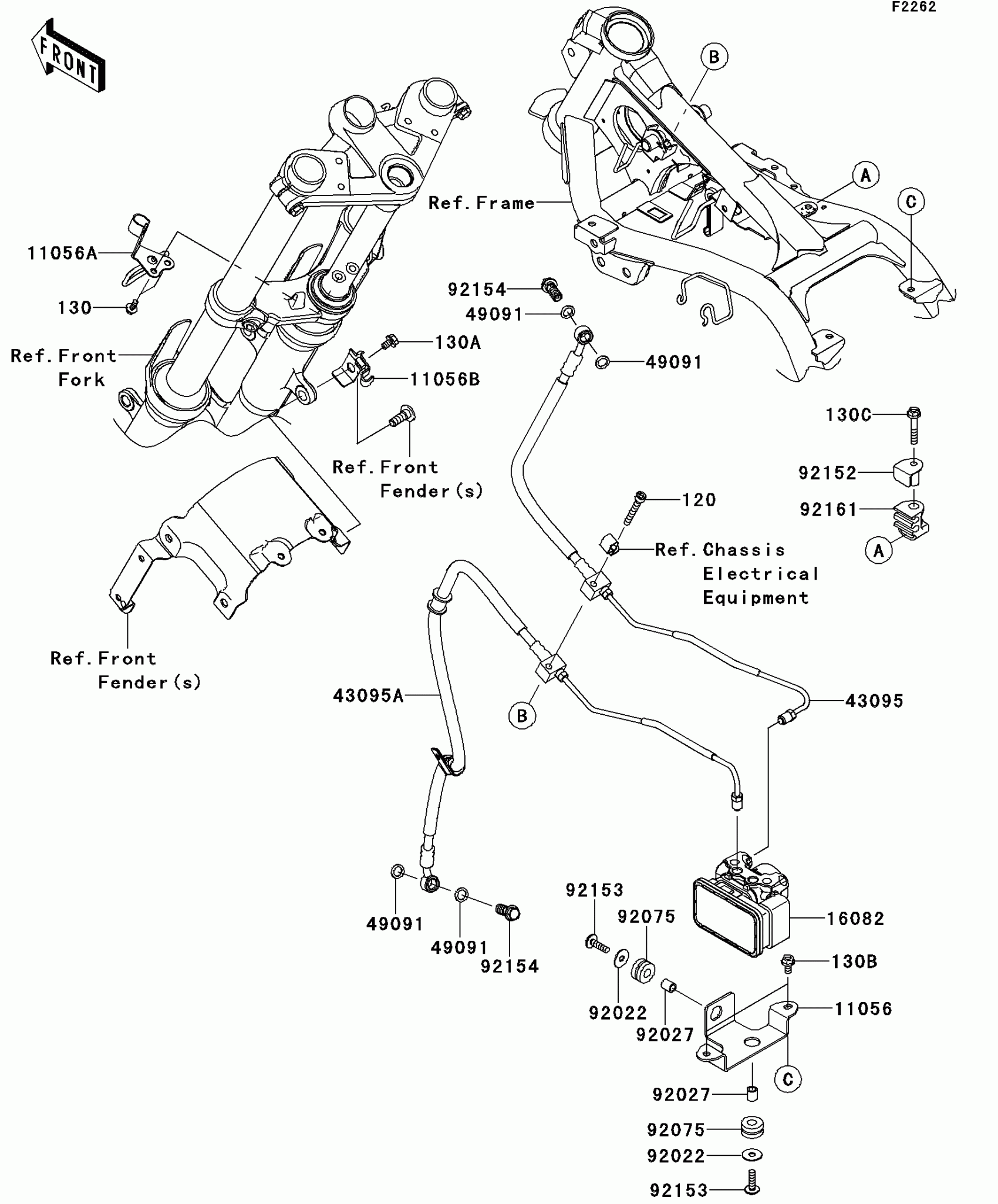

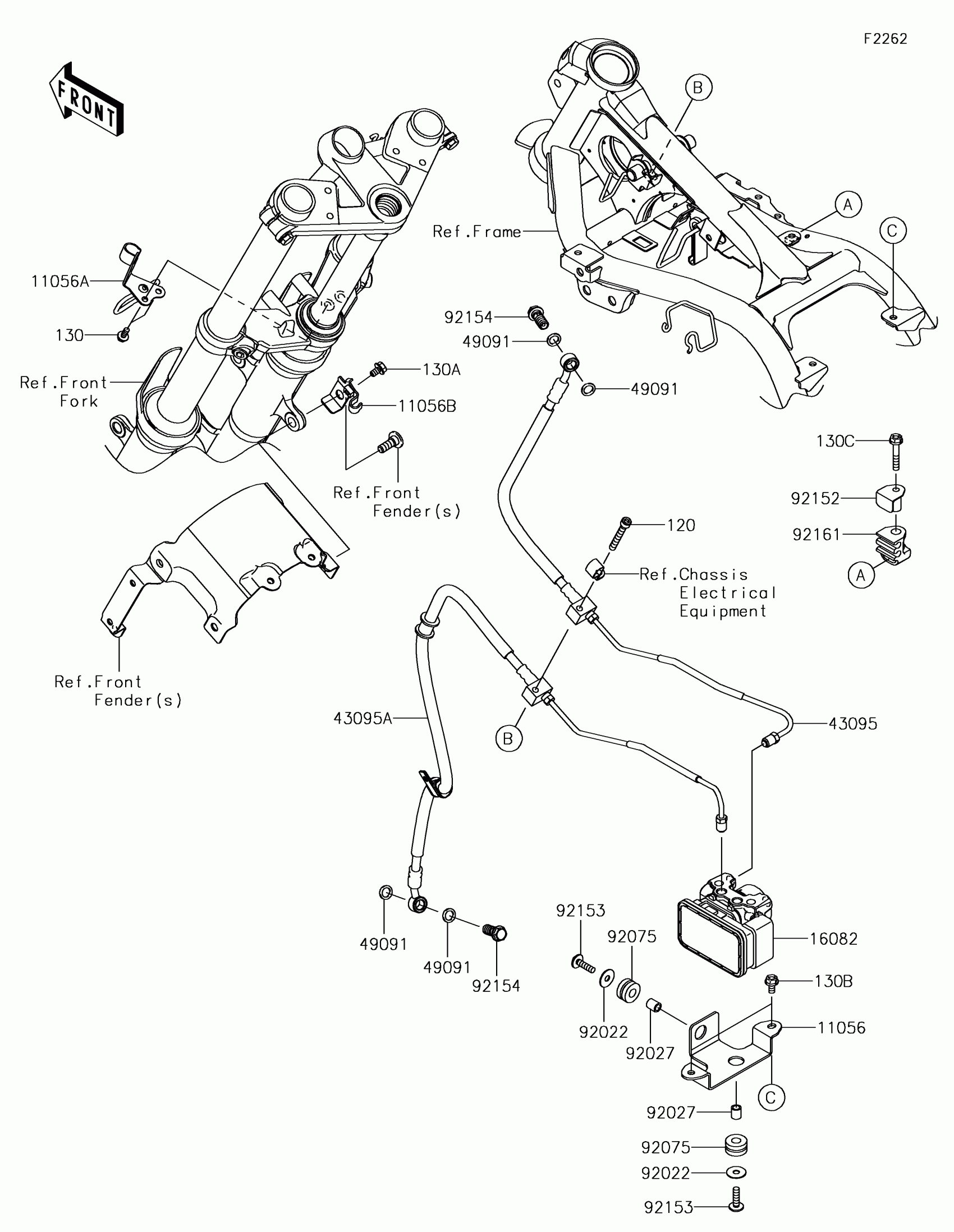

2014 Kawasaki Ninja® 300 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1815

1
Out of stock

11056A

BRACKET

11056-2225

1
Out of stock

11056B

BRACKET

11056-2302

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,WET

16082-0715

1
Out of stock

43095

HOSE-BRAKE,FR M/CYLINDER

43095-0693

1
Out of stock

43095A

HOSE-BRAKE,FR CALIPER

43095-0771

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92027

COLLAR,6.8X10X11.5

92027-1210

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR

92152-0409

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1
Out of stock

92161

DAMPER,BRAKE PIPE

92161-0347

1
Out of stock

120

BOLT-SOCKET,6X45

120CA0645

1
Out of stock

130

BOLT-FLANGED,5X12

130BB0512

1

$1.64

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130B

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130C

BOLT-FLANGED,6X35

130BB0635

1

$4.90

In stock
