2014 Kawasaki Ninja® 300 ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

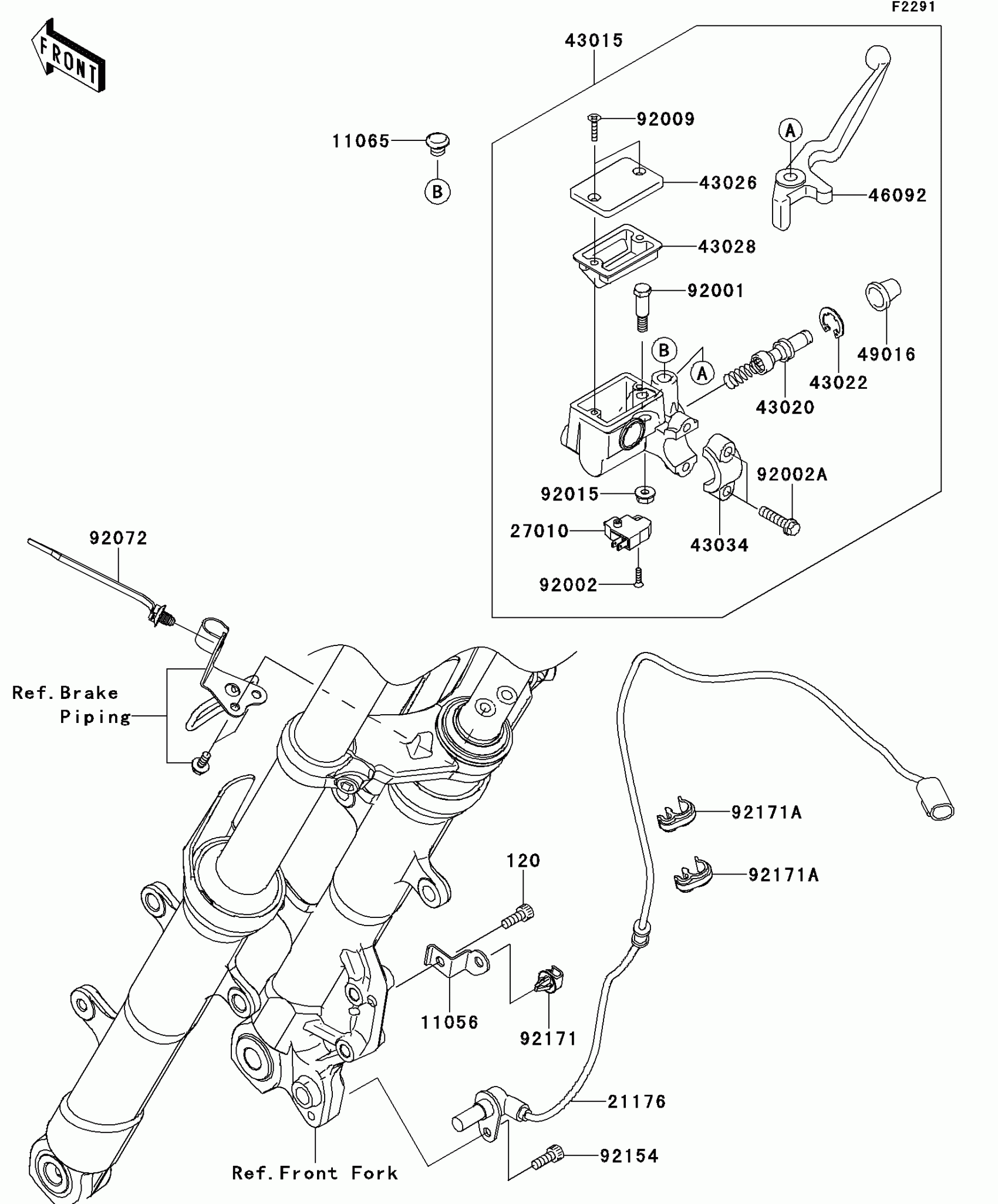

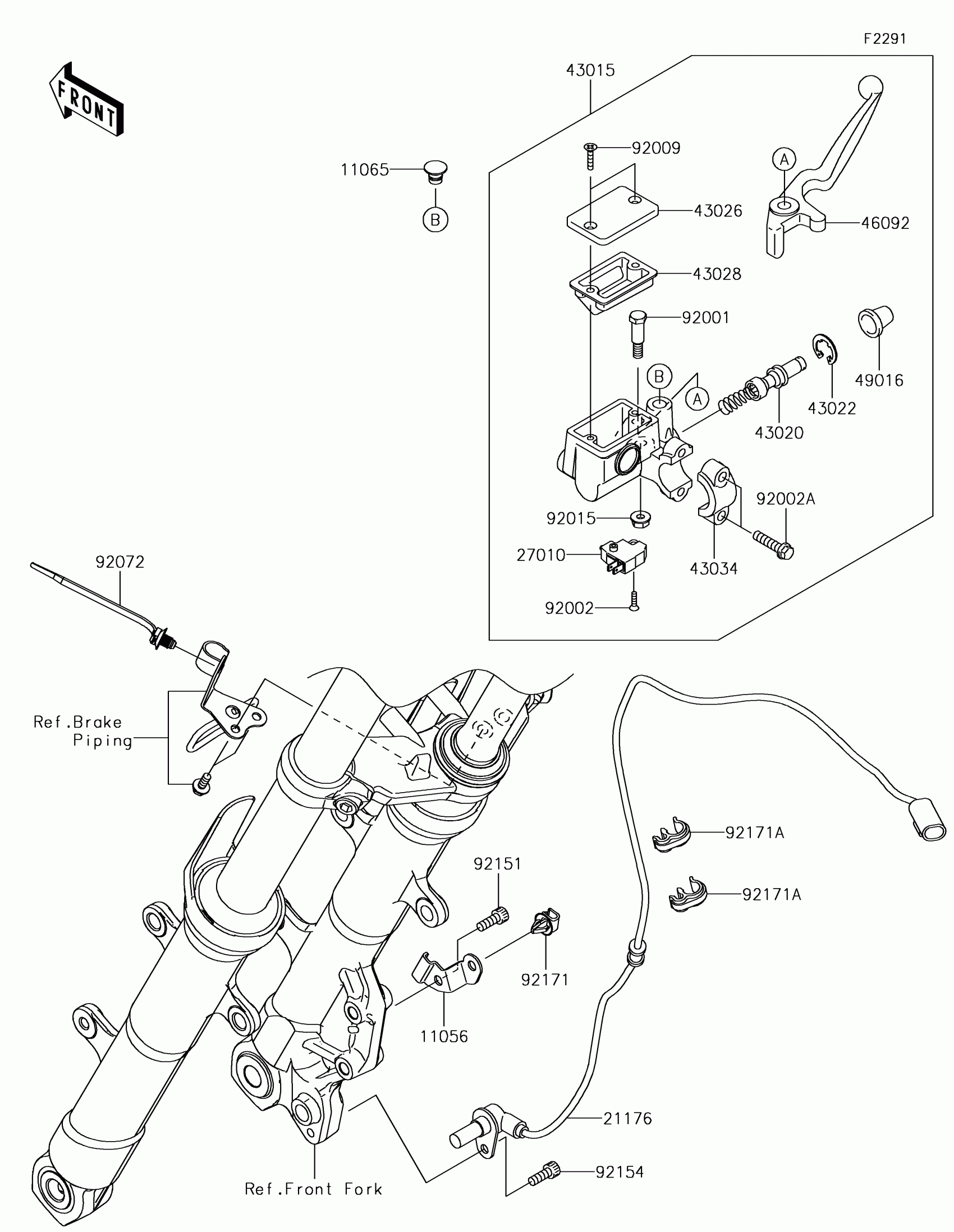

2014 Kawasaki Ninja® 300 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1816

1
Out of stock

11065

CAP,DUMMY

11065-0218

1
Out of stock

21176

SENSOR,ABS,FR

21176-0750

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0110

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1095

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0028

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

120

BOLT-SOCKET,6X16

120CA0616

1
Out of stock
