1987 Kawasaki Ninja® 250R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

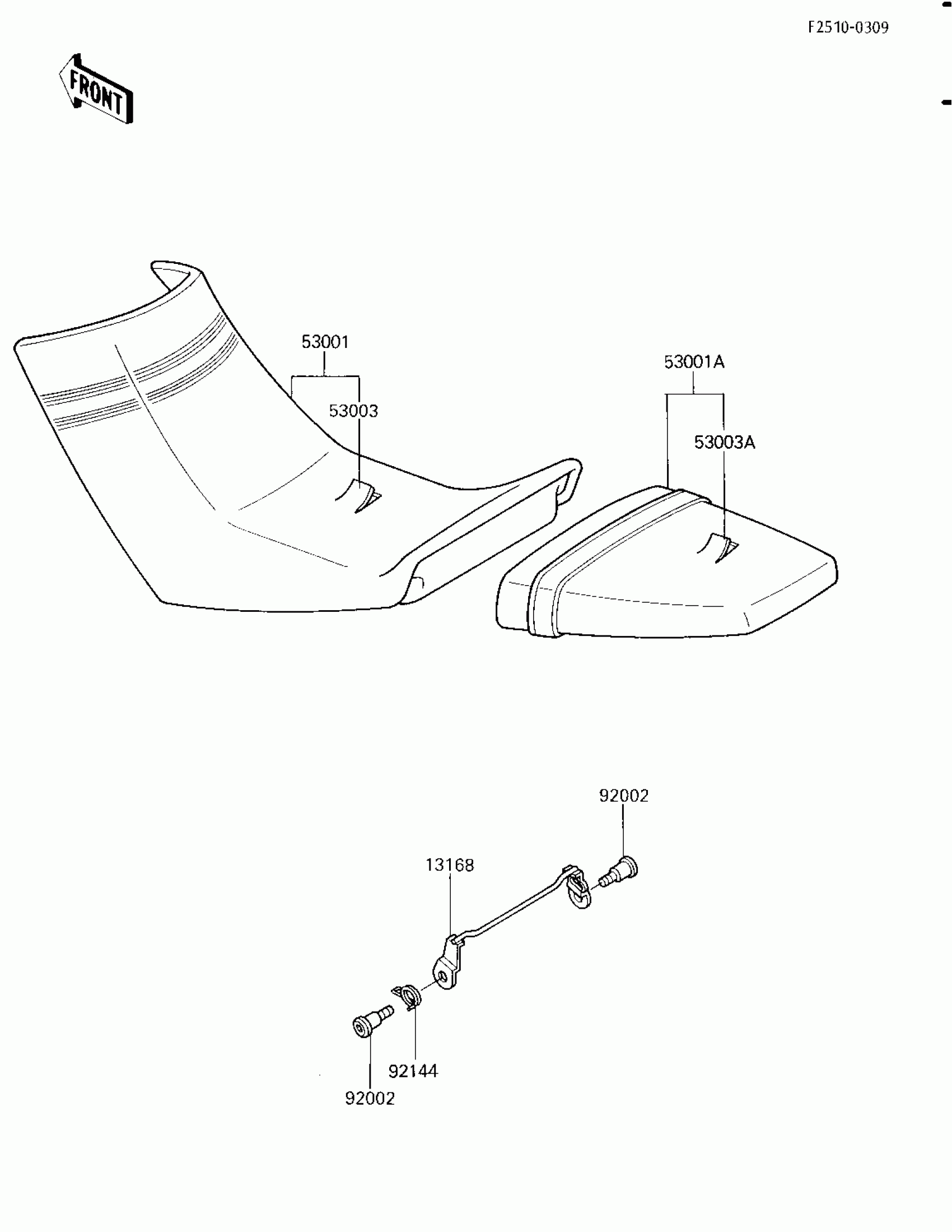

1987 Kawasaki Ninja® 250R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,SEAT LOCK

13168-1319

1
Out of stock

53001

SEAT-ASSY,FR,RED

53001-1462-N4

1

$281.60

In stock

53001A

SEAT-ASSY,RR,W/BAND,R

53001-1488-N4

1

$222.23

In stock

53003

LEATHER,FRONT SEAT,RE

53003-1170-N4

1

$177.08

In stock

53003A

LEATHER,REAR SEAT,RED

53003-1171-N4

1

$75.29

In stock

92002

BOLT,SOCKET,6MM

92002-1616

1
Out of stock

92144

SPRING,SEAT LOCK

92144-1060

1
Out of stock
