1990 Kawasaki Ninja® 250R Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

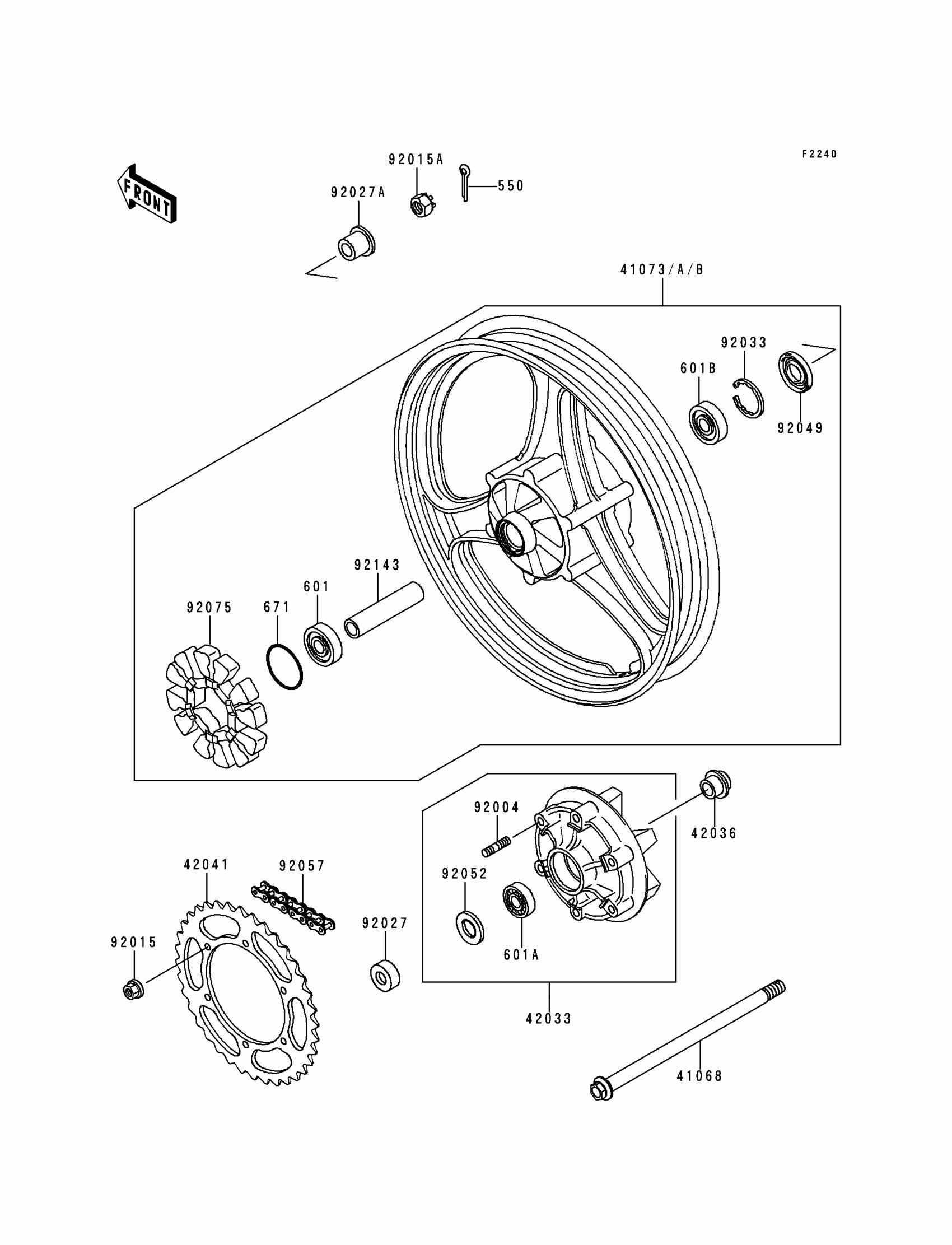

1990 Kawasaki Ninja® 250R Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,TIRE

16126-1140

1
Out of stock

41068

AXLE,RR

41068-1221

1
Out of stock

41073

WHEEL-ASSY,RR,SILVER NO.1

41073-1366-V5

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1107

1
Out of stock

42036

SLEEVE,RR HUB,L=30

42036-1055

1
Out of stock

42041

SPROCKET-HUB,45T

42041-1277

1
Out of stock

92004

STUD,10X19

92004-1111

1
Out of stock

92015

NUT,CASTLE,16MM

42045-014

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92027

COLLAR,RR HUB

92027-1784

1
Out of stock

92027A

COLLAR,RR HUB

92027-1785

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK520MV-OX106L

92057-1260

1
Out of stock

92075

DAMPER,RR HUB SHOCK

92075-1436

1
Out of stock

92143

COLLAR,17.2X25X97

92143-1119

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

671

O RING

671B2550

1
Out of stock
