1987 Kawasaki Ninja® 250R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

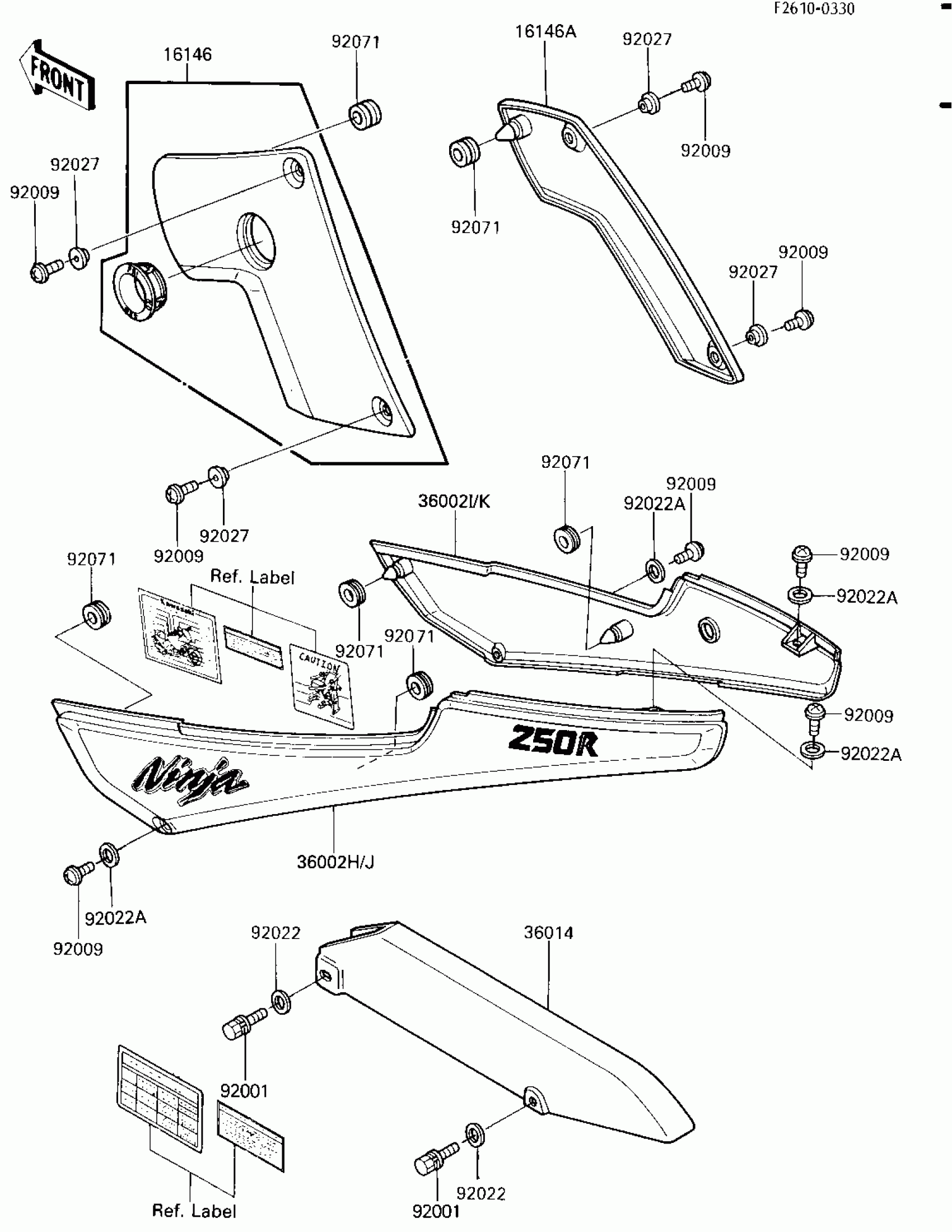

1987 Kawasaki Ninja® 250R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16146

COVER-ASSY,KNEE GRIP,

16146-1065-NB

1
Out of stock

16146A

COVER-ASSY,KNEE GRIP,

16146-1066-NB

1
Out of stock

36002H

COVER-SIDE,LH,EBONY

36002-5267-H8

1
Out of stock

36002I

COVER-SIDE,RH,EBONY

36002-5268-H8

1
Out of stock

36002J

COVER-SIDE,LH,P.WHITE

36002-5269-F1

1
Out of stock

36002K

COVER-SIDE,RH,P.WHITE

36002-5270-F1

1
Out of stock

36014

CASE-CHAIN

36014-1147

1
Out of stock

92001

BOLT,6X14

92001-1782

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022A

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92027

COLLAR

92027-122

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock
