1990 Kawasaki Ninja® 250R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

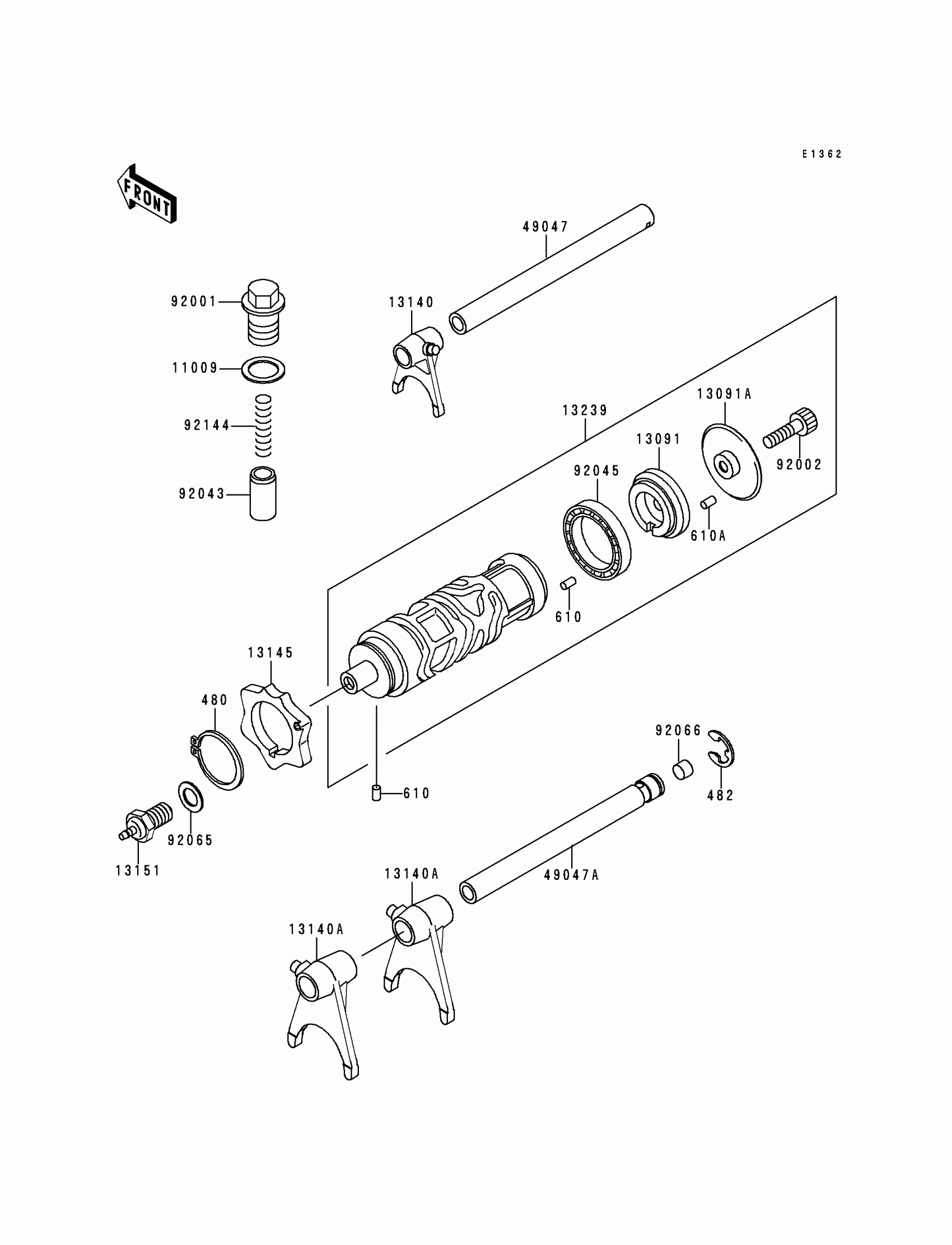

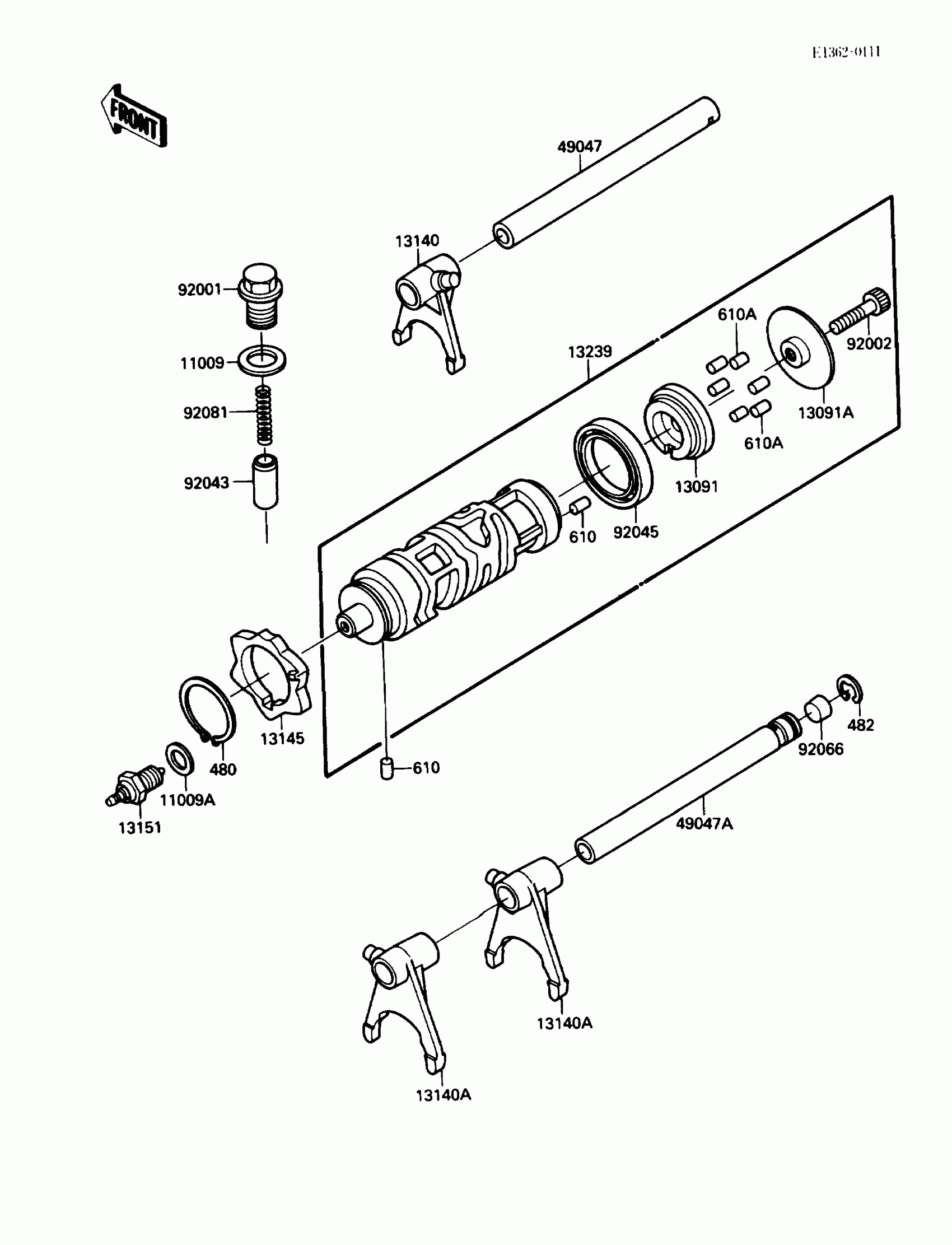

1990 Kawasaki Ninja® 250R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

11009A

GASKET,10.5X16X1

92065-058

1
Out of stock

13091

HOLDER

13091-1417

1
Out of stock

13091A

HOLDER,CHANGE DRUM

13091-1464

1
Out of stock

13140

FORK-SHIFT,IN

13140-1148

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-1149

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1131

1
Out of stock

49047

ROD-SHIFT,IN

49047-1066

1
Out of stock

49047A

ROD-SHIFT,OUT

49047-1067

1
Out of stock

92001

BOLT,NEUTRAL POSITION

92001-1037

1
Out of stock

92002

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

92043

PIN

92043-076

1
Out of stock

92045

BEARING-BALL,6806

92045-1152

1
Out of stock

92066

PLUG

92066-1246

1
Out of stock

92081

SPRING

92081-112

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

610A

ROLLER,4X8

610A0408

1
Out of stock
